INTERIOR PANEL MPX-430VS

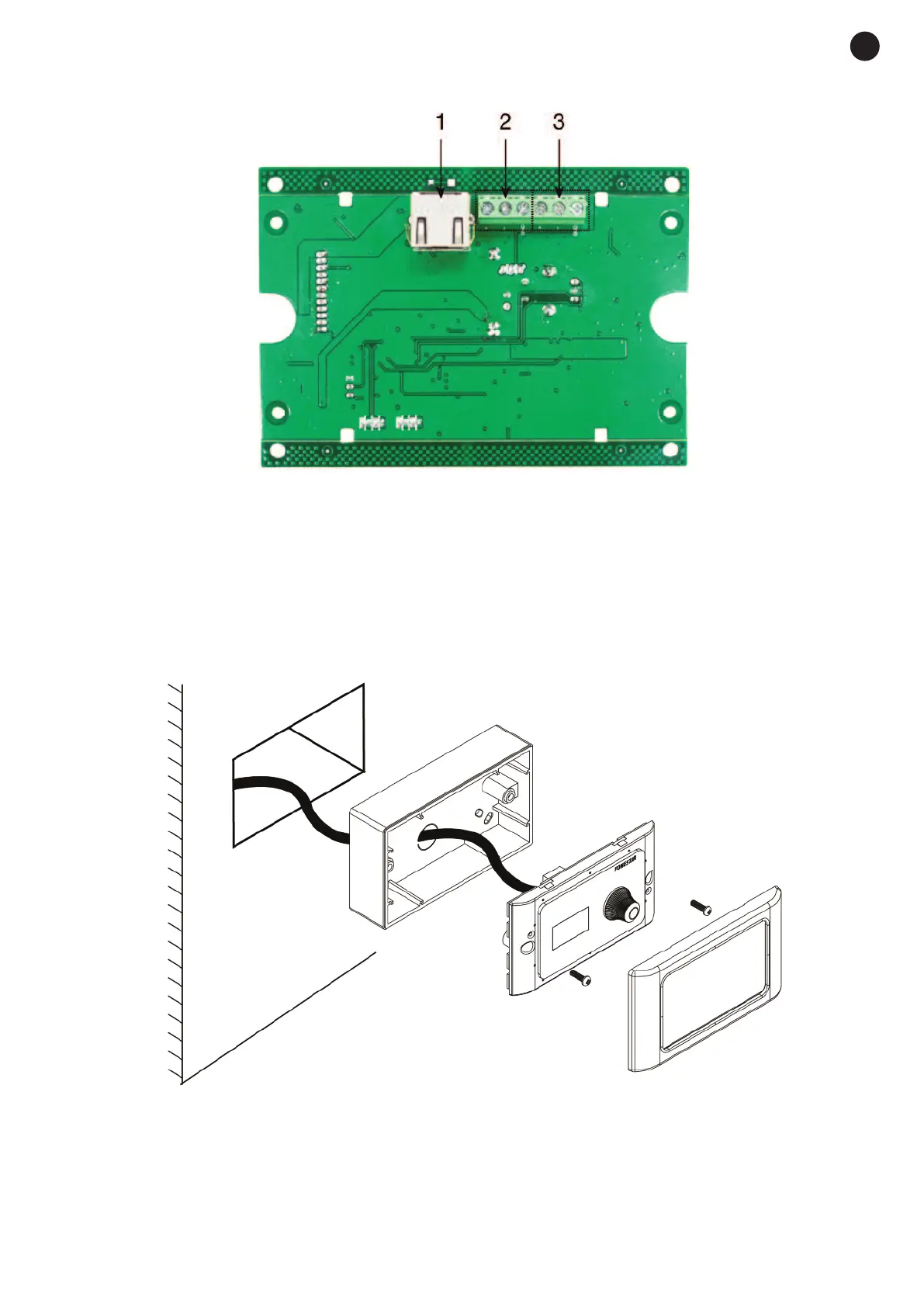

1.- RD port for connection to MPX-4088 matrix. RJ-45 connector.
2.- Euroblock connection terminals, corresponding to the output channel 10 or 12.
3.- Euroblock connection terminals, corresponding to the output channel 9 or 11.
INSTALLATION
- 23 -
