2.1 UNIT DIMENSIONS

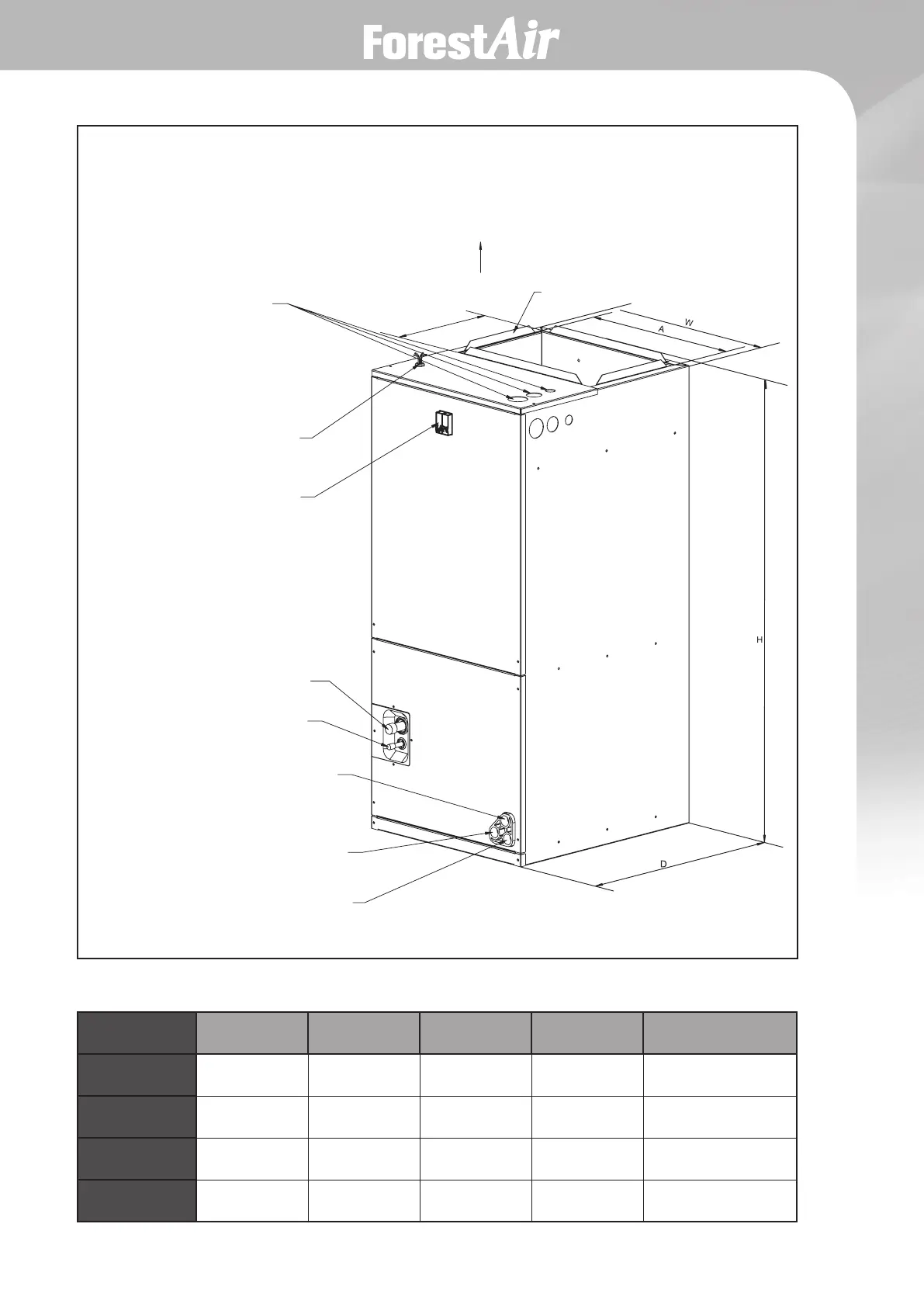

FIG. 1 DIMENSIONS
SUPPLY AIR
FLANGES ARE PROVIDED
FOR FIELD INSTALLATION
BREAKER SWITCH
(FOR ELECTRIC HEATER ONLY)
LIQUID COPPER LINE CONNECTION
AUXILIARY DRAIN CONNCECTION
19 mm (¾ in) female pipe thread (NPT)
AUXILIARY DRAIN CONNECTION
19 mm (¾ in) female pipe thread (NPT)
PRIMARY DRAIN CONNECTION
19 mm (¾ in) female pipe thread (NPT)
UPFLOW UNIT SHOWN.
UNIT MAY BE INSTALLED UPFLOW, DOWNFLOW,
HORIZONTAL RIGHT, OR LEFT AIR SUPPLY.
NOTE: 63.5 CM (25") CLEARANCE IS REQUIRED IN THE FRONT
OF THE UNIT FOR FILTER AND COIL MAINTENANCE.
VAPOR COPPER LINE CONNECTION
LOW VOLTAGE CONNECTION
ELECTRICAL CONNECTIORS
MAY EXIT FROM THE TOP OR EITHER SIDE
HIGH VOLTAGE CONNECTIONS
22.23 mm, 9.12 mm & 18.26 mm knock outs
(7/8",1-23/64", 1-23/32")
Installation Manual
DIMENSIONAL DATA
MODEL "H" "W" "D" "A"
UNIT WEIGHT /
SHIPPING WEIGHT
24
1050 mm
(41 ⅜ in)
460 mm
(18 ⅛ in)
520 mm
(20 ½ in)
456 mm
(16 in)
48 kg / 54 kg
(106 lb / 119 lb)
36
1180 mm
(46 ½ in)
500 mm
(19 ⅝ in)
550 mm
(21 ⅝ in)
456 mm
(18 in)
64 / 71 kg
(141 lb /156 lb)
48
1385 mm
(54 ½ in)
560 mm
(22 in)
610 mm
(24 in)
496 mm
(19 ½ in)
78 kg / 85 kg
(172 lb / 187 lb)
60
1385 mm
(54 ½ in)
560 mm
(22 in)
610 mm
(24 in)
496 mm
(19 ½ in)
78 kg / 85 kg
(172 lb / 187 lb)
262 mm
(10 5/16")
