ForestAir E-Tech Series - PARTS LIST; 24 K;36 K Outdoor Unit Components

18
© Copyright, Sunrise Tradex Corp., 2018

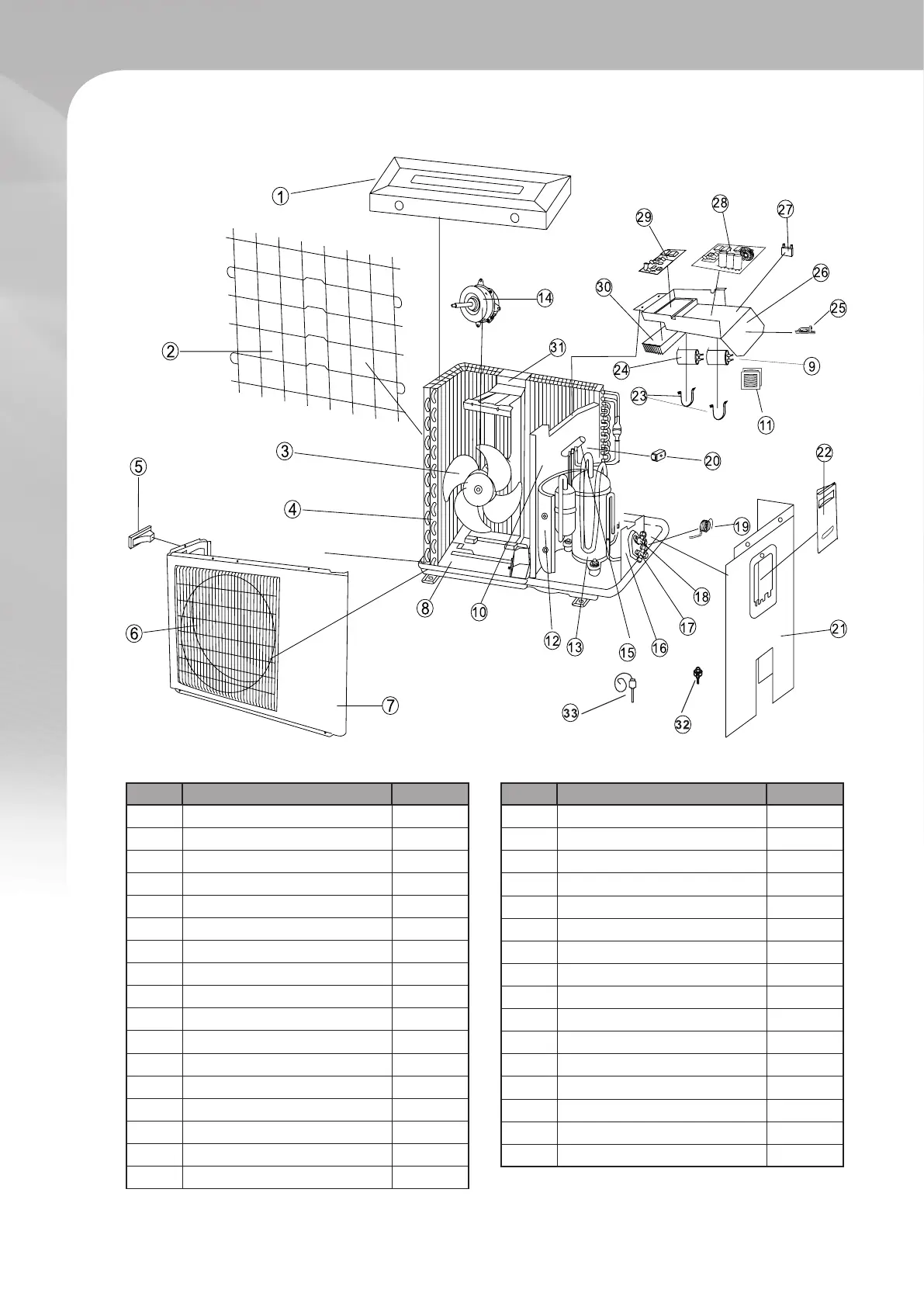

24K / 36K OUTDOOR UNIT
Parts List
NO. PART QUANTITY
1 Top panel 1
2 Back grill 1
3 Outdoor fan 1
4 Condenser 1
5 Handle 1
6 Front grill 1
7 Front panel 1
8 Bottom plate 1
9 Filter capacitor 1
10 Partition board 1
11 Reactor 1
12 Compressor jacket 1
13 Compressor 1
14 Outdoor fan 1
15 Reserving valve 1
16 Front panel 1
17 Gas valve 1
NO. PART QUANTITY
18 Liquid valve 1
19 Capillary 1
20 Rev valve coil 1
21 Side panel 1
22 Access plate 1
23 Capacitor clips 1
24 Compressor capacitor 1
25 Wire clip 1
26 Electric box 1
27 Fan motor capacitor 1
28 Outdoor PCB 1
29 Module 1
30 Radiator 1
31 Motor bracket 1
32 Electronic expansion valve 1
33 High & low pressure switch 1
