FORST TR8D - 5.5 Chipper Diagrams; 5.5.1 Main Covers; 5.5.2 Side Panel

Page 26
5.5 Chipper Diagrams
5.5.1 Main Covers

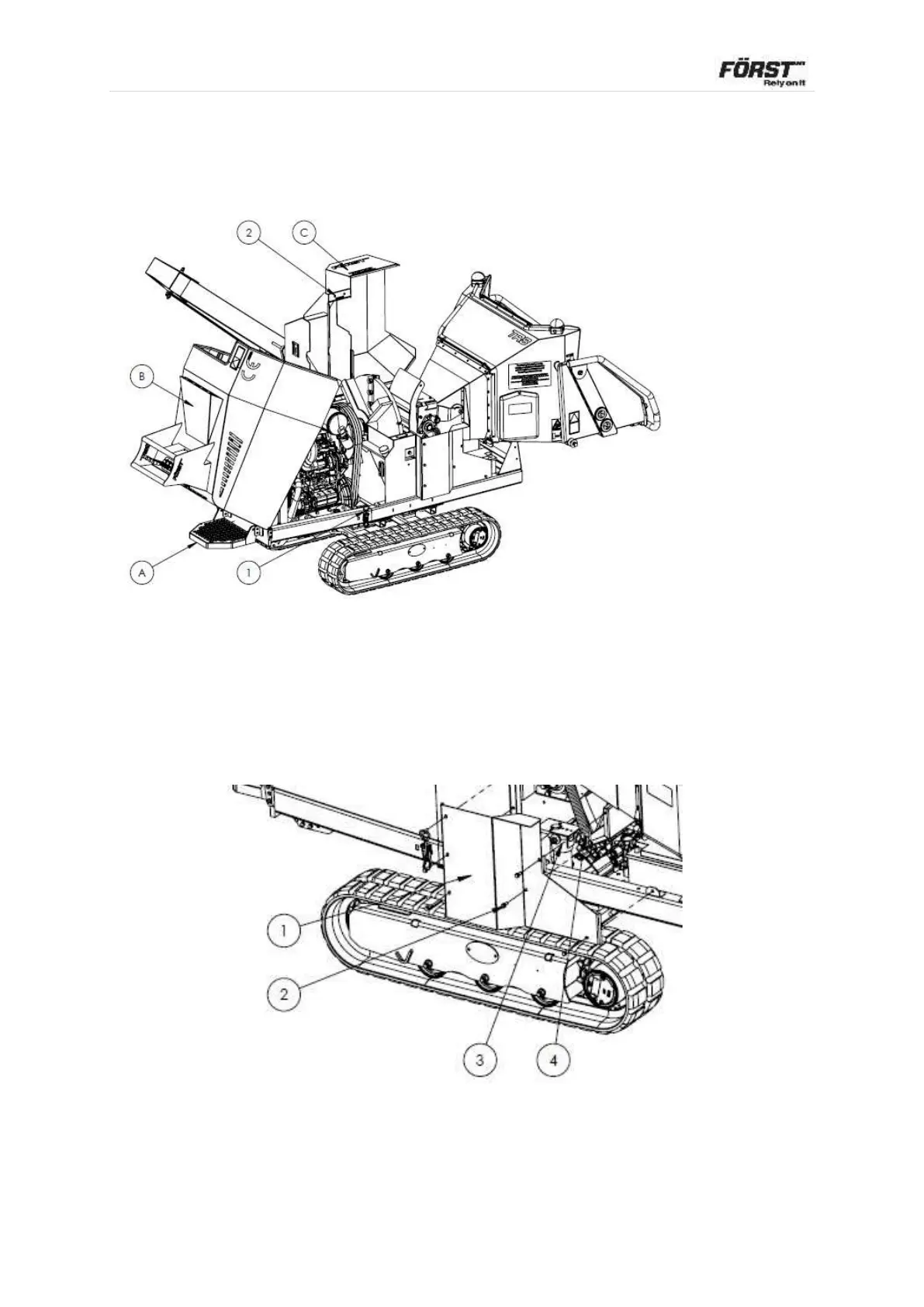

• Opening sequence: ‘A’ then ‘B’ then ‘C’
5.5.2 Side Panel
1. Engine cover latch (x2)
2. Chipping chamber cover bolts (x2 M12)
1. Side panel
2. 6 x Fasteners
3. Hydraulic oil filter
4. Tensioner
