Page 37

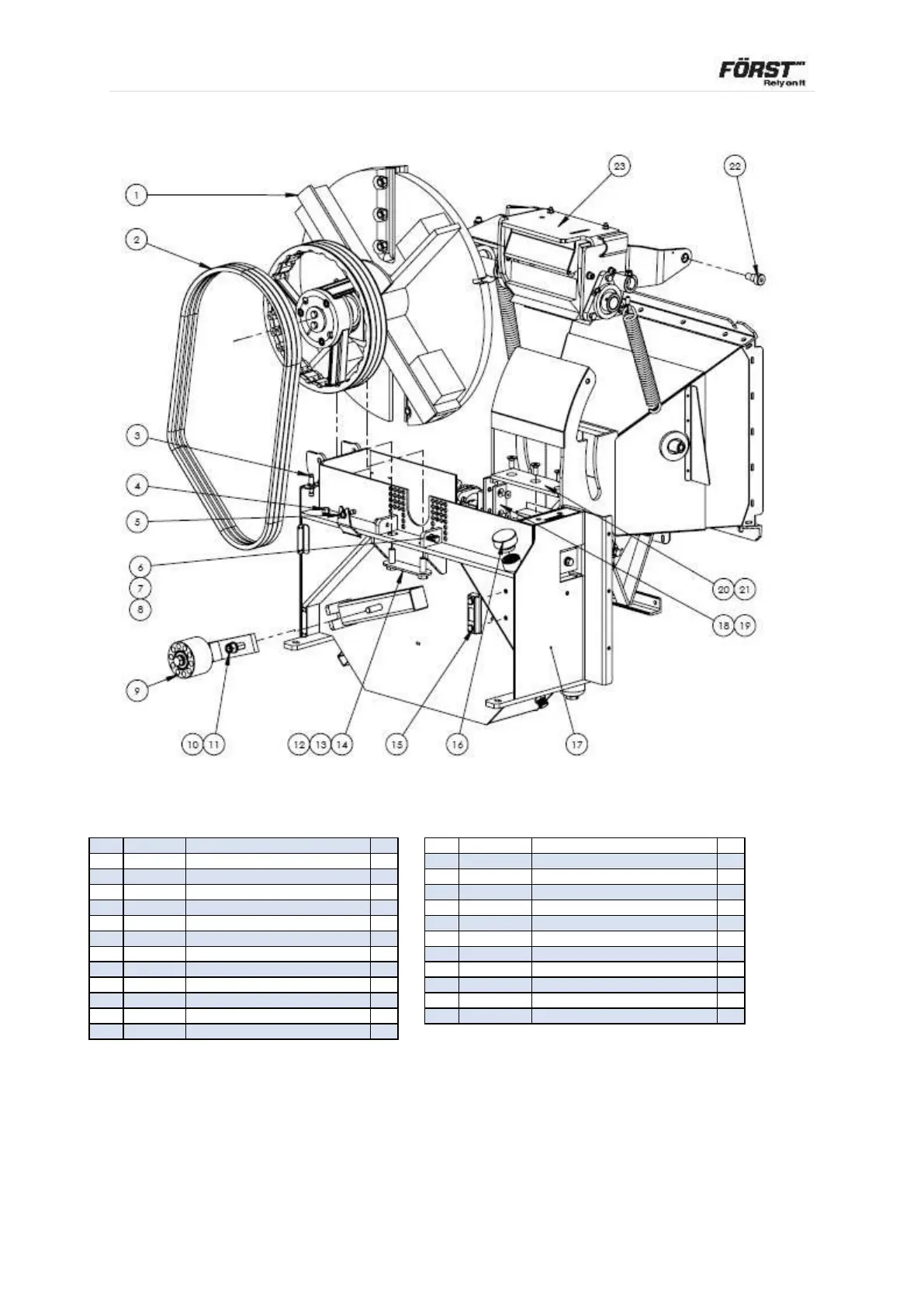

6.2 Chipping Chamber
Item Part No Description Qty Item Part No Description Qty
1 14-A-036 Flywheel Assy 1 13 12-14-006.1 M16 Serrated Washer 4
2 12-10-305 B75 1940 Belt 3 14 14-03-126 Washer Plate 1
3 12-10-071 Inductive proximity sensor kit 1 15 12-24-003 Oil level glass 1
4 12-10-131 Brass vent screw 1/4in BSPP 1 16 12-10-015 Hydraulic oil filler cap - plastic 1
5 12-10-071 Inductive proximity sensor kit 1 17 18-19-015 ST8 50Hp Chipping Chamber 1
6 12-12-509 M10x35 Gr.8.8 Hex Bolt 2 18 12-01-002 Side anvil 1
7 12-13-006 M10 Plain Nut 2 19 12-12-505 M10x20 Gr.10.9 CSK Screw 2
8 12-99-008 M10 Serrated Washer 2 20 14-01-022 Anvil bed plate 1
9 12-A-012 Flywheel belt tensioner assy 1 21 12-12-610 M12x30 Gr.10.9 CSK Screw 3
10 12-14-005 M16 Washer 1 22 12-01-008 M16x14 Should Bolt 2
11 12-13-005 M16 Nyloc 1 23 14-A-008 Top feed roller assy 1
12 12-12-616 M16x45 Gr.10.9 Hex Bolt 4
To Next Page
