Page 47

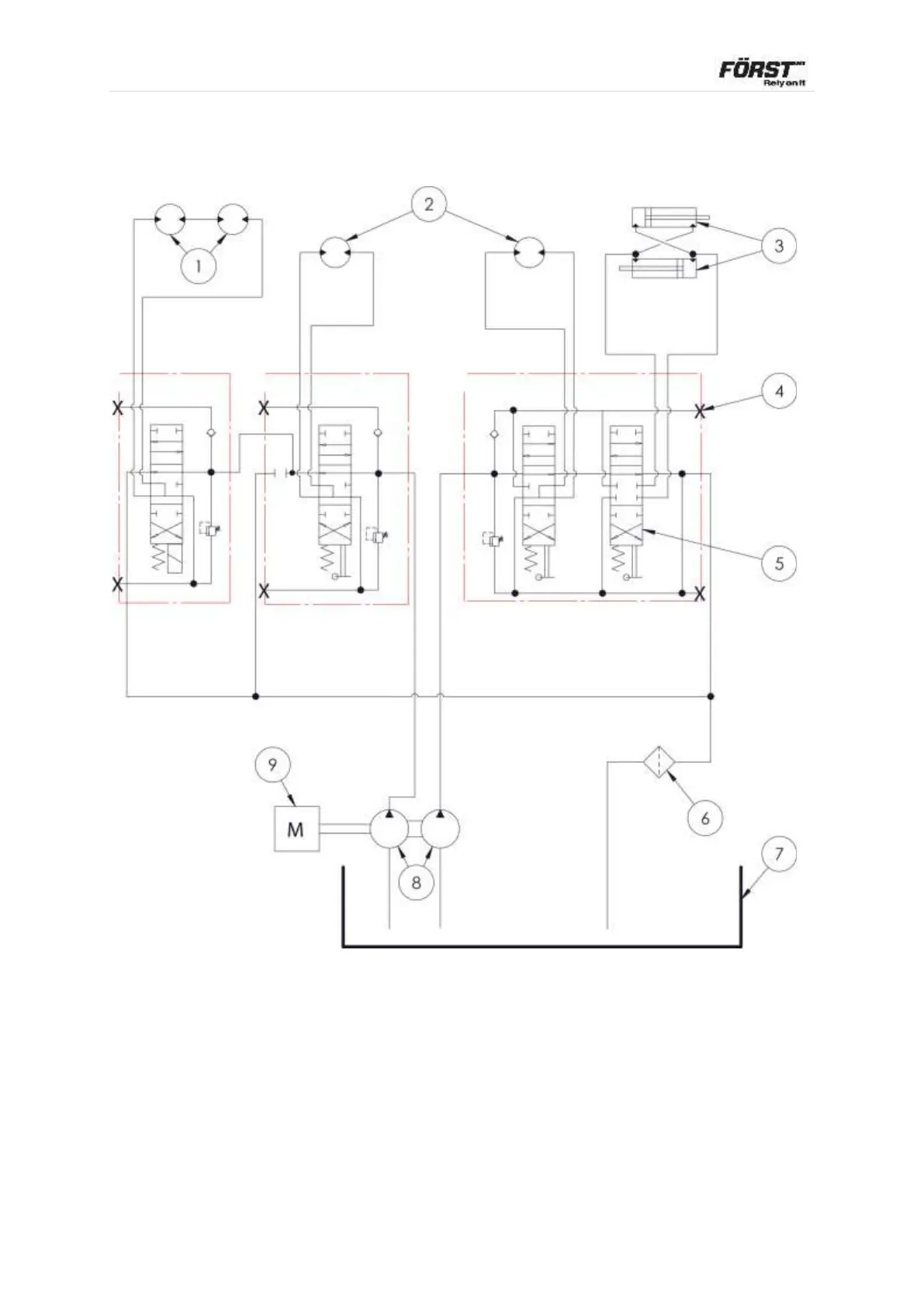

6.12 Hydraulics circuit diagram
1. Feed roller motors
2. Track motors
3. Track width cylinders
(optional)
4. Test points
5. Control valve
6. Return Line Filter
7. Oil tank
8. Tandem hydraulic
pump 11cc/rev
9. Engine
