XR8 Rubber Track Fitting Instructions

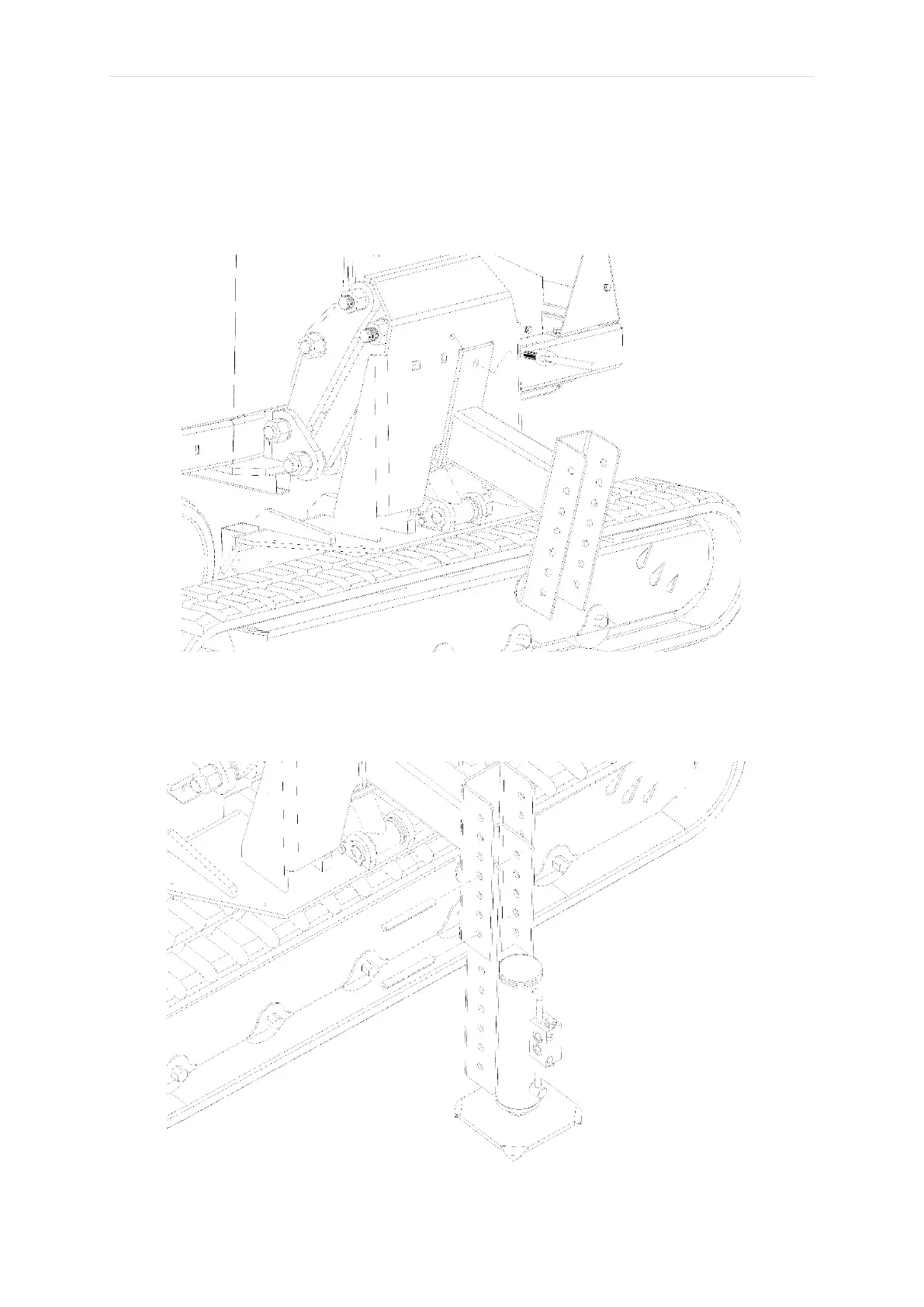

Remove orange side panel on the side on which the track has come off and fit hydraulic jack
bracket as shown below and retain with screw clamp as show below.
Fit hydraulic jack assembly as shown below, adjusting the height and securing with the two
pins as shown and fit the lynch pins to stop the pins falling out.
