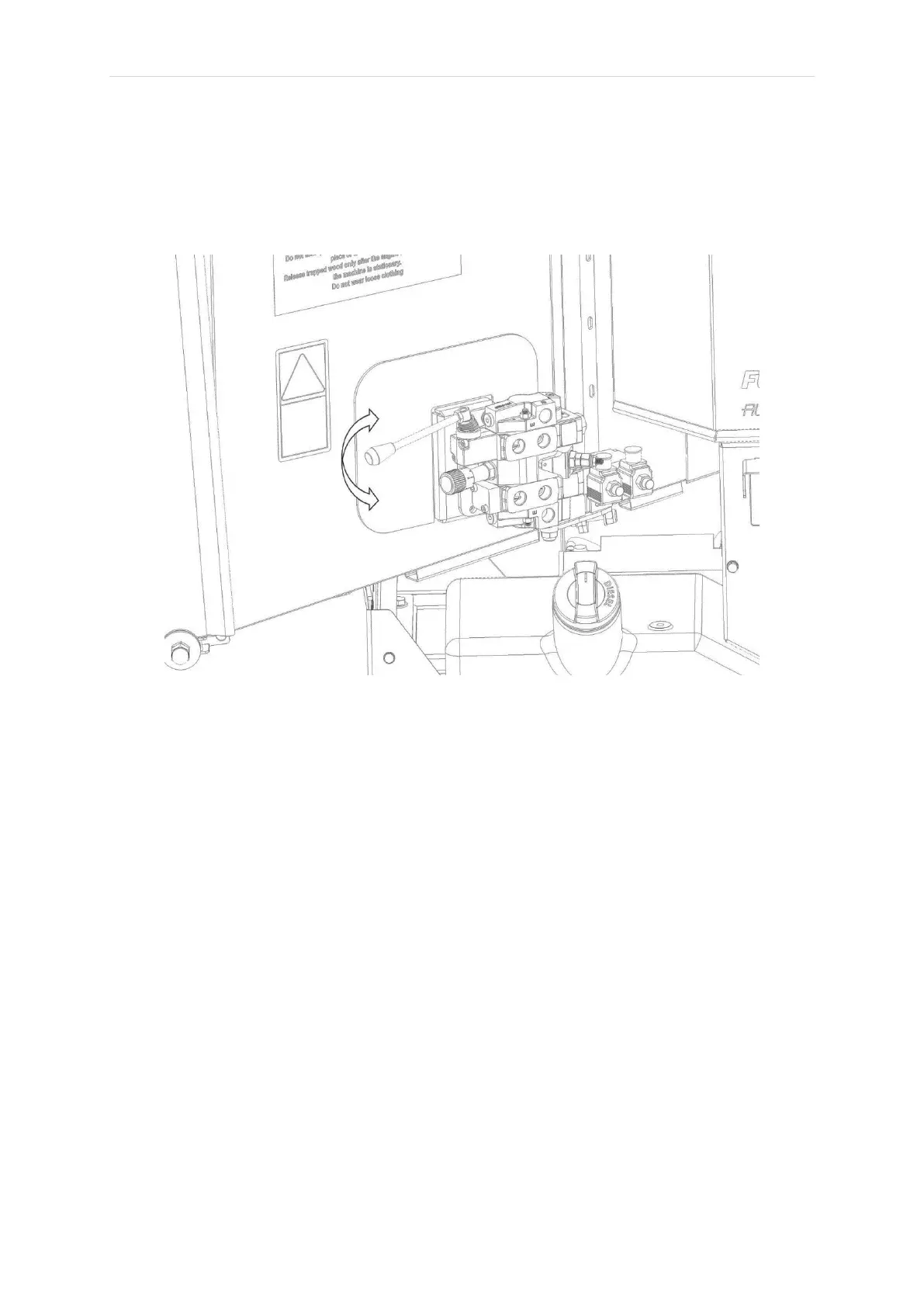

Plug the hose’s into the bayonet ports at the top of the valve block and Raise and lower the
hydraulic jack with the lever as shown below.
To slacken the track adjuster, remove the oval side panel on the side of the track base
that the track has come off, slacken off the 27mm nut on the adjuster valve to release
the pressure, fit the rubber track back on and re-tension with a grease gun to 200 bar,
re-fit the oval side cover and lower the jack and remove.
Routine maintenance
The following must be checked at least on a daily basis during use (also see Service
schedule):
Check engine oil. See Figure 12
Check water level in radiator reservoir bottle. See Figure 12
Check debris screen on front of radiator and remove any debris
Check hydraulic oil level. When the machine is new, the oil level may drop
during initial use. Regularly check and top-up until level settles. If a top up is
required, thoroughly clean around filler cap before removing to help prevent
debris falling into oil tank, top up as required and replace filler cap. See
Figure 13
