FORST XR8P - Covers: Engine, Chipping Chamber, Side Panels

P a g e | 27

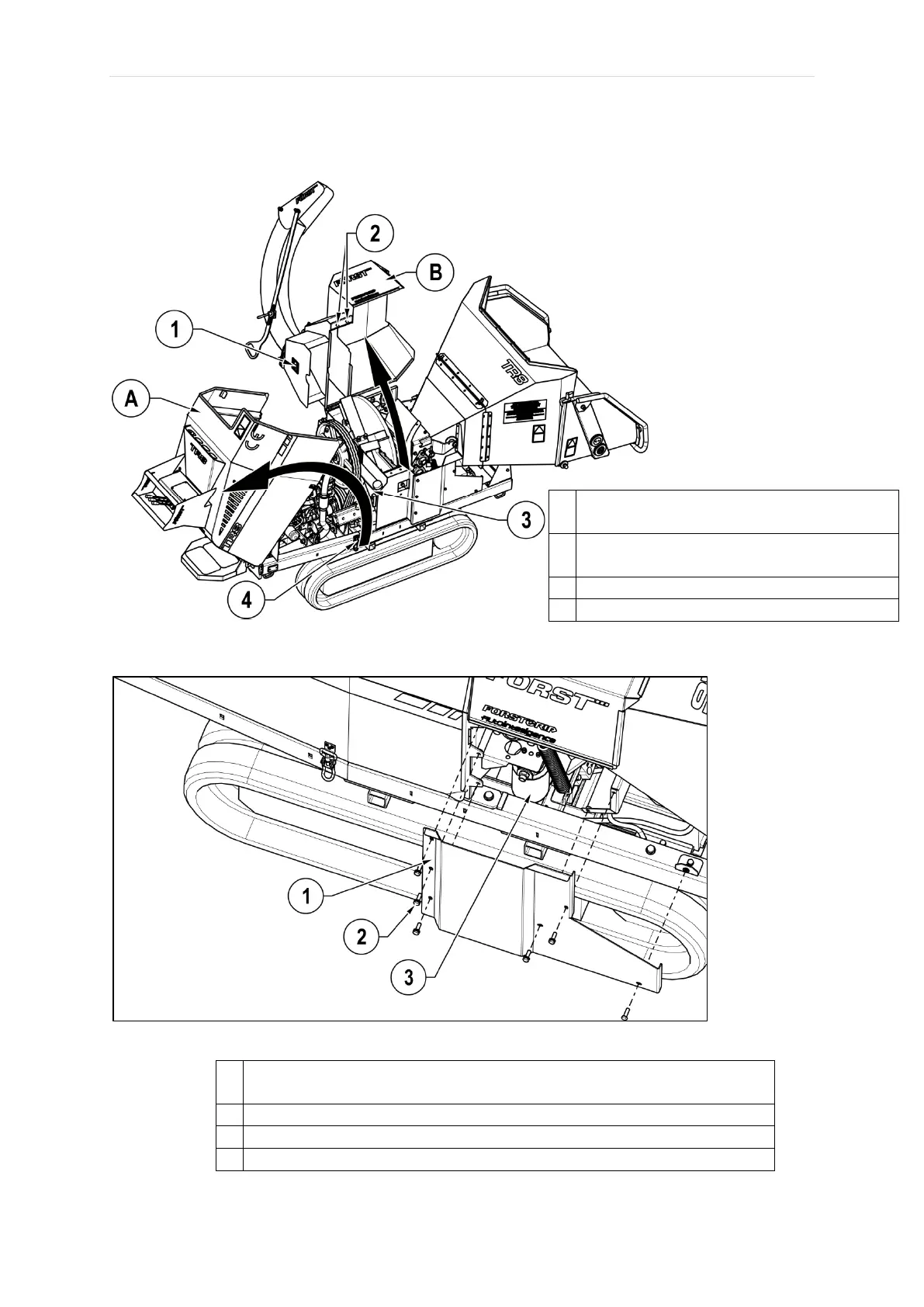

Covers: engine, chipping chamber, side panels
Figure 9
Figure 10
1
LEFT SIDE PANEL REMOVAL FOR OIL FILTER AND FEED
SPRING ANCHOR ACCESS
2
6x FASTENERS
3
HYDRAULIC OIL FILTER HOUSING
4
2 FEED SPRING TENSION ANCHORS, LEFT SIDE VISIBLE
1
MANUFACTURER'S STATUTORY
PLATE
2
2x M12 SCREWS SECURE COVER
IN CLOSED POSITION
3
SERIAL NUMBER
4
ENGINE COVER LATCH
