Jump starting
1. Use a standardised jumper cable to DIN 72553 only and follow the
instructions.
2. Only use batteries of the same voltage.
3. Switch off ignition on machine and support vehicle. The two must not touch
and all lights/equipment must be turned off.

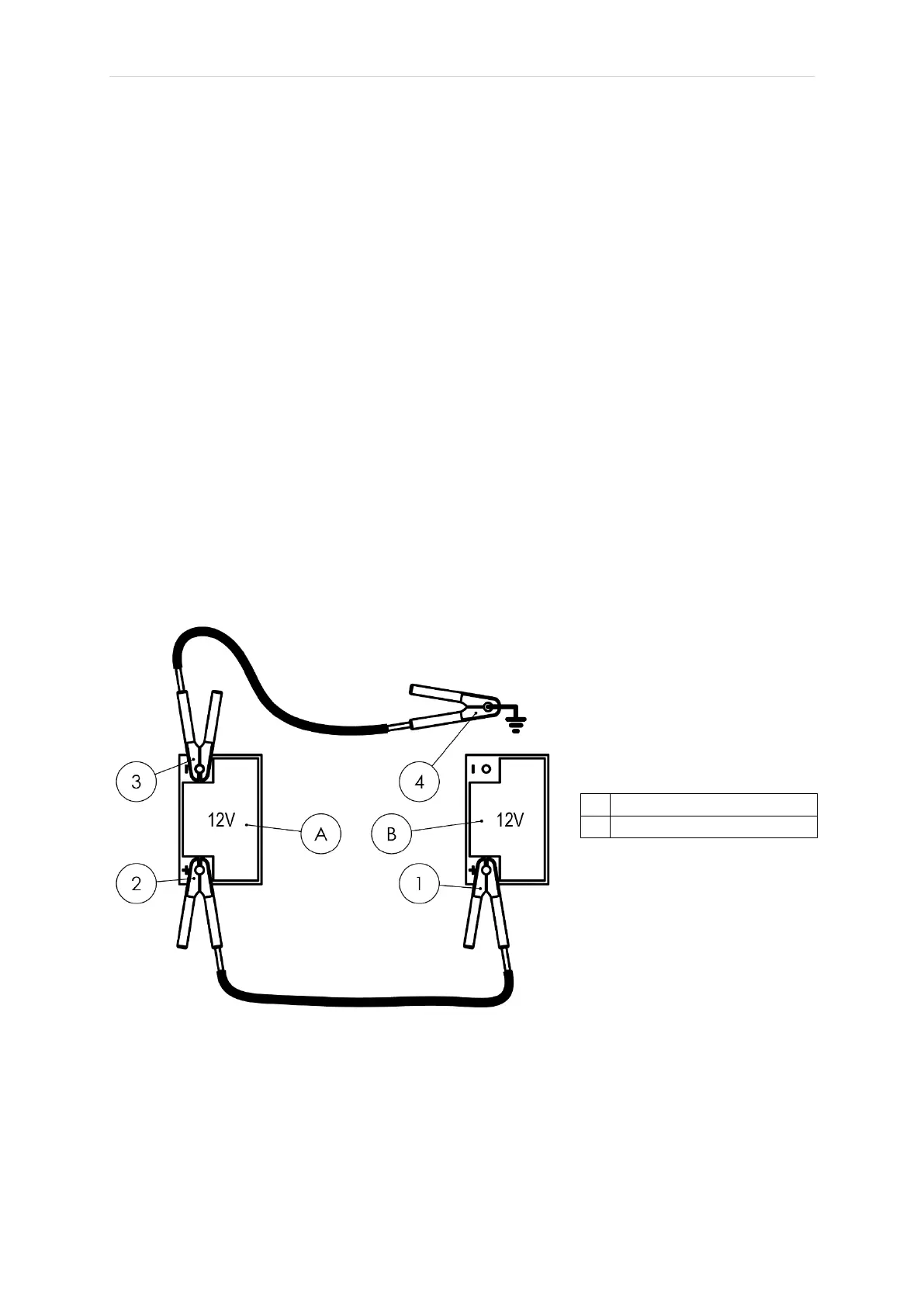

4. Referring to Figure 19, connect in the sequence of 1 – 2 – 3 – 4 as shown and
as follows: Connect one end of the red jump lead to the machine battery
positive (+) terminal.
5. Connect the other end of the red jump lead to the support vehicle battery
positive (+) terminal.
6. Connect one end of the black jump lead to the support vehicle battery
negative (-) terminal.
7. Connect other end of the black jump lead to a machine metal part away from
the battery eg. onto the engine from under the chassis.
8. Make sure that the jump leads will not come into contact with moving parts.
9. Start the support vehicle engine and run at a medium idle speed for 15
seconds.
10. Start machine and run for 15 seconds.
11. Disconnect jump leads in the reverse order 4 – 3 – 2 – 1.
Figure 19
Taking battery out of service
1. Charge the battery and store in a cool but frost free place or on the vehicle
with the negative terminal disconnected.
2. Check the battery charge at regular intervals. Recharge if necessary.
