P a g e | 48

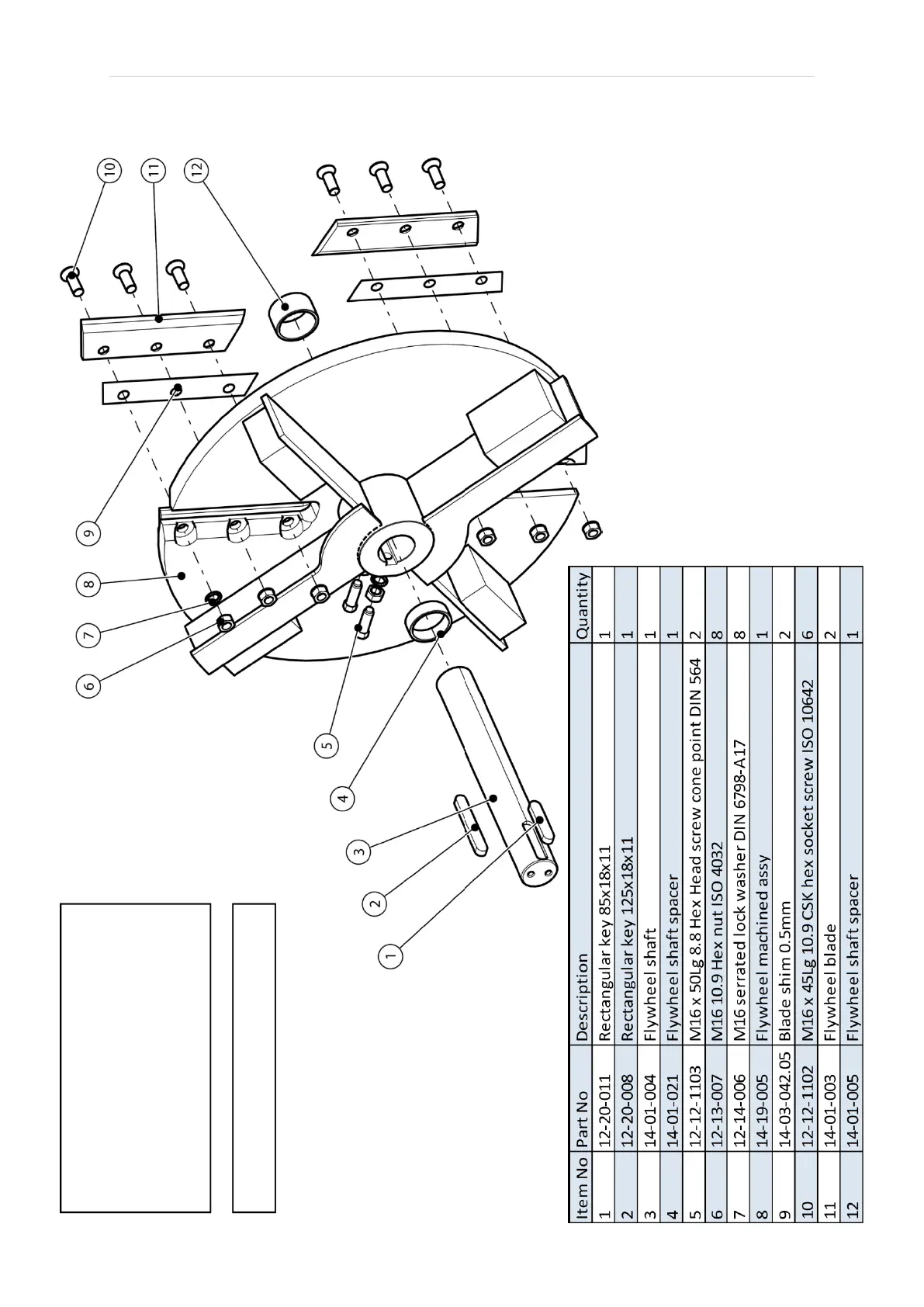

Flywheel assembly
BLADE SHIM THICKNESS AVAILABLE
Part No
Thickness
14-03-042.05
0.5mm
14-03-042.10
1mm
14-03-042.15
1.5mm
14-03-042.20
2mm
14-03-042.25
2.5mm
Note: Blade Bolt Set (Bolt, Washer & Nut)
Part No
99-99-099
