Transparent mode installation Transparent mode configuration examples
FortiGate-50A Installation and Configuration Guide 49

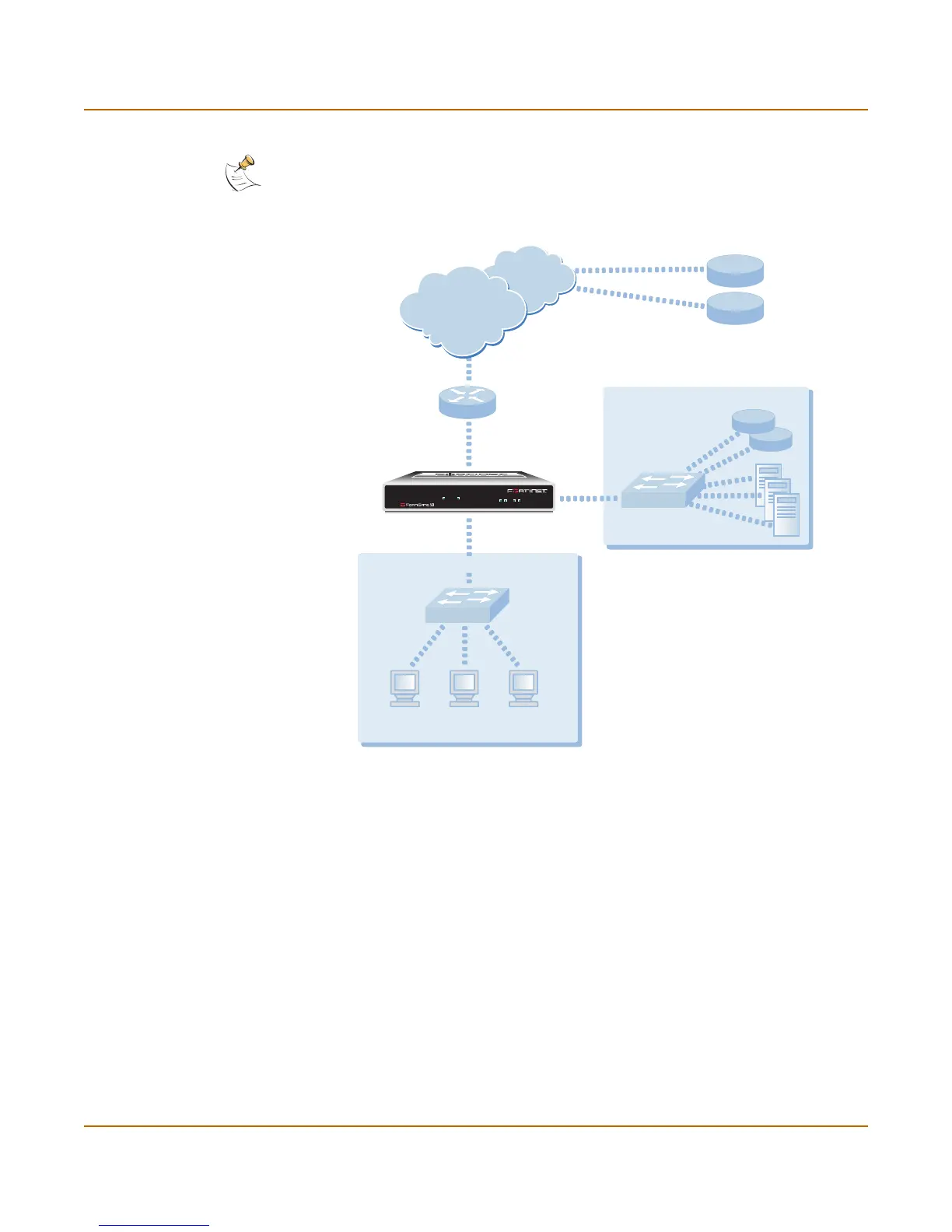

Figure 8: Static route to an external destination
General configuration steps
1 Set the FortiGate unit to operate in Transparent mode.
2 Configure the Management IP address and Netmask of the FortiGate unit.
3 Configure the static route to the FortiResponse server.
4 Configure the default route to the external network.
Note: This is an example configuration only. To configure a static route, you require a
destination IP address.
Management
Computer
Internal Network
DMZ
Internet
Upstream
Router
Gateway IP 192.168.1.2
Management IP 192.168.1.1
FortiResponse
Distribution
Network (FDN)
DNS
24.102.233.5
FortiGate-50A
INTERNAL EXTERNAL
LINK 100 LINK 100
PWR
STATU S
A
