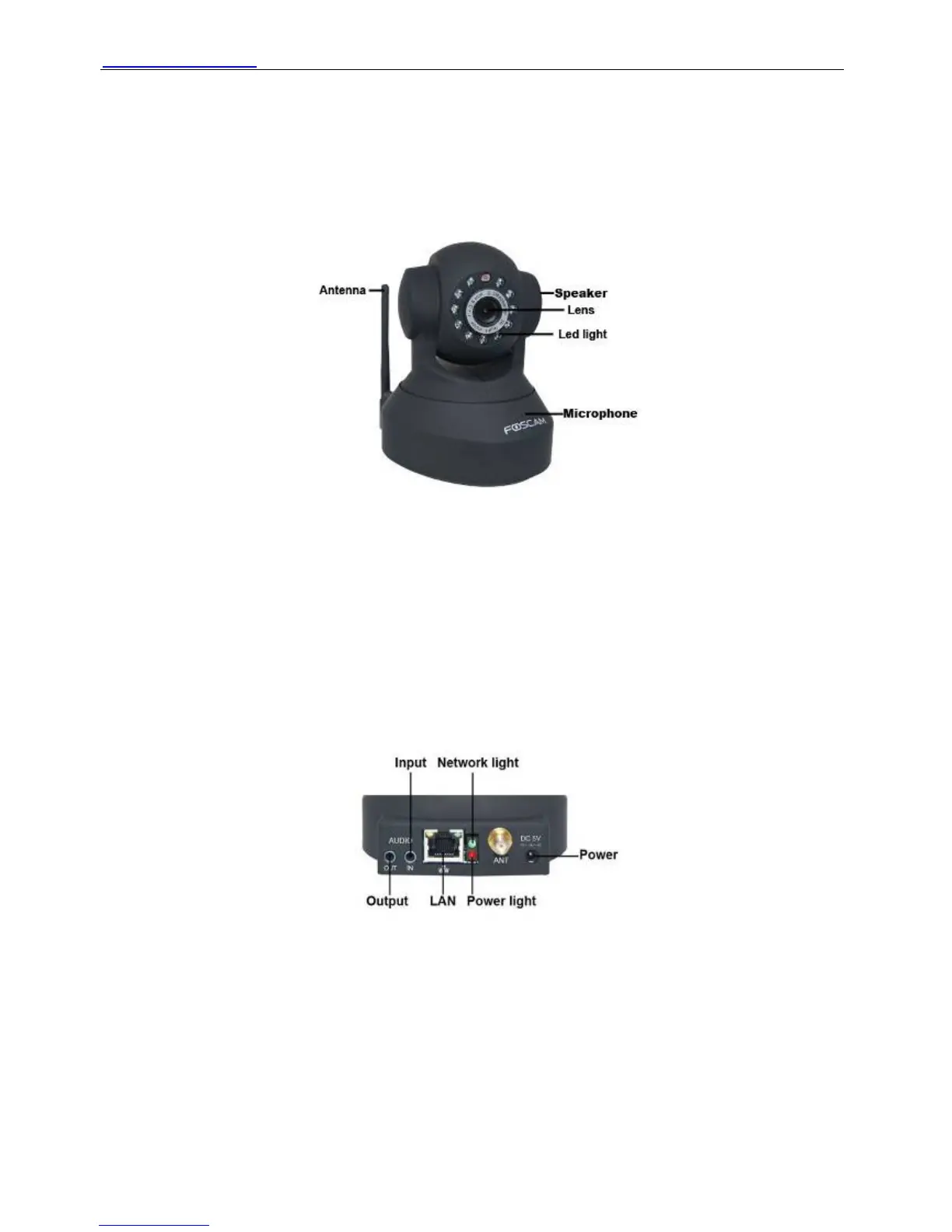

1.3 Product views
1.3.1 Front View
Figure 1.1
Infrared LED: 11 IR LEDs
LENS: CMOS sensor with fixed focus lens. (3.6mm)
WIFI Antenna: Wireless Antenna
Microphone: Build-in microphone
Speaker: Build-in speaker
1.3.2 Back View
Figure 1.2
LAN: RJ-45/10-100 Base T
Power: DC 5V/2A Power supply
Network Light: The LED will blink when plug the power
Power Light: If the power adapter works well, the light will turn on
Audio Input: The jack is used to plug external microphone
Audio Output: The jack is used to plug external speaker
