7
administrator password. The default administrator user is admin with no password.
4 Power Interface
Connect the external power adapter, request for 12V/2A or 12V/1A power.
5 Audio input interface:
The jack is used to plug external input device such as sound pick up device directly. Here microphone cannot directly
insert to the interface, it must connect to adapter first.
NOTE: FI9803 hasn't this section .
6 Audio output interface:
The jack is used to plug external output device such as loud speaker directly. Here microphone cannot directly insert to
the interface, it must connect to adapter first.
NOTE: FI9803 hasn't this section .
7 RS485 Cradle head interface
This camera supports the standard 485 cradle head protocol(Pelco-D and Pelco-P). Please configure the RS485 protocol
corresponding information first (go to Settings- PTZ - RS485 Configuration page and do settings), or else the cradle
head may cannot work.
NOTE: FI9803, FI9804W and FI9805W haven't this section .

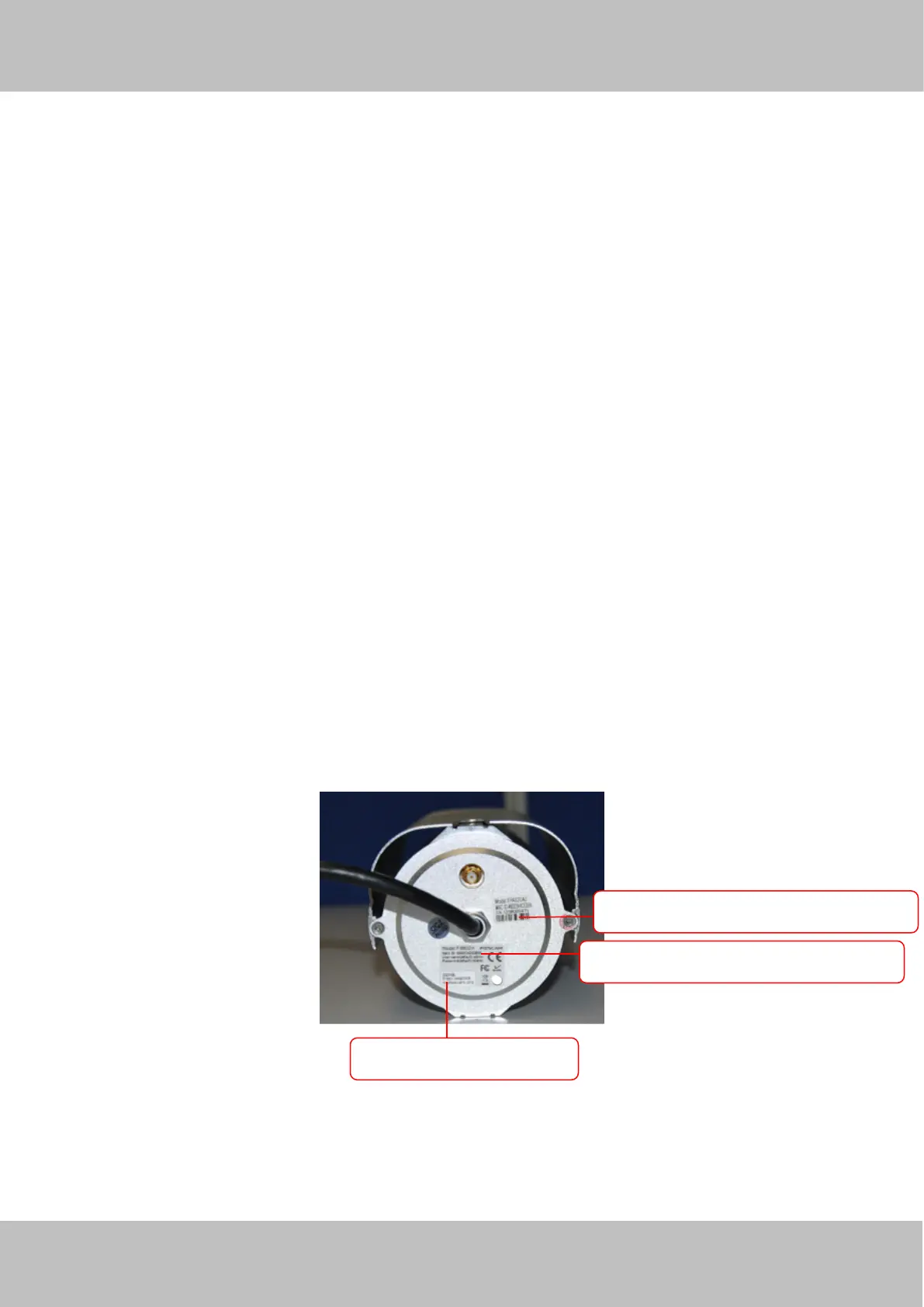

1.5.3 Bottom View
There are up to three labels located at the bottom of the camera, this is an important feature of original Foscam cameras.
If your camera does not have labels as shown in Figure 1.3, it may be a clone. Cloned Foscam cameras can not use
original firmware and are not eligible for warranty or technical services.
MAC address of wireless connection .
MAC address of wired connection .
FOSCAM DDNS Service .
