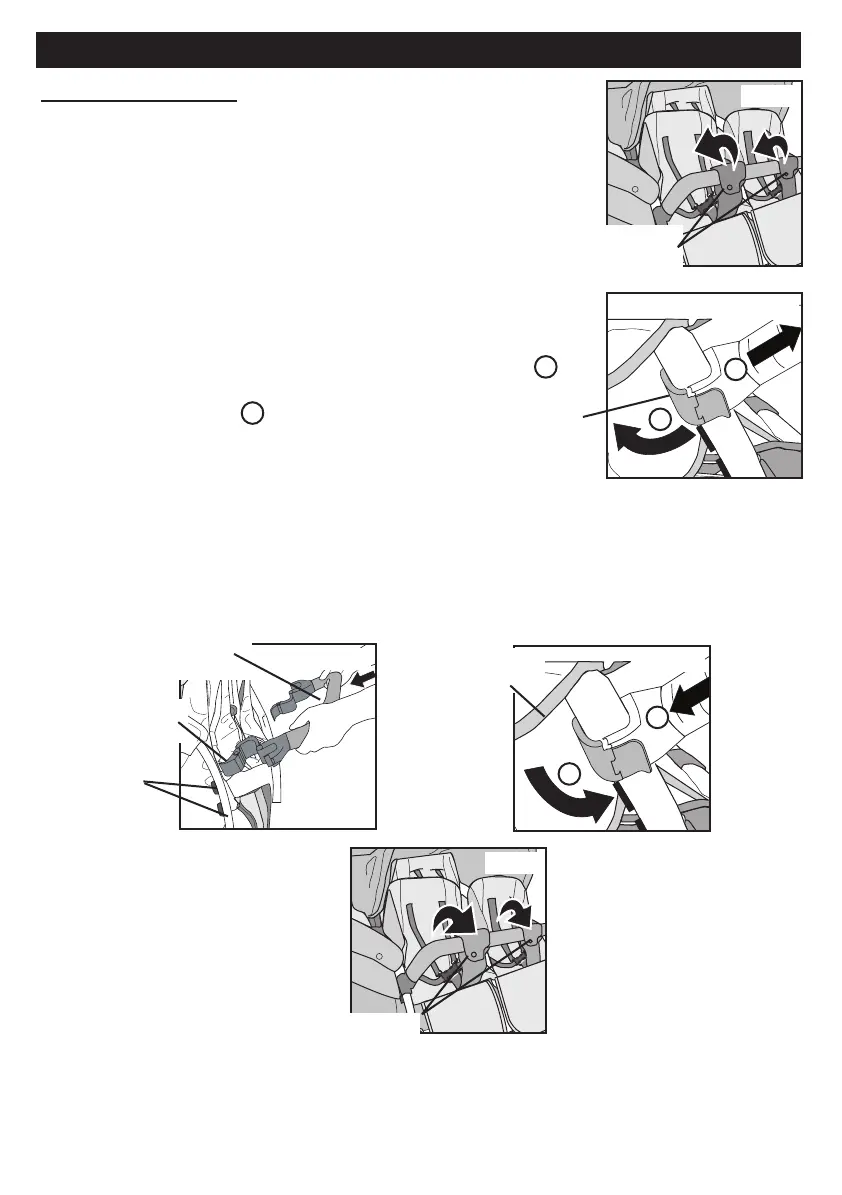

To attach arm bar:
1. Unfold stroller (see “Folding and Unfolding
Stroller” section).
2. With Foundations
®
logo on Arm Bar facing
up, slide Arm Bar Clamp between fabric
armrest cover and front leg. Slide Arm Bar
Clamp Lock Lever onto front leg tubes
above the two Arm Bar Stops on both
sides of the stroller (Fig. 1).
3. Lock Arm Bar to stroller frame by pulling Arm Bar
Clamp Lock Lever around back of front leg tube ,
pull toward front of stroller and then press in
on lock lever (Fig. 2).
4. Repeat step 2 on opposite end of Arm Bar.
5. Attach passive crotch straps.
- Place free end of passive crotch strap over
top of Arm Bar and secure with snap (Fig. 3).
- Repeat on opposite side.
Fig. 3
Passive Crotch
Strap
Fig. 2
Arm Bar
Clamp
Fig. 1
Arm Bar
Stops
Arm Bar
Clamp
Arm Bar
Assembly
Fig. 1
Passive Crotch
Strap
1
2
1
2
Arm Bar
Clamp
Lock Lever
Fig. 2
1
2
Style May Vary
Style May Vary
Arm Bar Removal and Replacement.
