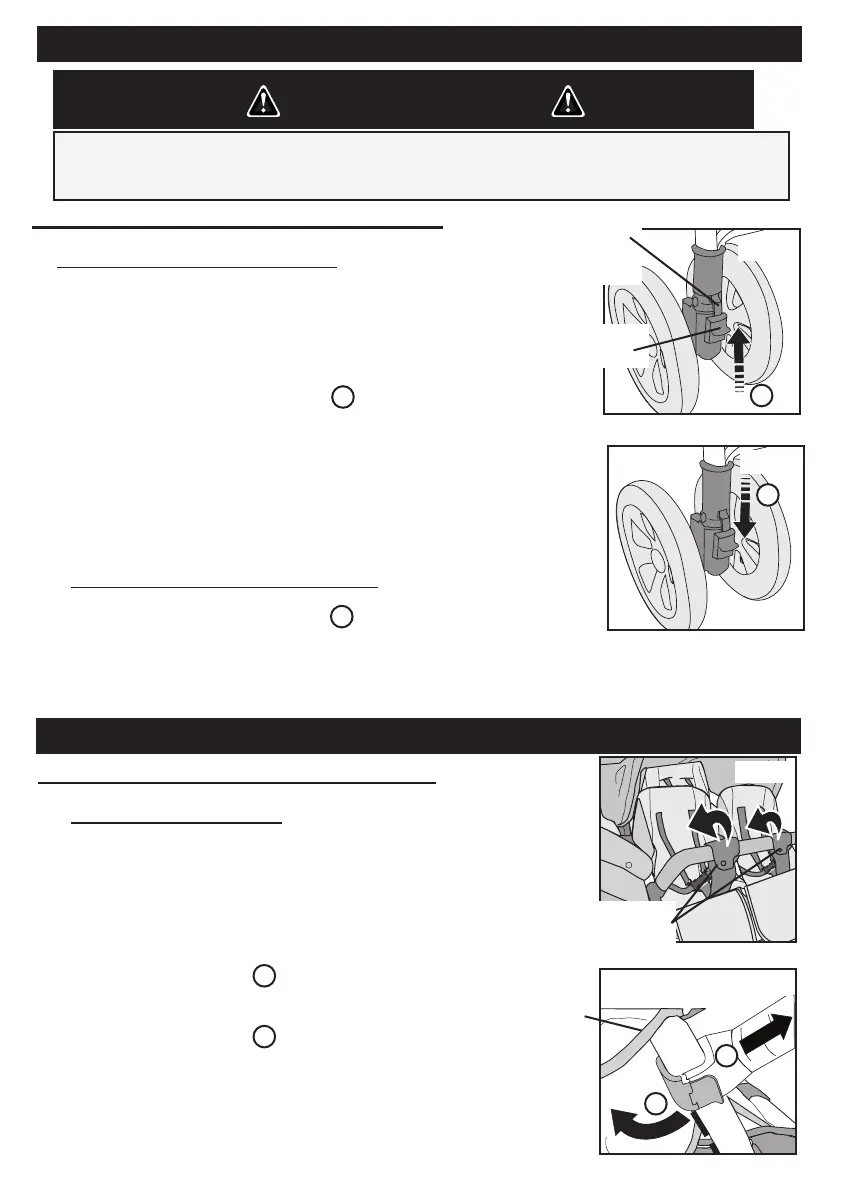

Foundations LX6 - Front Wheel Swivel Lock Operation; Arm Bar Removal and Replacement

• Always use front wheel swivel locks when pushing stroller on
uneven ground.
WARNING
Front Wheel Swivel Lock Operation.
15
Front Wheel Swivel Lock Operation:
To lock front wheel swivel:
1. Rotate front wheel assembly until it is
pointing forward and swivel lock is aligned
with swivel lock track (Fig. 1).
2. Push swivel lock up over swivel lock track
until it snaps into place (Fig. 1).
3. Check that front swivel is securely locked
by pushing side to side on front wheel
assembly.
4. Repeat steps 1 through 3 for other wheel
assembly.
To unlock front wheel swivel:
1. Push swivel lock down until it is free of the
swivel lock track (Fig. 2).
2. Repeat step 1 for other other wheel
assembly.
Fig. 2
1
Fig. 1
Swivel
Lock
Track
Swivel
Lock
1
1
1
Arm Bar Removal and Replacement.
Arm Bar Removal and Attachment:
To remove arm bar:
1. Remove passive crotch straps from arm
bar by unfastening snaps on both front
passive crotch straps (Fig. 1).
2. Pull arm bar clamp lock lever out away
from stroller to unlock arm bar from
stroller frame (Fig. 2).
3. Pull out on arm bar to remove it from
stroller frame (Fig. 2).
Fig. 1
Passive Crotch
Strap
1
2
Arm Bar
Clamp
Lock Lever
Fig. 2
1
2
Style May Vary
