Foundations LX6 - Step 5 - Arm Bar Assembly

STEP 5 - Arm Bar Assembly
1. With Foundations
®
logo on Arm Bar (E) facing up,
slide Arm Bar Clamp (1) between fabric seat side cover
and front leg. Push Arm Bar Clamp (1) onto front leg
tubes above the two Arm Bar Stops (2) on the arm, on both
sides of the stroller (Fig. 1).
2. Lock Arm Bar to stroller frame by pushing Arm Bar
Clamp (1) around front leg tube (4) .Close
the Lock lever by pressing the lock lever onto the Arm
bar until it clicks closed.
3. Repeat step 2 for opposite end of Arm Bar
Check that the Arm bar is securely attached.

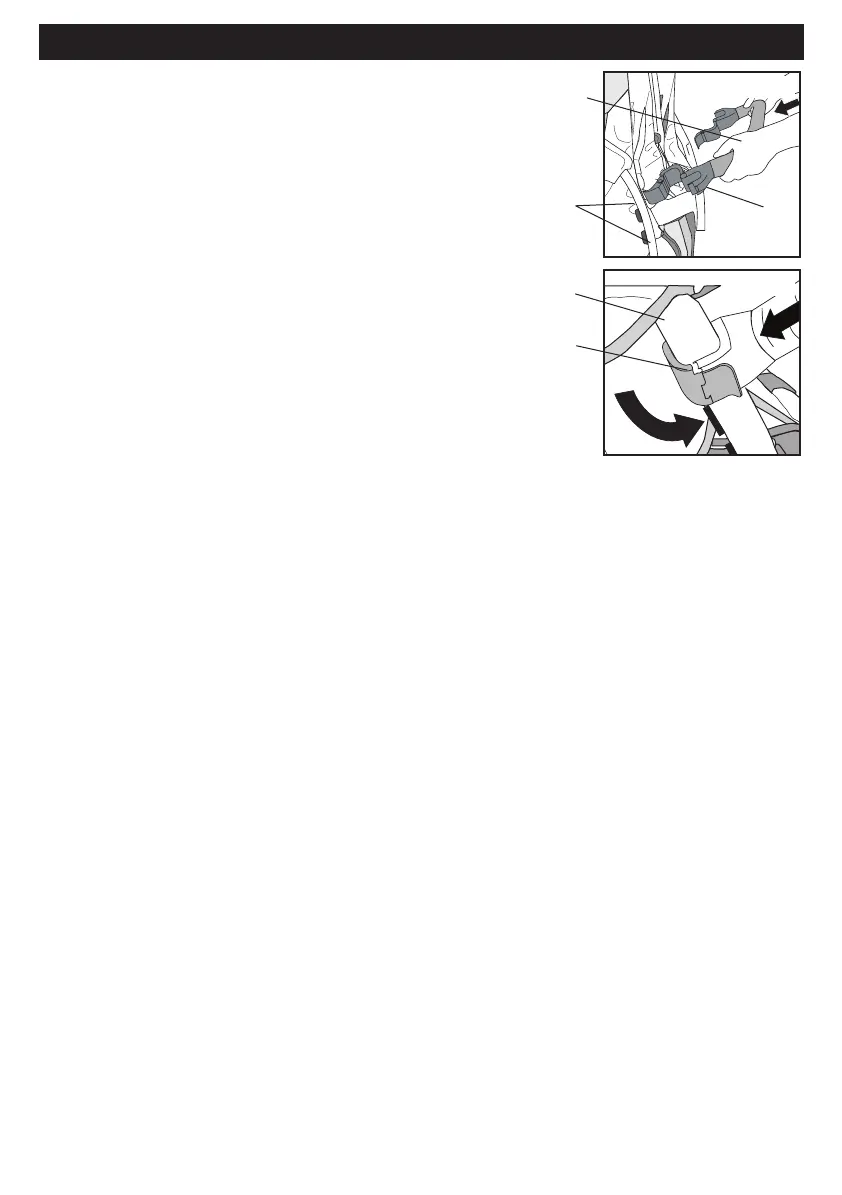

Fig. 1
