46
EN

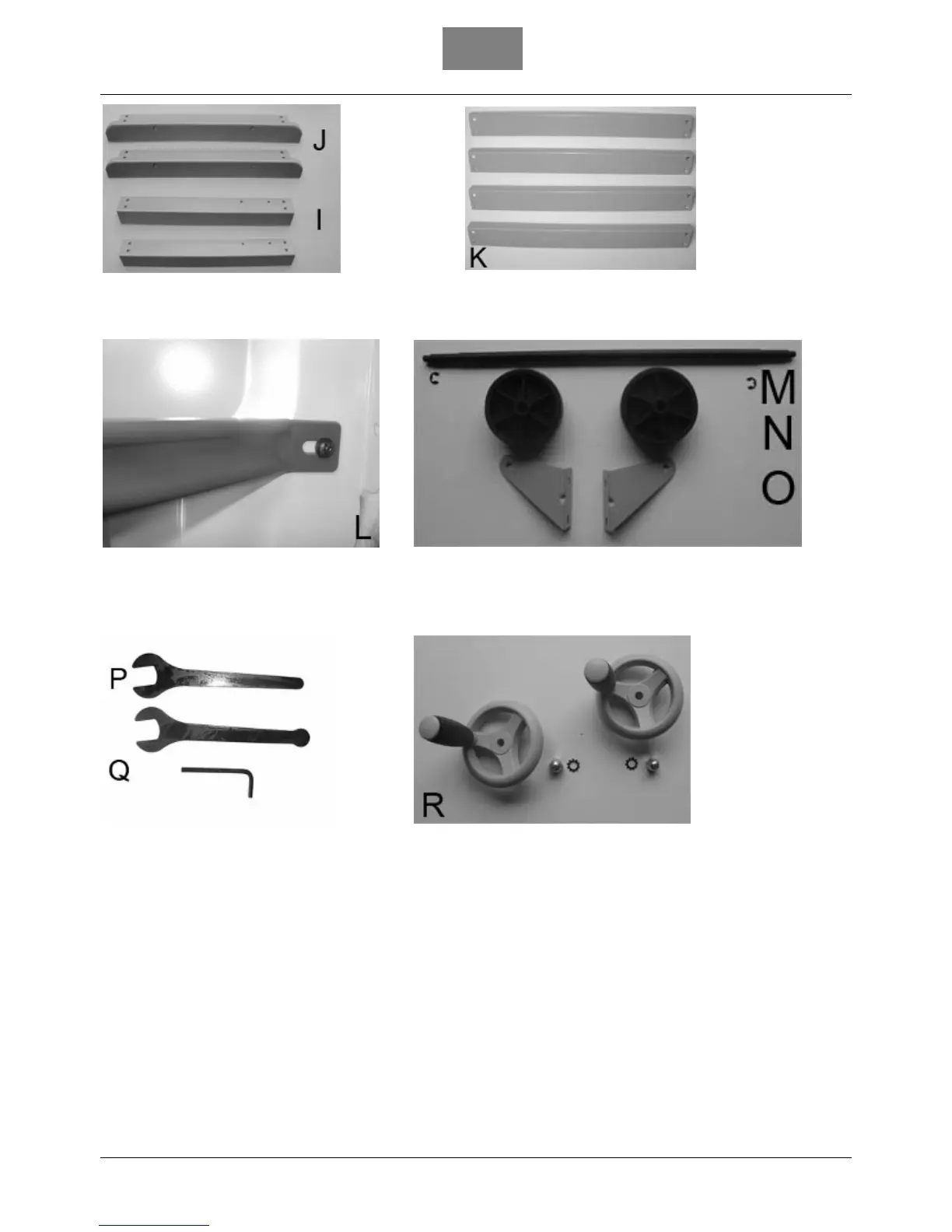

I. 2 x upper bars (small)
J. 2 x upper bars (long)
K. 4 x medium bars
L. 2 x bearing of back extensions
M. Wheel axle
N. 2 x wheels
O. 2 x wheel supports
P. 2 x wrenches for changing the blade
Q. Allen wrench
R. 2 x handwheels (lever), each supplied with a washer and a nut
