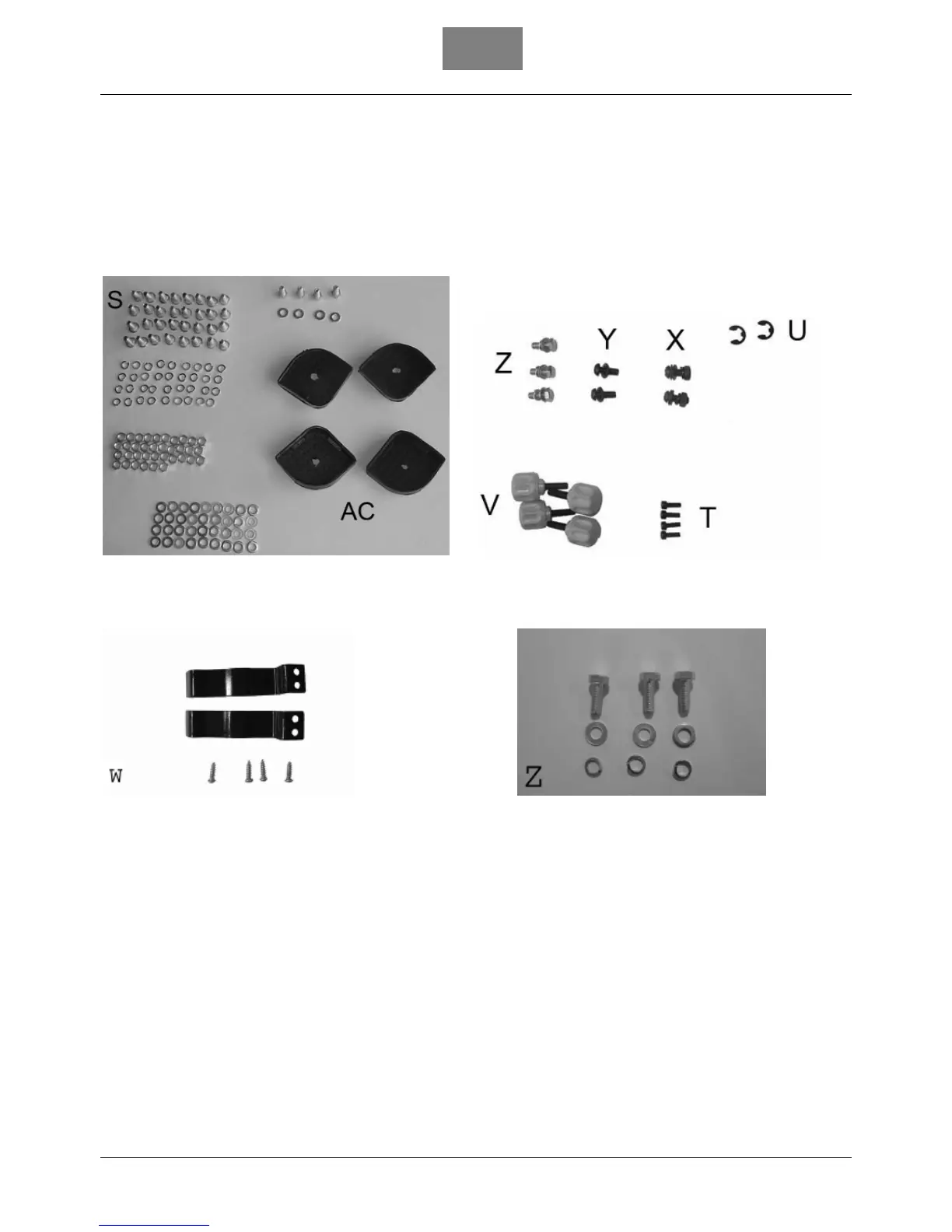

S. 32 x bolts and nuts
T. 4 x hexagonal screws to lock extensions
U. 2 x elastic rings (wheels’ axle)
V. 4 x lock screws with knurled bolt for side extensions
W. 2 tongues with 4 screws for supporting the pusher
X. 2 x main screws with two flat washers, stop washers and nut to fix the supports on the back extension of
the workbench
Y. 2 x main screws with two flat washers and stop washers to fix the angle bars of the back extension of the
table saw
Z. 3 x screws M5 x 16 mm with 3 flat washers and 2 stop washers to connect workbench’s back extension
AC. Rubber feet x 4
