ASSEMBLY OF THE BASE
CAUTION: ALWAYS DISCONNECT THE TABLE SAW FROM THE POWER SUPPLY
BEFORE ANY MAINTENANCE OR ASSEMBLY OPERATION.
DURING BASE ASSEMBLY, WE RECOMMEND YOU TO TIGHTEN THE SCREWS ONLY
HALFWAY UNTIL THE CONCLUSIVE ASSEMBLY OF THE MACHINE.


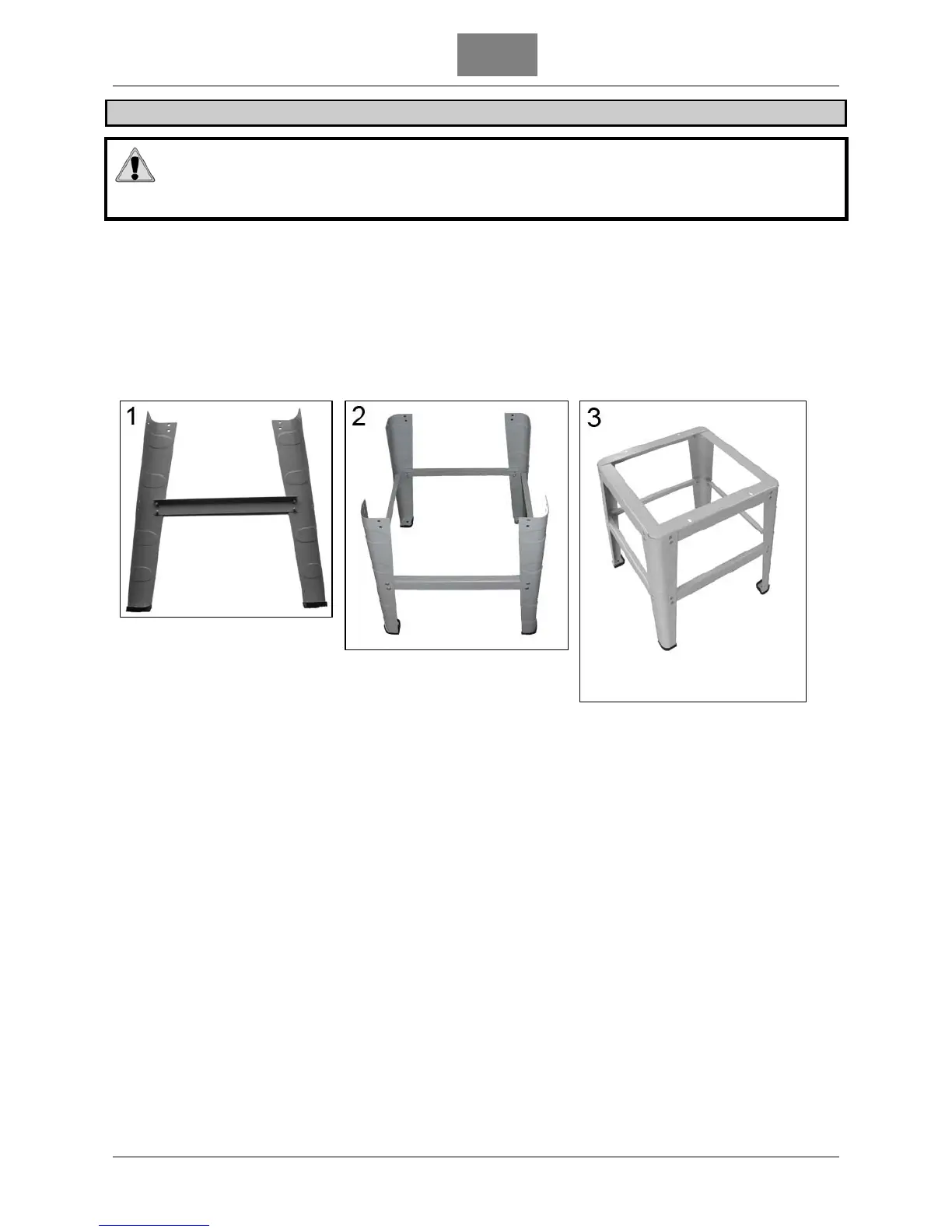

Use 4 bolts and nuts (S) to fix the medium support (fig. K) marked D between the two feet of the saw
marked A (fig. H).

Fix the second support D (fig. K) to the second pair of feet of the saw (H).

Use 8 bolts and nuts (S) to fix the two remaining supports (K) to the feet of the saw marked A (fig. H).

Use 4 bolts and nuts (S) to connect each long crossbar marked B (fig. J) on the upper side of the base.

To fix the small upper supports (I), use 4 bolts and nuts (S) and follow the same instructions for the
assembly of the previous part.

Tighten all bolts and place the saw on its four legs.
