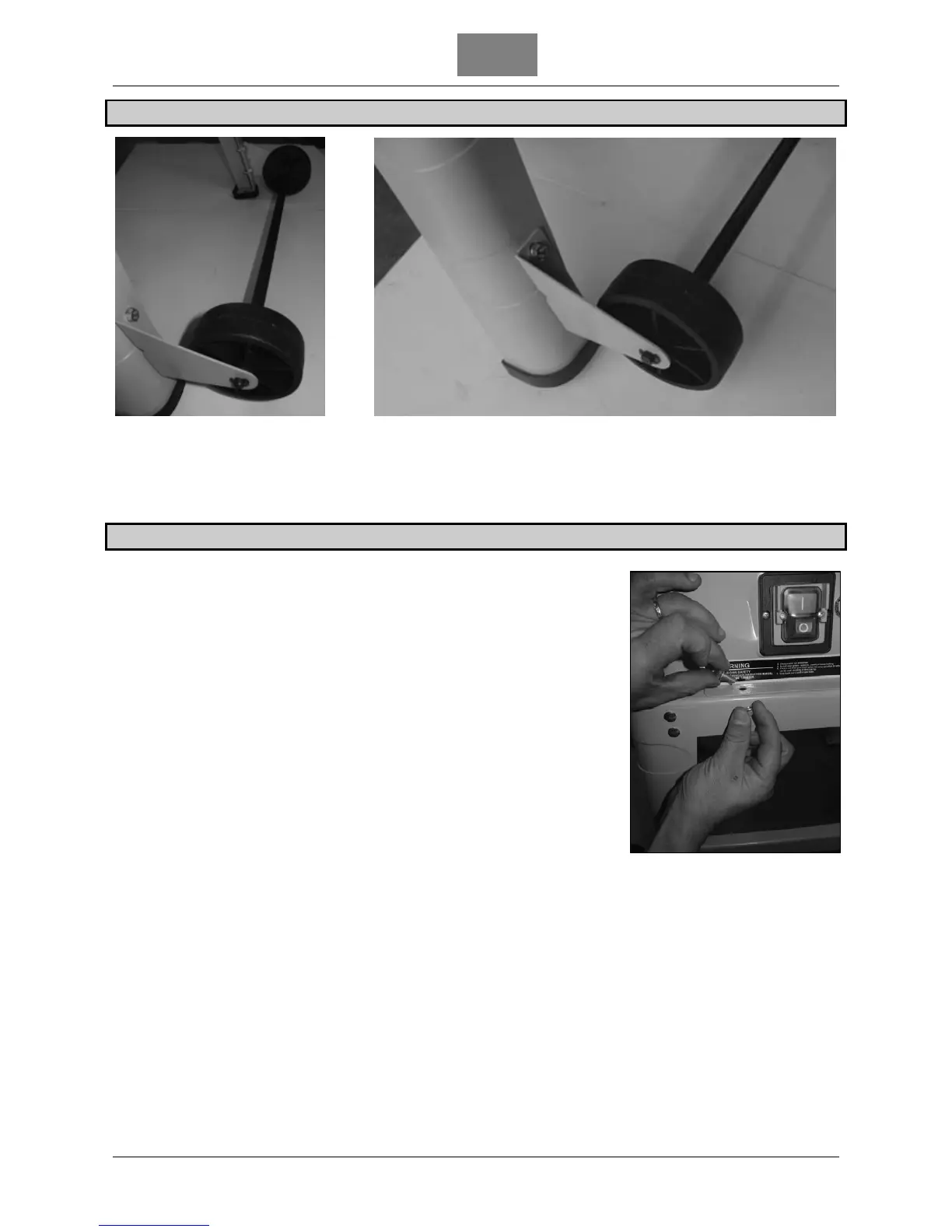

ASSEMBLY OF THE WHEELS TO THE BASE
1. Fix the wheel lock supports (O) to the angle posts of the base (H) by using M6x16 mm screws with the
washers and the nuts.
2. Connect the wheel to the axle (M), then assemble the axle between the wheel lock supports (O).
3. Add an elastic ring (U) to each end of the axle, in order to keep the wheels in their housing.
ASSEMBLY OF THE WORKBENCH TO THE BASE
1. Be sure that the blade has completely gone back in the workbench.
2. Place the workbench on the base.
3. Align base’s holes with the corresponding holes located on saw’s base.
4. Fix the circular saw to the base by using 4 M6x16 mm screws with the
washers and the nuts (T).
5. Tighten completely.
