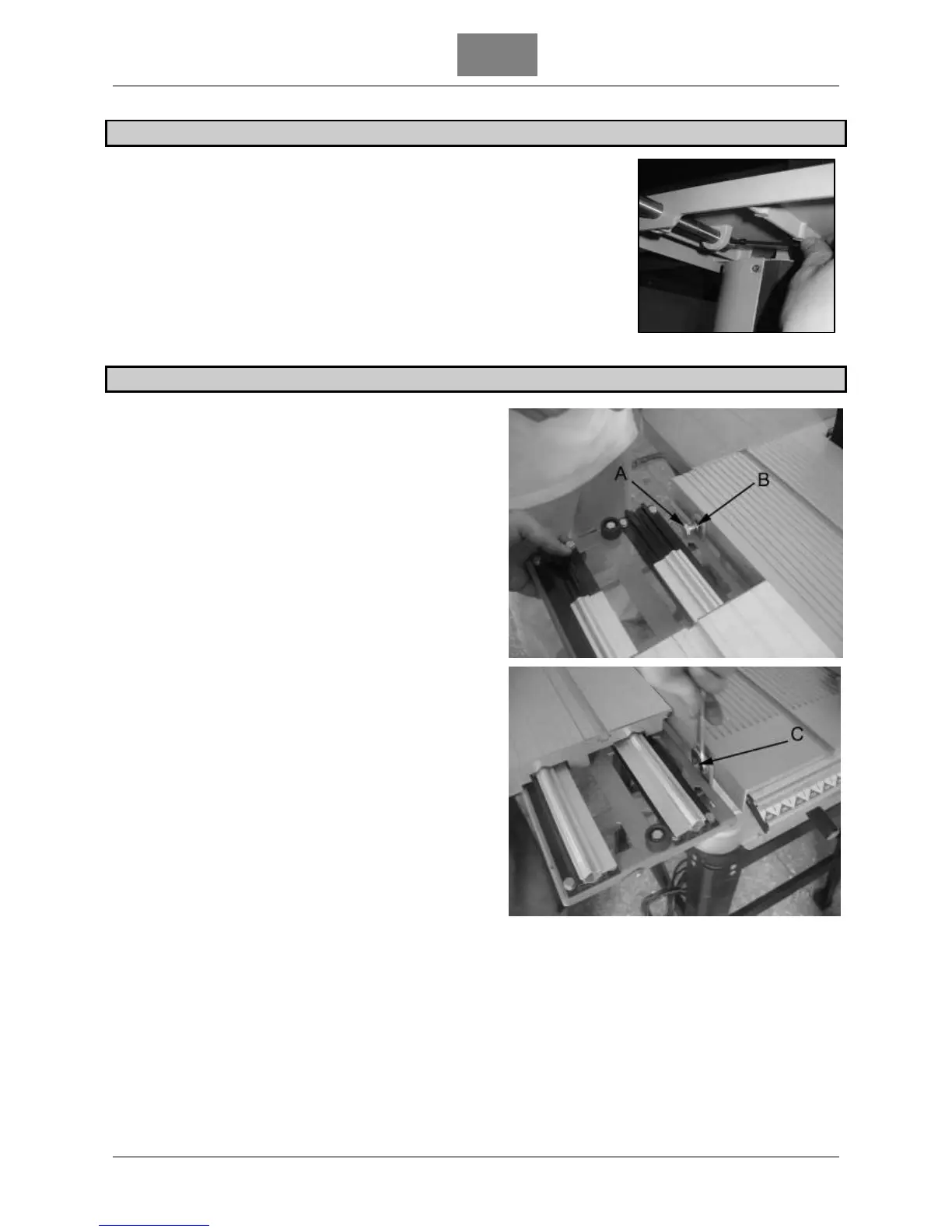

ASSEMBLY OF SIDE EXTENSION
1. Make the bars of the side extension (G) slide on the surface of the table
saw.
NOTICE:
2. To prevent the extension from coming out from the bench, tighten the
hexagonal screws on the guide bars with an Allen wrench.
Tighten the two knurled screws to lock the side extension.
ASSEMBLY OF THE CARRIAGE
This table saw is provided with a carriage that allows you
to block the pieces during cutting.
1. This carriage must be assembled on the left side of
the machine. To fix it, use the hexagonal screws (A)
and the washers (B).
2. Use a 14 mm flat wrench (C) to tighten the two
screws.
3. Before locking the screws, be sure that the carriage is
located 1 mm over the workbench. This position
prevents the workpiece from rubbing against the
bench when moving.
4. Check that the carriage is horizontal, then tighten the
screws.
