Foxconn G41MD Series - Chapter 1 Product Introduction; Layout

1
4

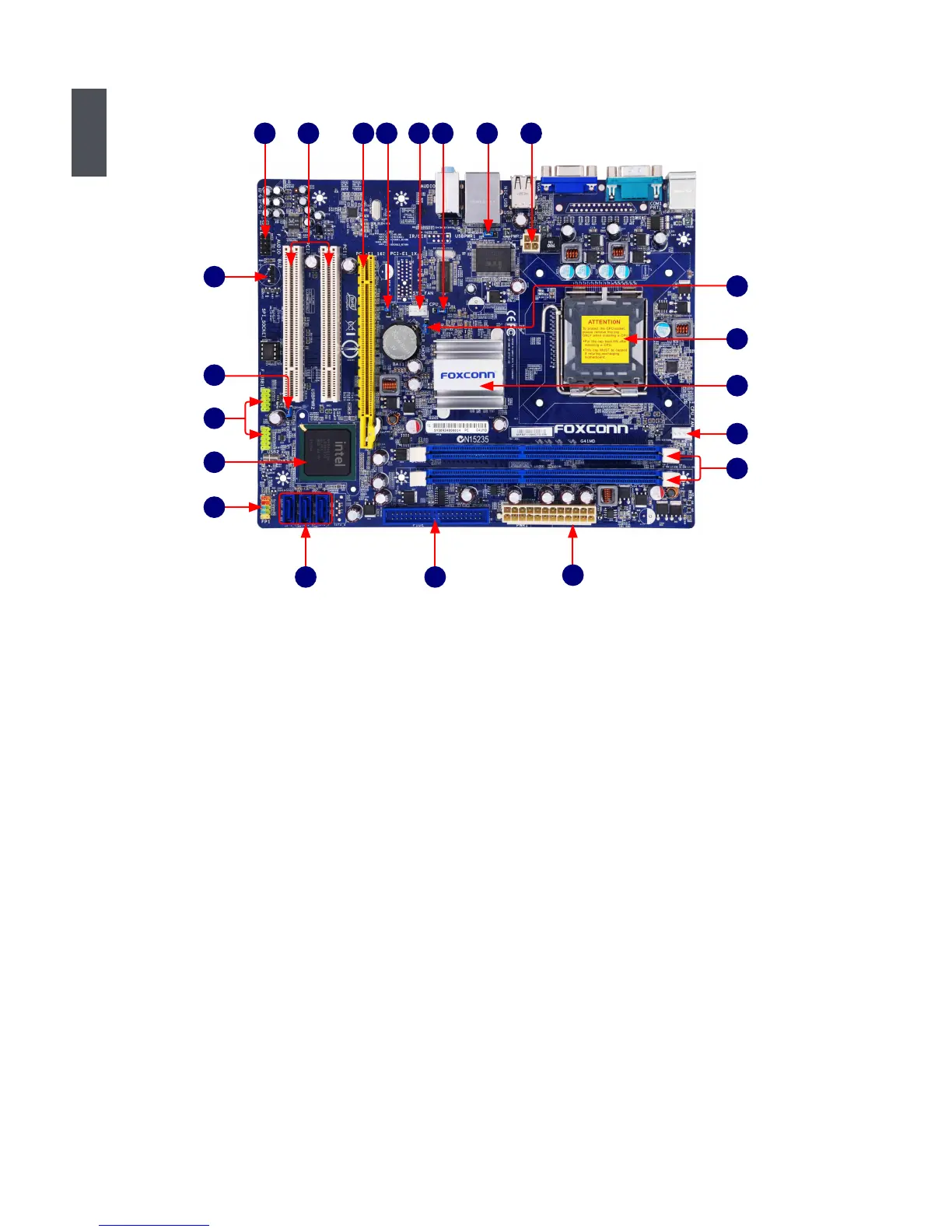

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
17
18
1
4
19
9
7
20
14
8
16
21
6
15
13
2
35
11
10
12
1. 4-pin ATX 12V Power Connector
2. USBPWR1 Jumper

4. SYS_FAN Header

6. PCI Express x16 Slot
7. PCI Slots
8. Front Audio Connector
9. Speaker Connector
10. USBPWR2 Jumper
11. Front USB Connectors
12. South Bridge: Intel
®
ICH7
13. Front Panel Connector
14. SATA Connectors

16. 24-pin ATX Power Connector
17. DDR3 DIMM Slots
18. CPU_FAN Header
19. North Bridge: Intel
®
G41

21. Clear CMOS Jumper
