Foxconn G41MD Series User Manual


1

1. PS/2 Mouse Port
Use the upper port (green) to connect a PS/2 mouse.
2. PS/2 Keyboard Port
Use the lower port (purple) to connect a PS/2 keyboard.
3. Serial Port
This is output of RS232 COM1 port.
4. VGA Port VGA Port
To connect with external display devices, such as monitor or LCD display.
5. USB Ports


6. Audio Ports

7. RJ-45 LAN Port
The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.

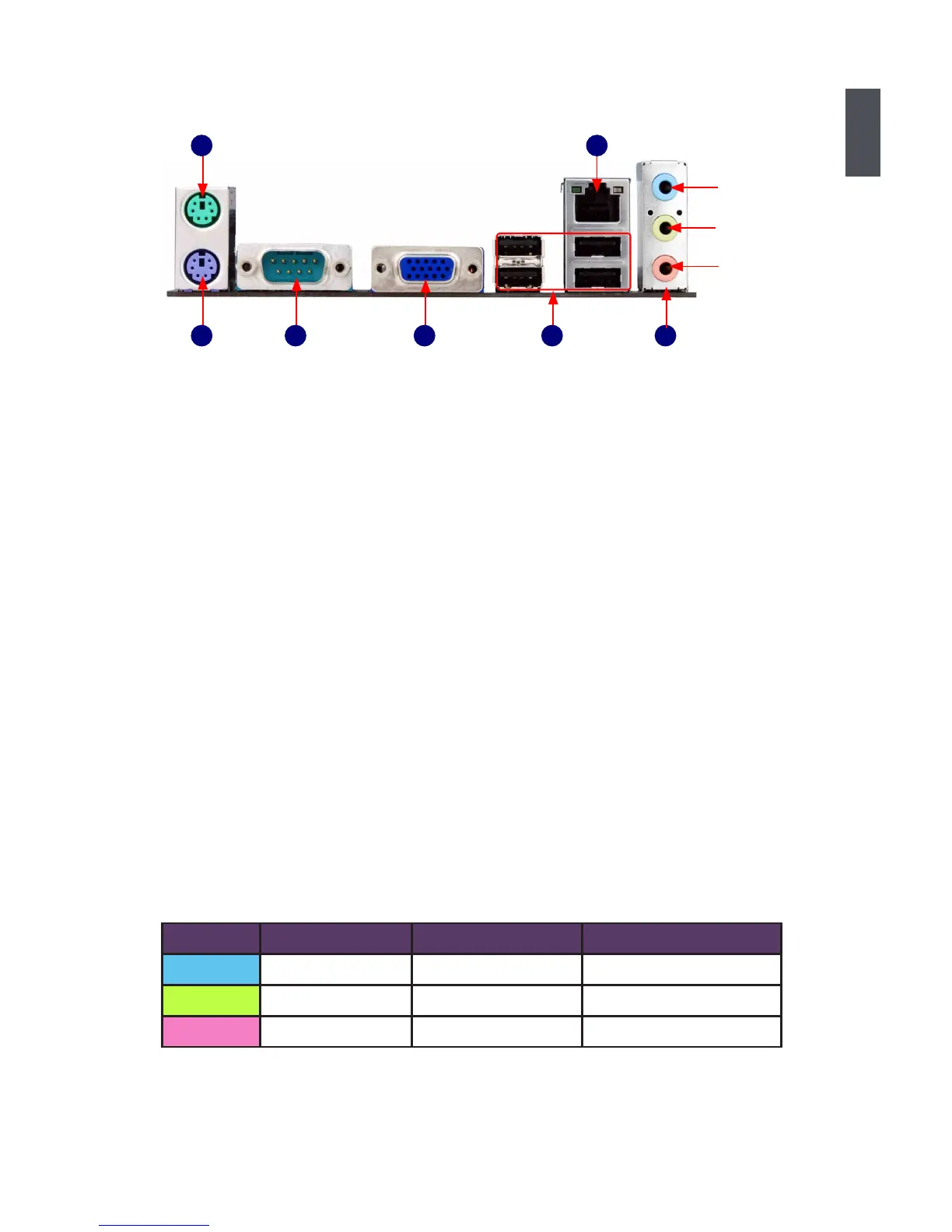

1-3 Back Panel Connectors
USB Ports
LAN Port
PS/2 Keyboard Port
PS/2 Mouse Port
Serial Port Audio Ports
7
1
4
5
2
3
VGA Port
6
Line Out
Microphone In
Line In
Port 2-channel 4-channel 
Blue Line In Rear Speaker Out* Rear Speaker Out*
Green Line Out Front Speaker Out Front Speaker Out
Pink Microphone In Microphone In Center/Subwoofer Out*

Foxconn G41MD Series Specifications

General

Form Factor	Micro ATX
CPU Socket	LGA 775
Expansion Slots	1 x PCIe x16, 1 x PCIe x1, 2 x PCI
Onboard Video	Intel GMA X4500
Chipset	Intel G41
Memory Slots	2
Storage Interface	4 x SATA 3Gb/s
Audio	Realtek ALC662 6-Channel HD Audio
Rear Panel I/O Ports	1 x PS/2 keyboard, 1 x PS/2 mouse, 1 x VGA, 4 x USB 2.0, 1 x RJ-45, 3 x audio jacks
USB Ports	4 x USB 2.0 (rear), 4 x USB 2.0 (via headers)
Video Outputs	1 x VGA
