Foxconn G41MD Series User Manual

12
2
12

If you take a look at front side of memory module, it has asymmetric pin counts on both sides

correctly install your memory modules into the sockets.

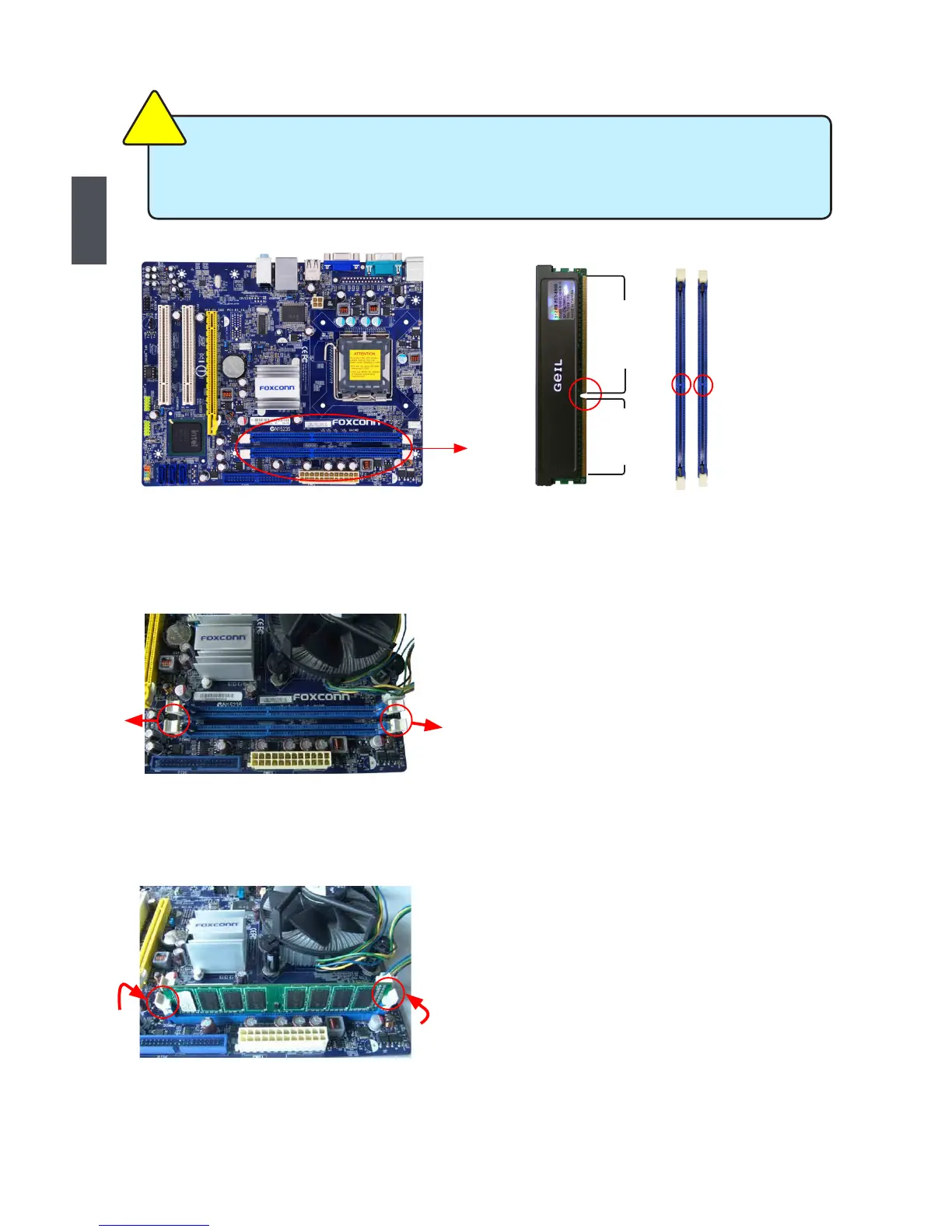

Step 1:
Spread the clips at both ends of the memory socket.
Place the memory module onto the socket, then put your

and seat it vertically into the memory socket.
Step 2:
The clips at both ends of the socket will snap into place
when the memory module is securely inserted.
Before installing a memory module, make sure to turn off the computer and unplug the
power cord from the power outlet to prevent damage to the memory module. Be sure
to install DDR3 DIMMs on this motherboard.
CAUTION
!
Notch
144-Pin
96-Pin

Foxconn G41MD Series Specifications

General

Form Factor	Micro ATX
CPU Socket	LGA 775
Expansion Slots	1 x PCIe x16, 1 x PCIe x1, 2 x PCI
Onboard Video	Intel GMA X4500
Chipset	Intel G41
Memory Slots	2
Storage Interface	4 x SATA 3Gb/s
Audio	Realtek ALC662 6-Channel HD Audio
Rear Panel I/O Ports	1 x PS/2 keyboard, 1 x PS/2 mouse, 1 x VGA, 4 x USB 2.0, 1 x RJ-45, 3 x audio jacks
USB Ports	4 x USB 2.0 (rear), 4 x USB 2.0 (via headers)
Video Outputs	1 x VGA
