Foxconn G41MX Series User Manual

17
2
17

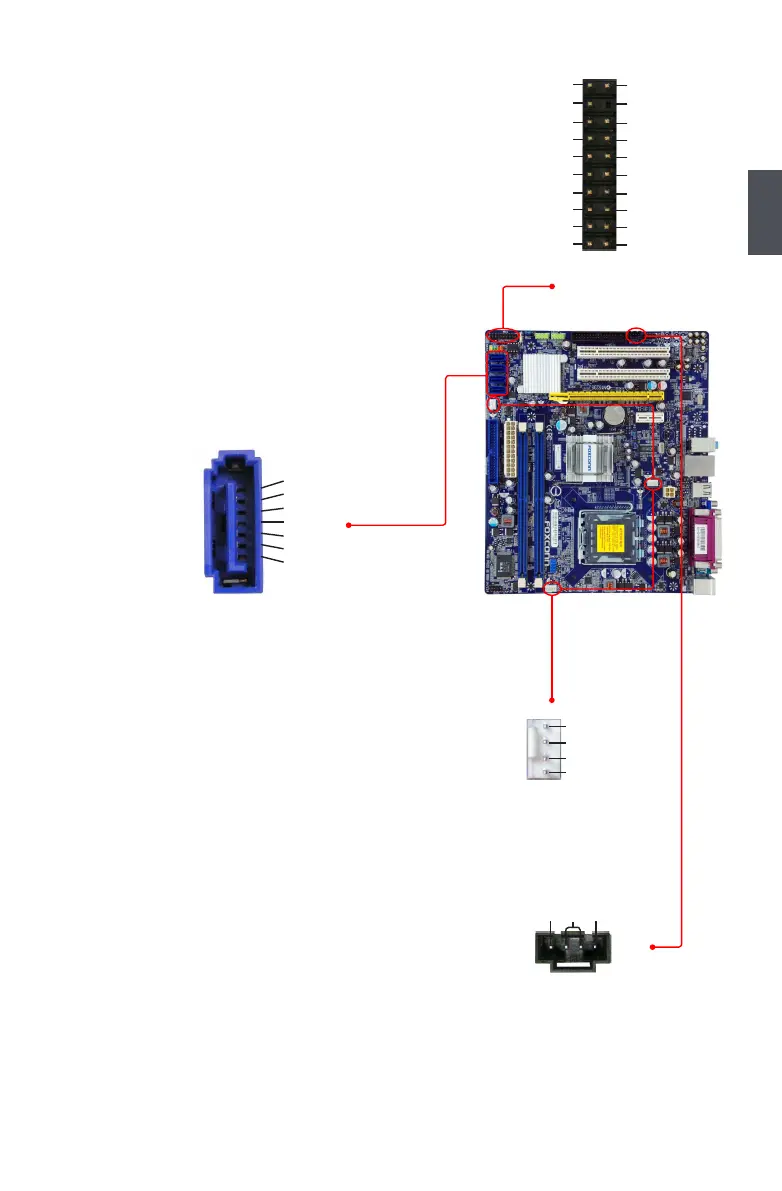

TPM Connector : TPM
The TPM (Trusted Platform Module) provides the ability
to the PC to run applications more secure and to make
transactions and communication more trustworthy. To
utilize this function, you should purchase additional
device and install it.
Serial ATA Connectors : SATA_1/2/3/4
The Serial ATA connector is used to connect with SATA
Hard Disk or CD devices which support this feature.
The current Serial ATA II interface allows up to 300MB/s
data transfer rate.
Fan Connectors : CPU_FAN, SYS_FAN1,
SYS_FAN2
There are three main fan headers on this motherboard.
The fan speed can be controlled and monitored in “PC
Health Status” section of the BIOS Setup. These fans
can be automatically turned off after the system enters
S3, S4 and S5 sleeping states.
Audio Connector : CD_IN
CD_IN is a Sony standard audio connector, it can be
connected to a CD/DVD-ROM drive through a CD/DVD
audio cable.
CD_IN
CD_L GND CD_R
1
CPU_FAN/SYS_FAN1/
SYS_FAN2
GND
POWER
SENSE
CONTROL
1
GND
TX+
TX-
GND
RX-
RX+
GND
1
SATA_1/2/3/4
LCLK#
LFRAME#
LRESET#
LAD3
VDD
LAD0
SB3V
NC
GND
LPCPD#
GND
EMPTY
LAD2
NC
LAD1
GND
NC
SERIRQ
CLKRUN#
NC
1 2
19 20
TPM

Foxconn G41MX Series Specifications

General

Form Factor	Micro ATX
Maximum Memory	8GB
Socket	LGA 775
Storage Interface	4 x SATA 3Gb/s
Audio	Realtek ALC662 6-Channel HD Audio
Chipset	Intel G41
Memory Slots	2
Expansion Slots	2 x PCI
USB Ports	8 x USB 2.0
Supported CPU	Intel Core 2 Quad/Core 2 Duo/Pentium Dual Core/Celeron Processors
Rear Panel Ports	1 x PS/2 Keyboard, 1 x PS/2 Mouse, 1 x VGA, 4 x USB 2.0, 1 x RJ-45, 3 x Audio Jacks
LAN	Realtek (RTL8111DL Gigabit LAN)
