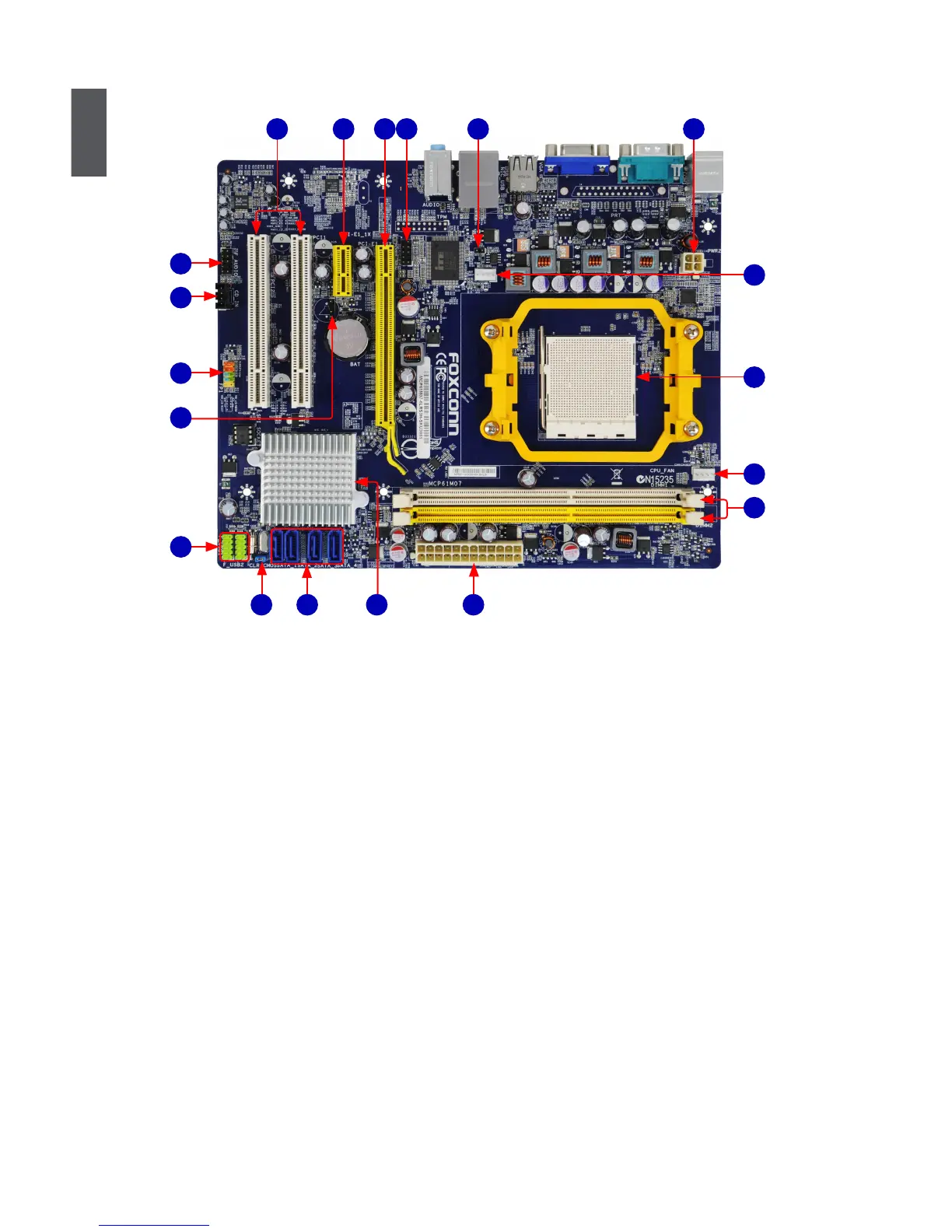

1-2 Layout
1. 4-pin ATX 12V Power Connector
2. Chassis Intrusion Alarm Header
3. CIR Connector
4. PCI Express x16 Slot
5. PCI Express x1 Slot
6. PCI Slots
7. Front Audio Connector
8. CD_IN Connector
9. Front Panel Connector
10. Speaker Connector
11. Front USB Connectors
12. Clear CMOS Jumper
13. SATA Connectors
14. Chipset: MCP61P
15. 24-pin ATX Power Connector
16. DDR3 DIMM Slots
17. CPU_FAN Header
18. CPU Socket
19. System Fan Header
Note : The above motherboard layout is for reference only, please refer to the physical mother-
board for detail.
