Create RAID 1 (Mirrored)
1. Select “Mirrored” from the RAID Mode.
2. Select two hard disks to build our RAID1 system.
3. Press [TAB] to navigate to left drive panel, then use [→] and [↓] keys to add the hard
disks to the right drive panel.

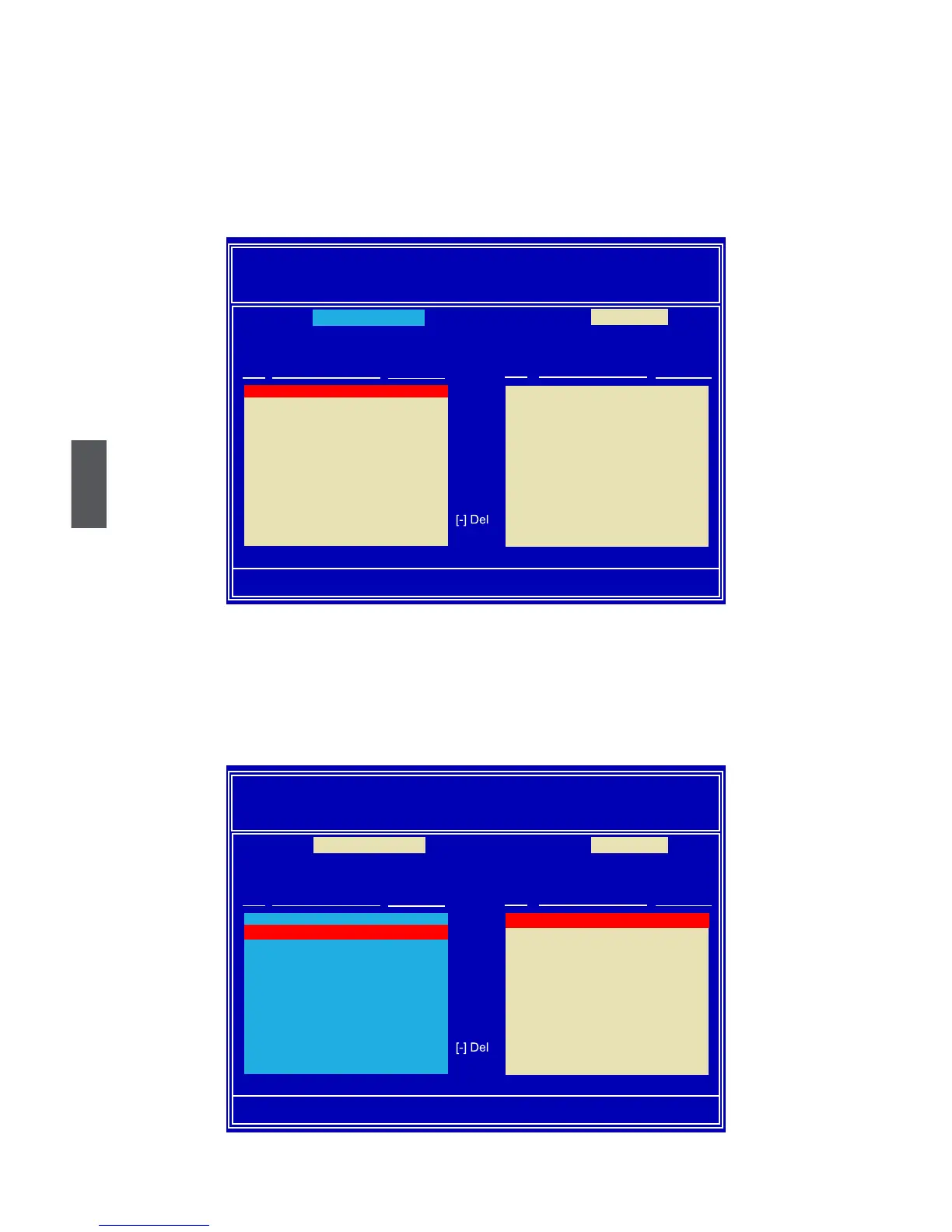

MediaShield BIOS Jul 27 2007
- Dene a New Array -
RAID Mode: Mirrored Stripe Block: Optimal
Free Disks Array Disks
Port Disk Model Capacity Port Disk Model Capacity
[+] Add
[-] Del
[ESC] Quit [F6] Back [F7] Finish [TAB] Navigate [↑↓] Select [ENTER] Popup
Optimal
0.0 WDC WD1200JD-9 111.79GB
0.2 Hitachi HDT725 232.88GB
0.1 HDS728080PLA38 76.69GB
0.3 ST3320620AS 298.09GB
Mirrored
0.0 WDC WD1200JD-9 111.79GB
MediaShield BIOS Jul 27 2007
- Dene a New Array -
RAID Mode: Mirrored Stripe Block: Optimal
Free Disks Array Disks
Port Disk Model Capacity Port Disk Model Capacity
[+] Add
[-] Del
[ESC] Quit [F6] Back [F7] Finish [TAB] Navigate [↑↓] Select [ENTER] Popup
Mirrored
Optimal
0.0 WDC WD1200JD-9 111.79GB
0.1 HDS728080PLA38 76.69GB
0.2 Hitachi HDT725 232.88GB
0.3 ST3320620AS 298.09GB
0.2 Hitachi HDT725 232.88GB
0.1 HDS728080PLA38 76.69GB
