Two topics will be covered in the following sections :
1). Creating a Bootable Array - Installing a new Windows XP in a brand new RAID
system.
2). Creating a Non-Bootable Array - Existing Windows XP system with new RAID
built as data storage.
Install SATA Hard Disks before we continue :
■ Shut down your computer.
■ Install SATA hard disks into the drive bays, connect all power and SATA cables.
To achieve the best performance and reliability, we highly recommend you
using the hard disks with the same brand, size and model number. Though
we are using four different hard disks as an example to describe RAID
function in this chapter, it is only helpful in explaining what the nal disk
volume of the RAID array will be. In the real world, using the same model to
build a disk array is strongly recommended.
W
A
R
N
I
N
G
!

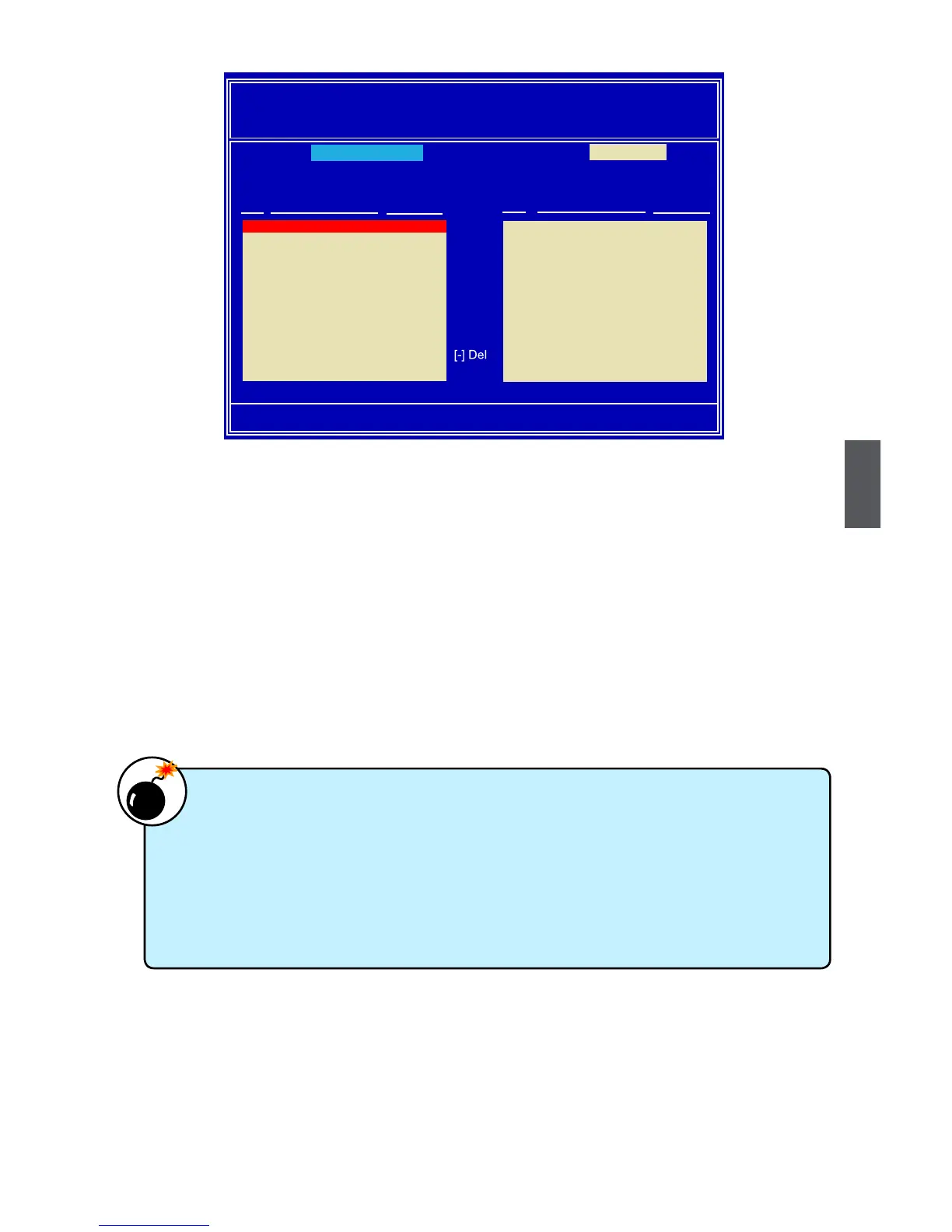

MediaShield BIOS Jul 27 2007
- Dene a New Array -
RAID Mode: Mirrored Stripe Block: Optimal
Free Disks Array Disks
Port Disk Model Capacity Port Disk Model Capacity
[+] Add
[-] Del
[ESC] Quit [F6] Back [F7] Finish [TAB] Navigate [↑↓] Select [ENTER] Popup
Optimal
0.0 WDC WD1200JD-9 111.79GB
0.2 Hitachi HDT725 232.88GB
0.1 HDS728080PLA38 76.69GB
0.3 ST3320620AS 298.09GB
Striped
0.0 WDC WD1200JD-9 111.79GB
To Next Page
