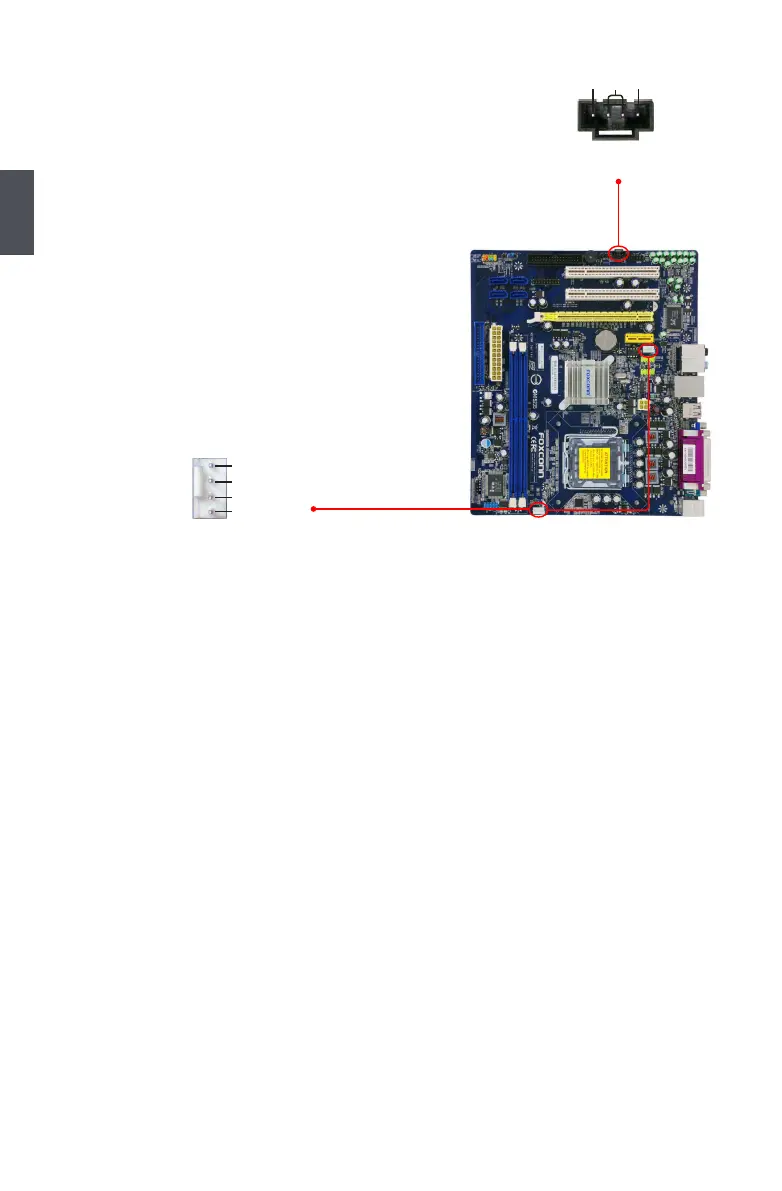

Audio Connector : CD_IN
CD_IN is a Sony standard audio connector, it can be
connected to a CD/DVD-ROM drive through a CD/
DVD audio cable.
Fan Connectors : CPU_FAN, SYS_FAN
There are two main fan headers on this motherboard.
The fan speed can be controlled and monitored in “PC
Health Status” section of the BIOS Setup. These
fans can be automatically turned off after the system
enters S3, S4 and S5 sleeping states.
CPU_FAN / SYS_FAN
GND
POWER
SENSE
CONTROL
CD_IN
CD_L GND CD_R
1
