Foxconn M7VMX series - Setting Up a Non-Bootable RAID Array

5
88
4. The stripe block value is xed and not changeable.
Press <F7> to nish the setting.
5. Press [Y] to continue, and press [Y] again to select "Clear MBR".

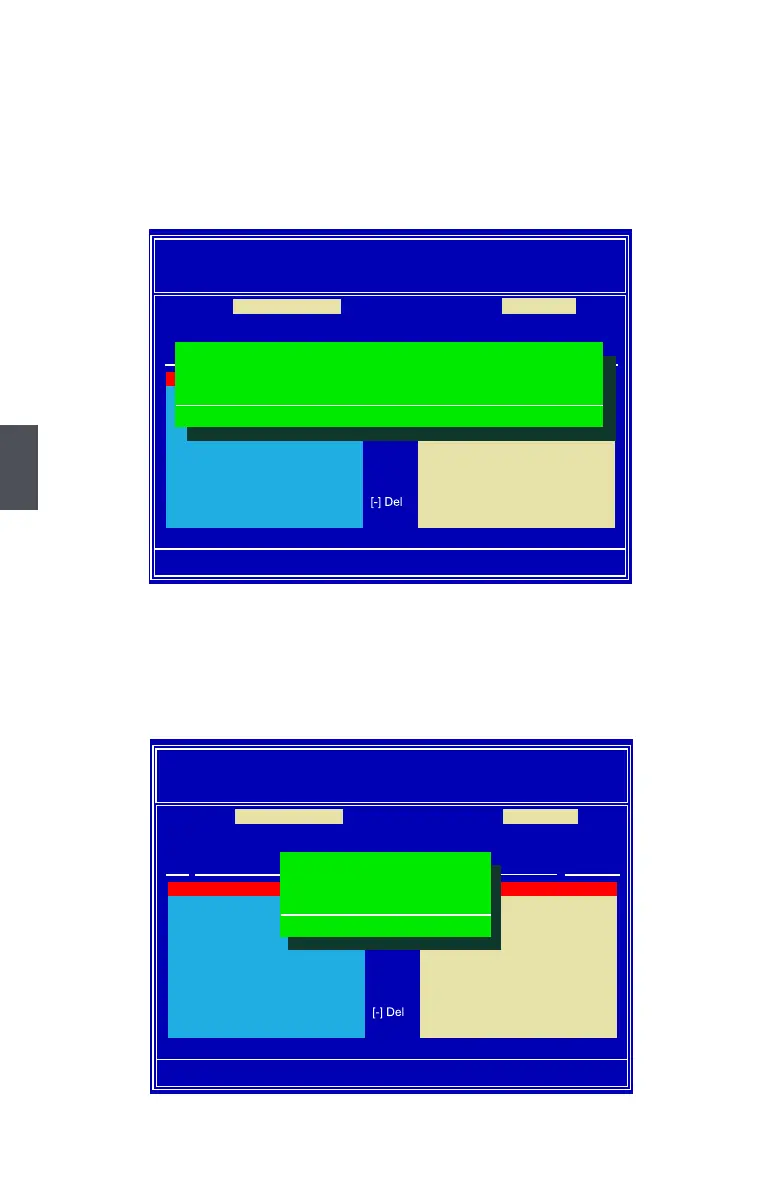

MediaShield BIOS Jul 27 2007
- Dene a New Array -
RAID Mode: Mirrored Stripe Block: Optimal
Free Disks Array Disks
Port Disk Model Capacity Port Disk Model Capacity
[+] Add
[-] Del
[ESC] Quit [F6] Back [F7] Finish [TAB] Navigate [↑↓] Select [ENTER] Popup
Spanned
Optimal
0.0 WDC WD1200JD-9 111.79GB
0.1 HDS728080PLA38 76.69GB
0.2 Hitachi HDT725 232.88GB
0.0 WDC WD1200JD-9 111.79GB
0.3 ST3320620AS 298.09GB
All data on new (or added) disks will be overwritten. Continue?
[Y] YES [N] NO
MediaShield BIOS Jul 27 2007
- Dene a New Array -
RAID Mode: Mirrored Stripe Block: Optimal
Free Disks Array Disks
Port Disk Model Capacity Port Disk Model Capacity
[+] Add
[-] Del
[ESC] Quit [F6] Back [F7] Finish [TAB] Navigate [↑↓] Select [ENTER] Popup
Spanned
Optimal
0.0 WDC WD1200JD-9 111.79GB
0.1 HDS728080PLA38 76.69GB
0.2 Hitachi HDT725 232.88GB
0.0 WDC WD1200JD-9 111.79GB
0.3 ST3320620AS 298.09GB
Clear MBR?
[Y] YES [N] NO
