T2000 TPMS Service Tool Manual_English_V1.01

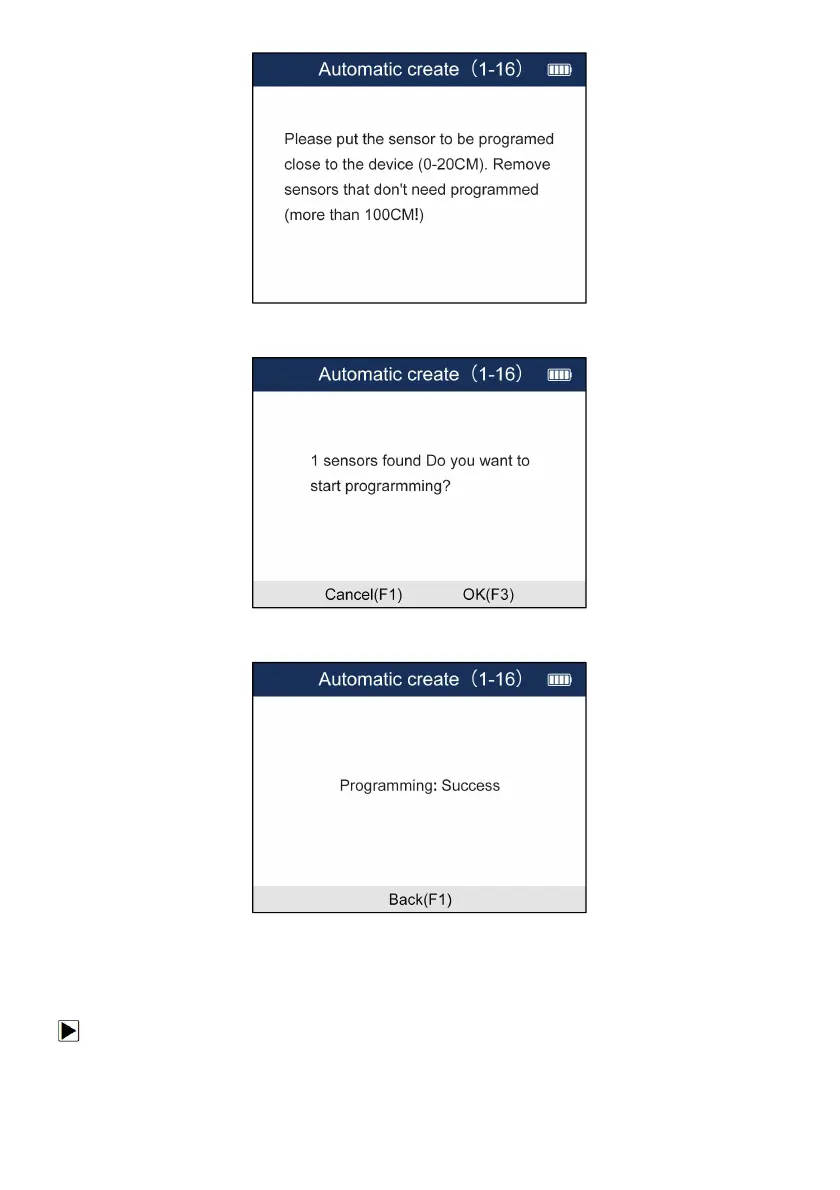

Figure 5-29 Sample Automatic Create Screen
4. Press F3 to start the programming when the tool detect the sensor.
Figure 5-30 Sample Sensor Detection Screen
8. Press F1 to exit after the programming successfully.
Figure 5-31 Sample Programming Success Screen
5.3.4 Clone By OBD
This function lets users to write in the saved sensor information to Foxwell sensors after
performing Read IDs from Vehicle in Learning function.
To create sensor ID manually:
1.Highlight TPMS from the Main Menu and select the vehicle model as need.
2.Select Programming--Clone by OBD from the available menu.
To Next Page
