LGT100 Rev0309
12

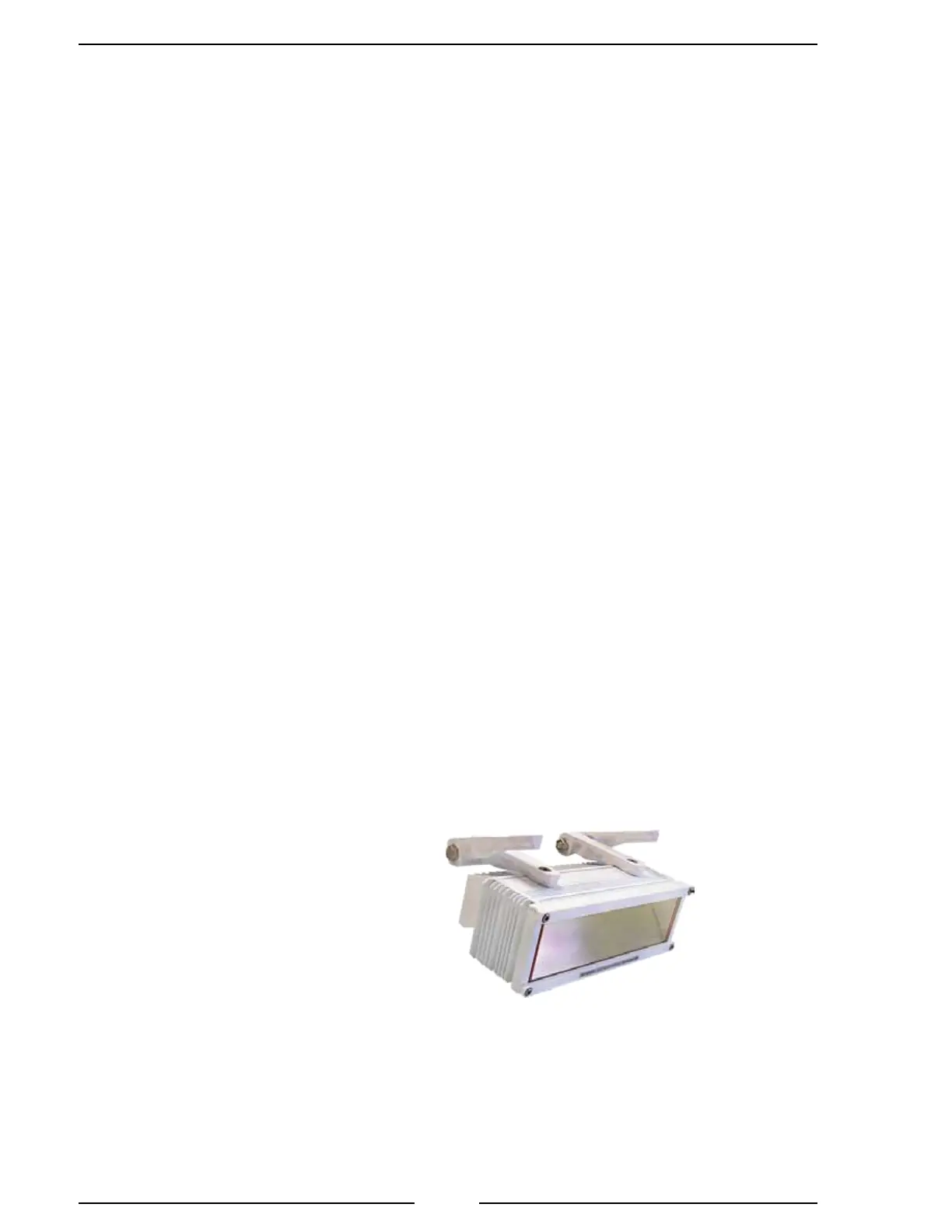

Install Aerial Mount Models 300
Before mounting check the identication label on the lamphead for specic voltage
and current requirements. Check that the length of the power cord is correct.
Note: Before drilling holes place the light in position to check for t. Ensure
that the lamphead will clear all obstructions.
1. Place the light in position.
2. Mark the mounting hole locations and through hole for the wiring. Use the
lamphead and attached brackets as a template.
3. Drill mounting holes.
4. Secure the mounting bracket(s). Use 5/16-18 SS hardware.
5. Ensure that approved strain relief for the wiring is installed.
6. Adjust the lamphead angle by loosing the nuts at the bracket pivot point, set
at desired position and tighten nuts.
Wiring
12/24 VDC
Connect the BLACK wire to GROUND.
Connect the RED (or WHITE) wire to POWER.
120/240 VAC
Connect the GREEN wire to chassis GROUND.
Connect the WHITE wire to RETURN.
Connect the BLACK wire to POWER.
FCA300
To Next Page
