FRC NightMaster User Manual

LGT100 Rev0309
9
For DC Powered Lights:
Connect black to black, white to red
For AC Powered Lights:
Connect black to black, white to white, silver braid to green.

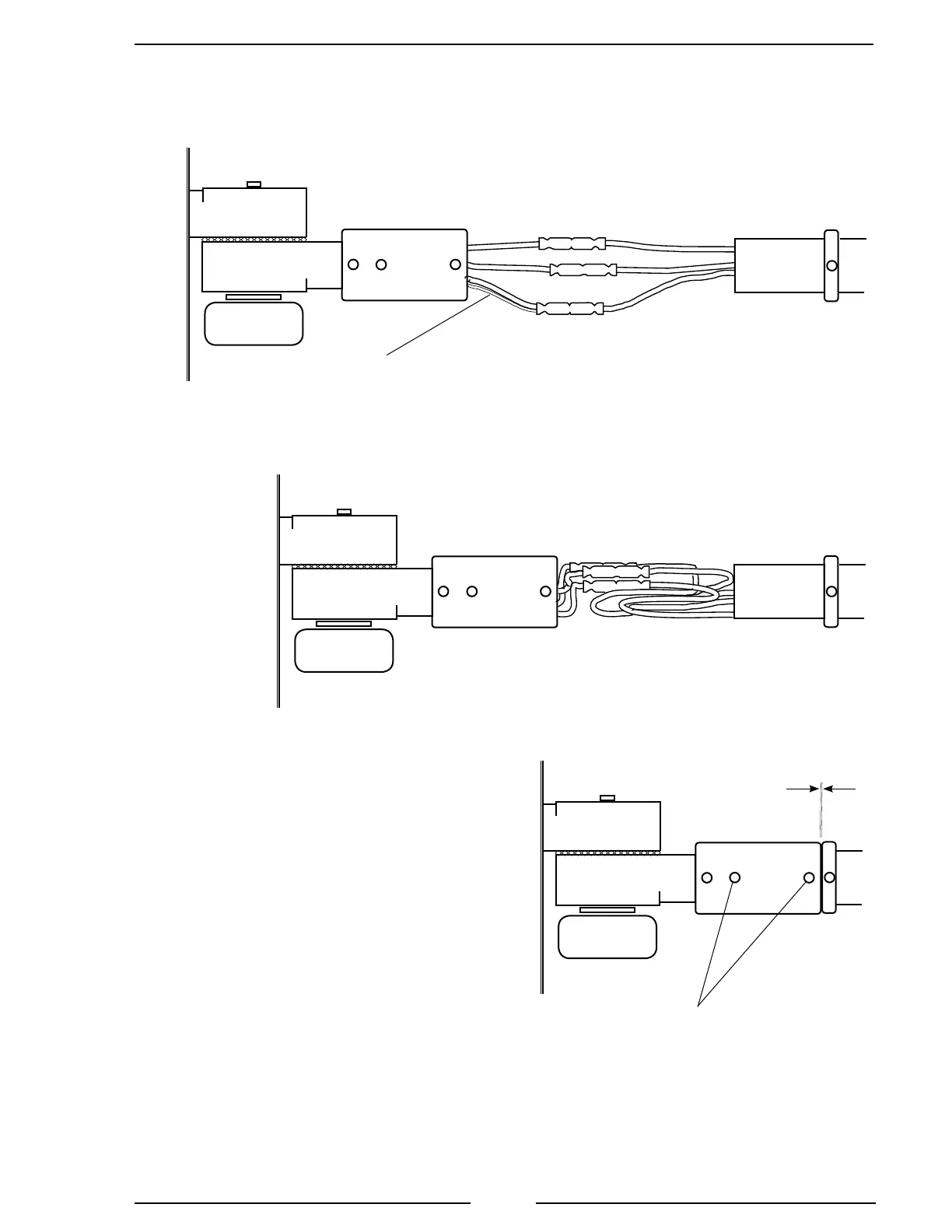

Figure 1. Assemble Lamphead and Telescopic Pole
Dimension A should be less than 0.015"
(The thickness of a folded piece of paper).
If A is larger, a wire is probably caught.
Disassemble and check the for wire
insulation damage. If there is no damage,
reassemble.
Loop the excess wire in a
zig-zag to take up the slack
and tuck into the pole.
Slide the lamphead assembly onto the pole.
Make sure that the wires are not caught and
squeezed by the lip of the pole.
Note: The 512 telescopic pole must be
installed before the lamphead is attached
if the small diameter hole is used. Refer
to Install Models 510, 512 Top Mount
Telescopic Poles.
Apply thread lock and
tighten the set screws.
A
BLACK
WHITE
SILVER
BRAID
BLACK
WHITE
GREEN
DC powered lights will
only have two wires.
Green Wire
Optimum lamphead only.
