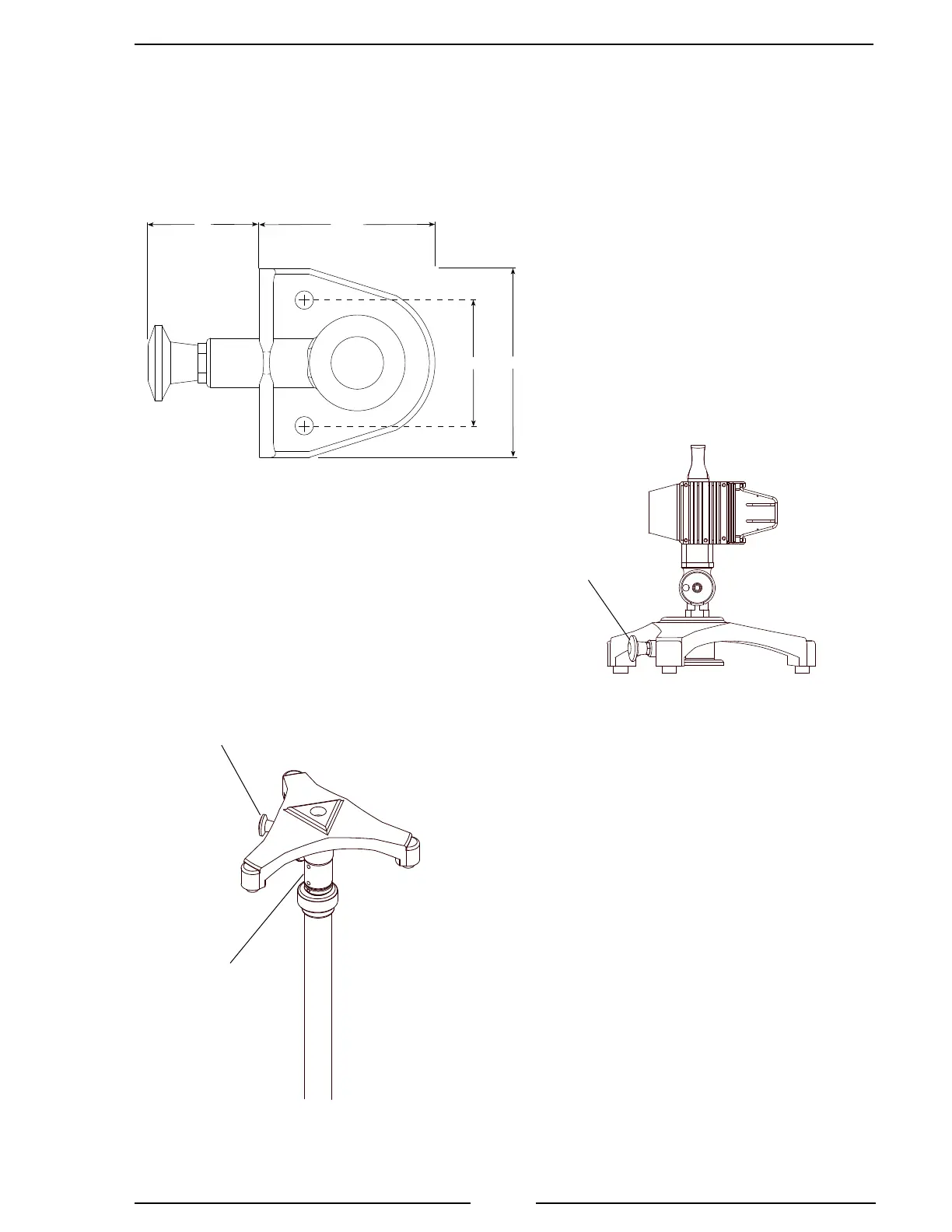

Figure 8. Install Portable Light Quick Release Bracket
3 1/8"
2 1/4"
2"
3 3/8"
703
Quick Release Bracket for
Flat Surface Mountingt
Drawings may not be to scale.
DO NOT USE AS A TEMPLATE
Base (lamphead not shown)
shown on a telescopic pole with a
705 quick release bracket.
703
Quick
Release
Note: For a retrot the lamphead to pole adapter
P/N LT100 must be removed and replaced with the
705 adapter P/N X-LT214-705.
705
Quick
Release
705
Pole
Mount
Adapter
Base with Focus lamphead
shown on a 703 quick
release bracket.
Hardware Recommendations
For 703 mounts:
5/16-18 SS
