LGT100 Rev0309
21

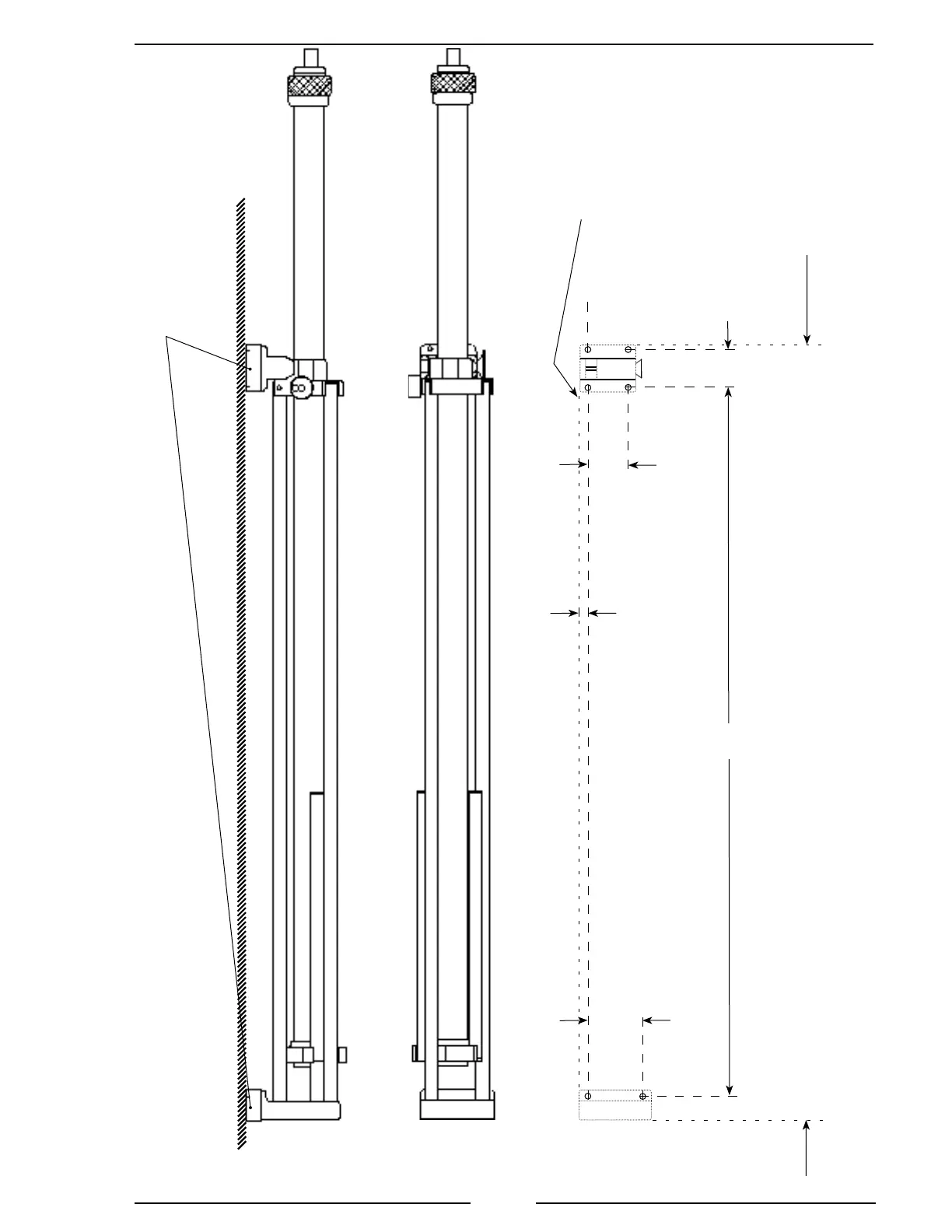

Figure 7. Install T
ripod Quick Release Bracket Set
SIDE VIEW
FRONT
VIEW
T
ripods with
Focus lampheads
use a 3/4" spacer
under both
mounting brackets.
2"
3"
39 3/4" for 600, 656
26 1/2" for 642
2"
T
otal distance from
top to bottom of
mount brackets:
43 1/2" for 600, 656
30 1/4" for 642
Align the left sides
of the brackets and
the left side mounting
holes for the tripod to
t correctly
.
9/16"
The pull knob
must be to the
right side.
20
22
Table of Contents
Table of Contents
2
Contents
2
Introduction
4
Overview
4
Features
4
Specifications
5
Table 1. Lamphead Guide
5
Safety Summary
6
Installation Instructions
8
Install Lamphead on Telescopic Pole
8
Figure 1. Assemble Lamphead and Telescopic Pole
9
Install Recessed Mount Models 200, 230, 250
10
Table 2. Recessed Mount Dimensions
11
Figure 2. Install Recessed Mount
11
Install Aerial Mount Models 300
12
Figure 3. Install under Aerial Mount
13
Install Top Mount Telescopic Pole Models 510, 512
14
Figure 4. Install Top Mount Telescopic Pole
15
Install Side Mount Telescopic Pole Models 530, 540, 542
16
Figure 5. Install Side Mount Telescopic Pole
17
Install Pedestal Mount Models 570, 580
18
Figure 6. Install Pedestal Mount
19
Install Quick Release Bracket Set for Tripod Models 600, 642, 656
20
Figure 7. Install Tripod Quick Release Bracket Set
21
Install Quick Release Bracket for Portable Model 700
22
Figure 8. Install Portable Light Quick Release Bracket
23
Install Brow Mount Models 800, 850
24
Figure 9. Install Contour and Flat Brow Mounts
25
Maintenance
26
Bulb Replacement Optimum and Focus
26
Cleaning
26
Figure 10. Bulb Replacement Optimum and Focus
27
Bulb Replacement Nightmaster
28
Bulb Replacement Triple Cluster
28
Figure 11. Bulb Replacement Nightmaster
29
No-Scratch for Model 530 Telescopic Pole
30
Install No-Scratch Guide Collar and Guide Rail
30
Install No-Scratch Rubber Bumpers (Focus Lamphead Only)
30
Figure 12. No-Scratch
31
Raised Pole Warning Switch and Indicator
32
Overview
32
Description
33
Figure 13. Raised Pole Warning Switch Housing Locations
33
Parts List
34
Figure 14. Raised Pole Warning Switch Parts List
34
