Install Top Mount Telescopic Pole Models 510, 512
When positioning a telescopic pole ensure that the lamphead will clear all
obstructions and the twist lock will be accessible.
Note: The 512 telescopic pole should be installed before the lamphead is
attached. Two set screws allow the ange to be removed and the pole will
t up through a 1 5/8" hole. To install a fully assembled 512 pole down
through the roof, a 2 1/2" hole will be needed so the handle and twist lock
will t through.
1. Check the light position for t and freedom of operation
2. Mark the footprint of the mounting ange.
3. Drill mounting holes.
Note: The 512 requires a bead of RTV or similar sealant be applied between
the mounting surface and the bottom outer edge of the ange.
4. For 512 apply a bead of sealant around the bottom outer edge of the ange.
5. Secure the mounting ange. Use 1/4-20 SS hardware. Install a backing plate
if necessary for a sturdy mounting.
6. Ensure that approved strain relief for the wiring is installed.
Wiring
12/24 VDC
Connect the BLACK wire to GROUND.
Connect the RED wire to POWER.
120/240 VAC
Connect the GREEN wire to chassis GROUND.
Connect the WHITE wire to RETURN.
Connect the BLACK wire to POWER.

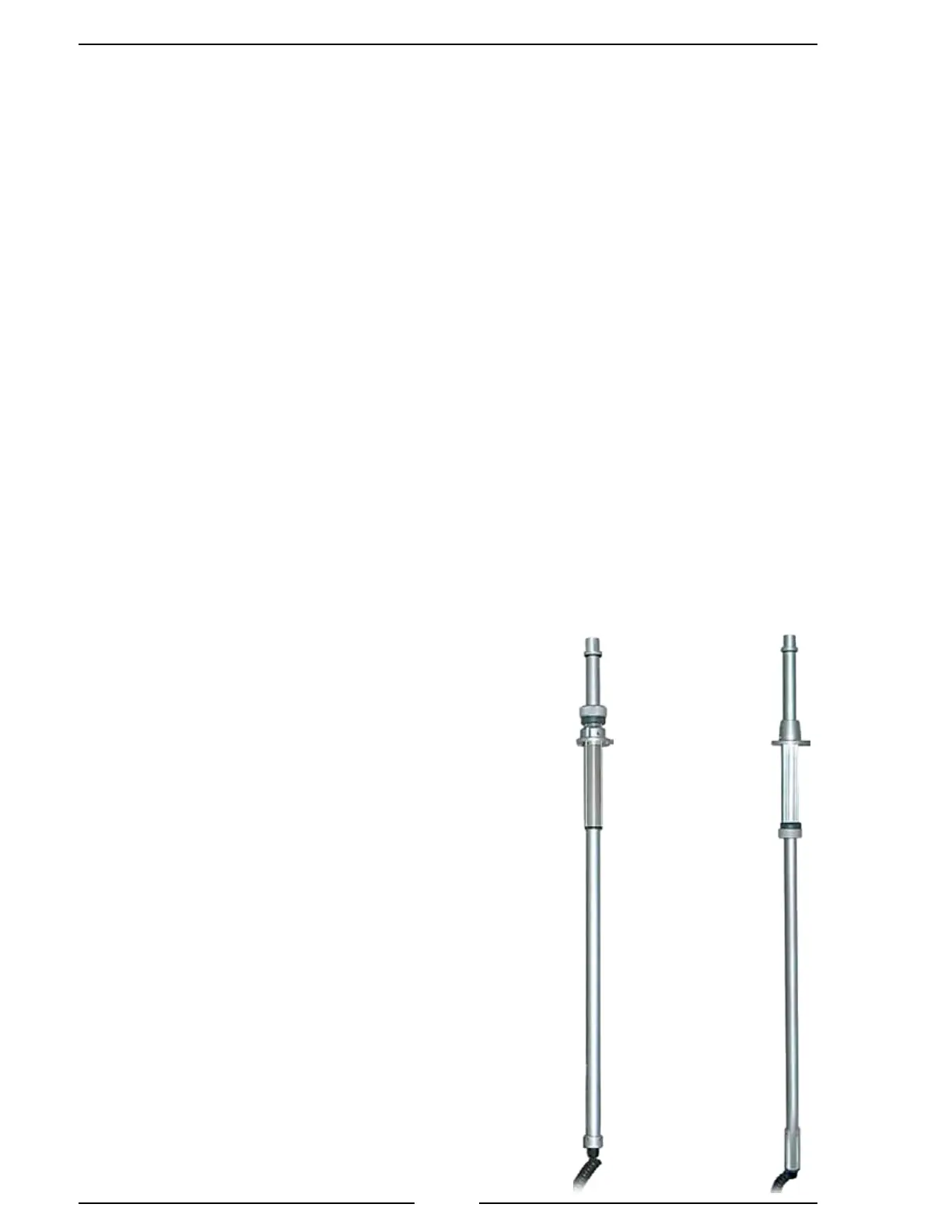

510
Top Mount
Pull Up
512
Thru-The-Roof
Push Up
