Part No. 90-0113-00
Fdmman2.p65 2/98
CAUTION This equipment is not ignition
protected and employs components that tend
to produce arcs or sparks. To reduce the risk
of fire or explosions, do not install in
compartments containing batteries or
flammable materials or areas in which
ignition-protected equipment is required.
INSTALLATION PRECAUTIONS
For continued protection against risk of
electric shock, use only the ground-fault
circuit interrupter (GFCI) type receptacles
detailed in this manual. Other types may
fail to operate properly when connected
to this inverter, resulting in a potential
shock hazard.
WARNING
CAUTION To reduce the risk of electric shock
and prevent premature failure due to corro-
sion, do not mount where exposed to rain,
dripping or spray.
CAUTION To prevent fire, do not obstruct
ventilation openings. Do not mount in a
zero clearance compartment, overheating
may result.
CAUTION
Risk of electrical shock. Both
AC & DC voltage sources are terminated
inside this equipment.
Each circuit must
be individually opened before servicing.
When solar array is exposed to light, it
supplies a DC voltage to the battery and
this equipment.
CAUTION
Risk of electrical shock. Do not
remove cover, no user serviceable parts
inside.
Refer servicing to qualified service
personnel.

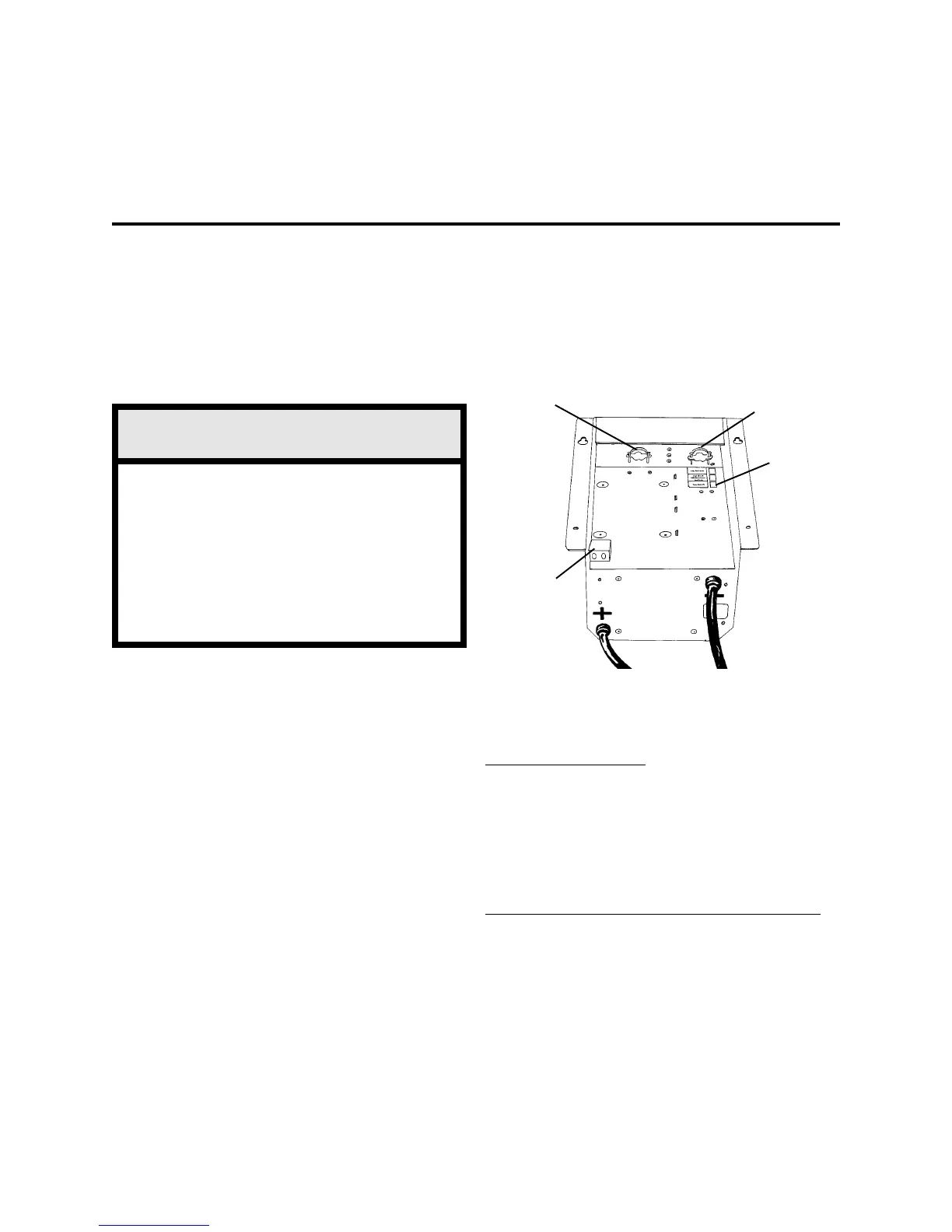

AC Input**
Chassis
Ground
Lug
AC Output*
Remote
Jack
*Freedom 20D has 2 AC outputs.
**Freedom 25 has 2 AC inputs.
Typical Tools Needed
Flathead and Phillips Screwdrivers
Wrench or pliers for connecting battery cables
Drill
Wire Cutters
Wire Strippers
Misc. assortment of wire ties and connectors
Accessories Needed to Complete Installation
Fuse as required by NEC. Refer to page 25.
Twisted Pair wire for Link Instrumentation
Electrical wire (10 gauge) for AC wiring
BOTTOM VIEW
18
