070
.610-IOM (JUL 21)
Page 49
RWF II R
otary Screw Compr
essor Units
Maintenance
1.
Shut off control po
wer
.
2.
Remov
e DIN connector plug from transmitter
.
3.
Loosen set s
crews.
4.
Remo
ve transmitter unit.
5.
Install new tr
ansmitter unit.
6.
T
ighten set screw
s.
7.
Apply DIN connector plug to transmitter
.
8.
T
urn on control power
.

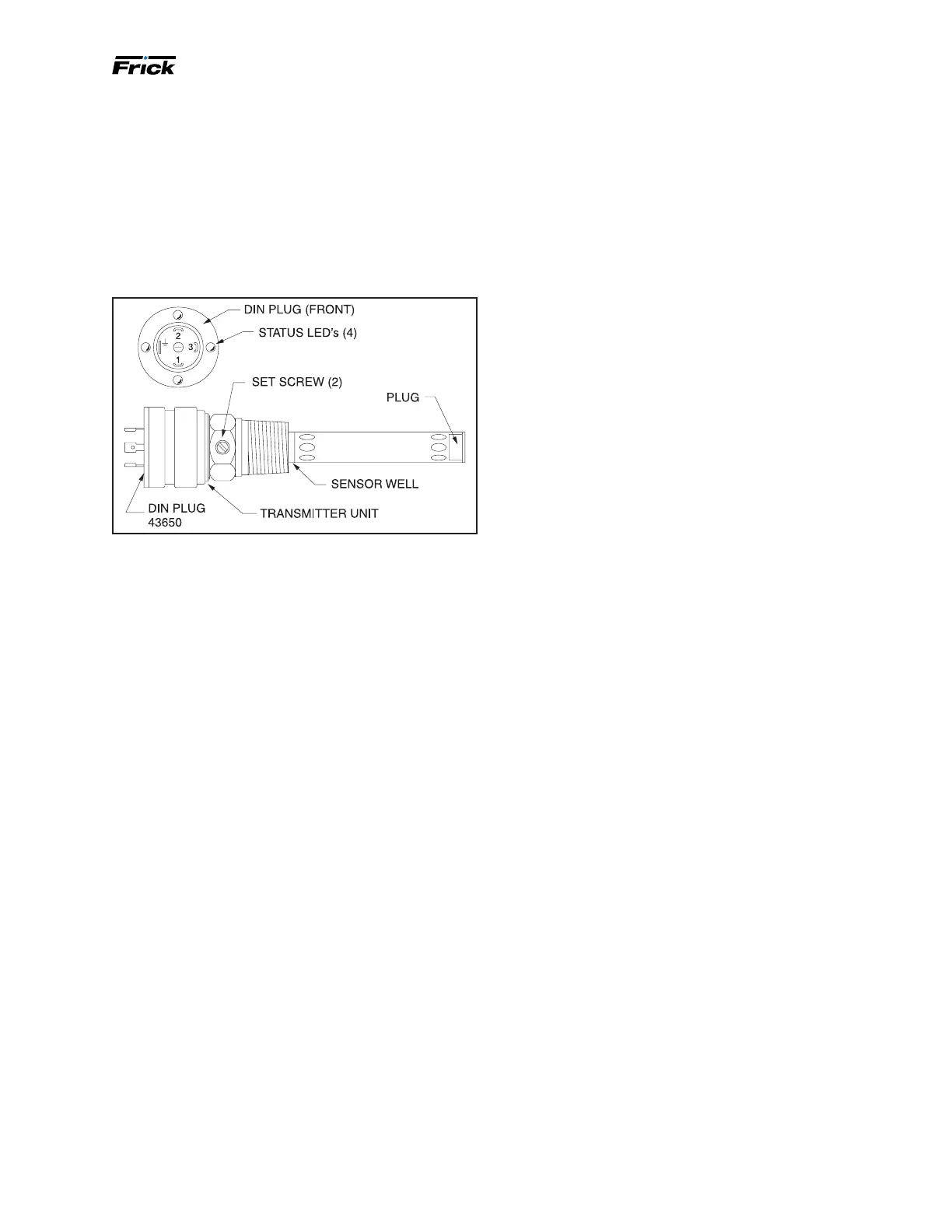

Figure 52: Oil le
vel transmitter
48
50
