Frick RWF II 100 User Manual

070.610-IOM (JUL 21)
Page 60
RWF II Rotary Screw Compressor Units
Maintenance
SC-5: INLET
PRESSURE
SB-4: DAMPER
OIL FEED
SC-3:
MOVEABLE
SLIDE
STOP
SM-1: MAIN OIL
INJECTION
SL-1: LOW Vi
LIQUID INJECTION
SV-1: VAPOR
INJECTION
SC-9: CLOSED
THREAD
DRAIN
SC-9: CLOSED
THREAD DRAIN
SC-8: CLOSED
THREAD DRAIN
SC-4: INLET
OIL DRAIN
SC-6: DISCHARGE
PRESSURE
SC-7: SEAL
WEAPAGE
SP-1: HIGH
PRESSURE
OIL
SUCTION PORT
14” CLASS 300 FLANGE
SB-3:
DISCHARGE
BEARINGS
SL-2:
HIGH Vi LIQUID
INJECTION
SB-2: INLET
BEARINGS AND
BALANCE
PISTON
ST-1: THERMOWELL SUCTION
SD-1: COALESCER BLEED
DISCHARGE PORT
10” CLASS 300 FLANGE
SC-10:
OIL DRAIN
TW-1:
THERMOWELL
DISCHARGE

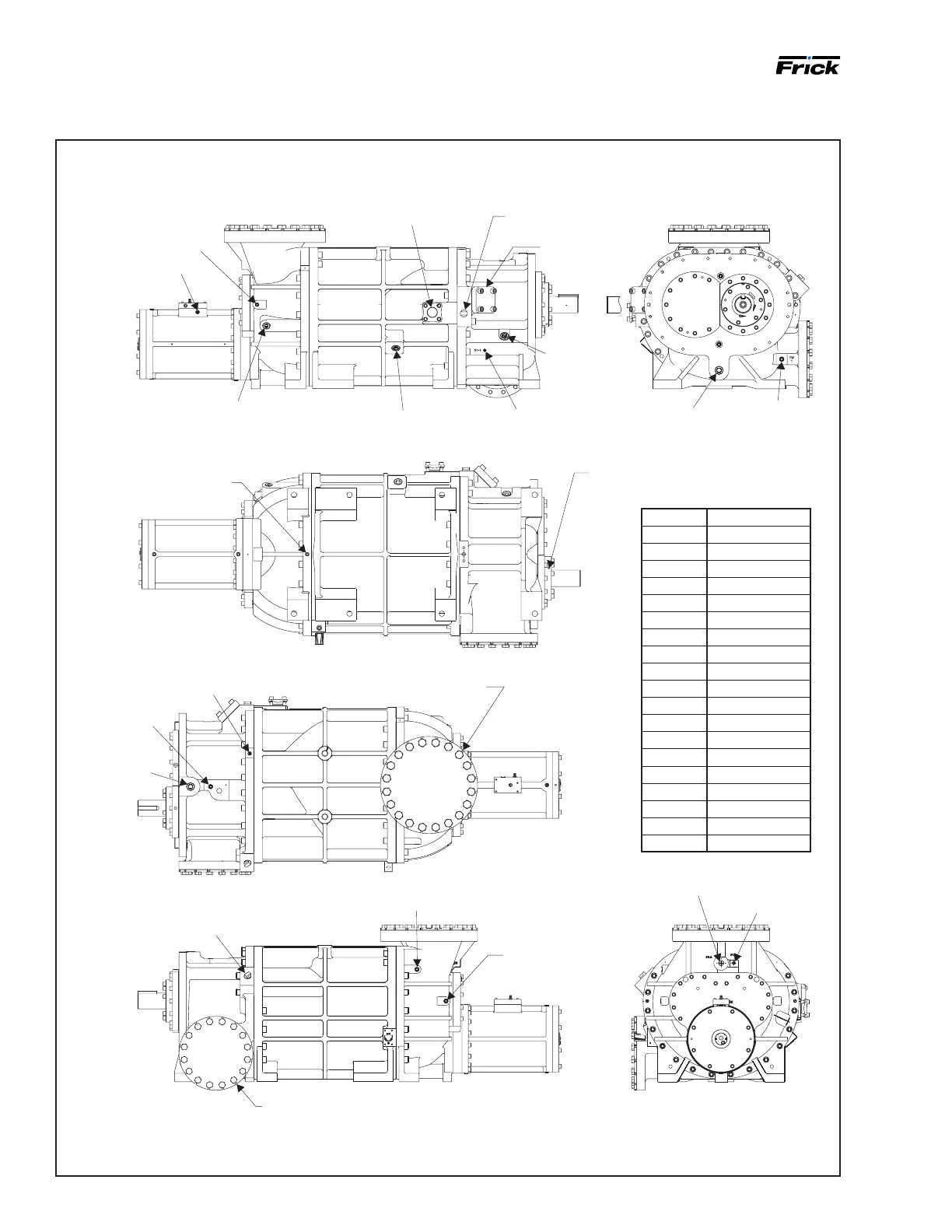

Figure 60: Compressor port locations - RWF II 1080
Port Size
SB-2 3/4-14
SB-3 1½-11½
SB-4 1-11½
SC-3 1/2-14
SC-4 1/2-14
SC-5 3/8-18
SC-6 3/8-18
SC-7 1/8-27
SC-8 1¼-11½
SC-9 1½-11½
SC-10 1½-11½
SD-1 1/2-14
SL-1 1¼-11½
SL-2 1¼-11½
SM-1 2 in. Sq. ange
SP-1 3/4-14
ST-1 3/4-14
SV-1 3 in. Sq. ange
TW-1 3/4-14
