SPECIFICATIONS
Refrigerant Cycle 9-18k Outdoor Units
E
CS
D
1
3
4
5
6
9
10
8

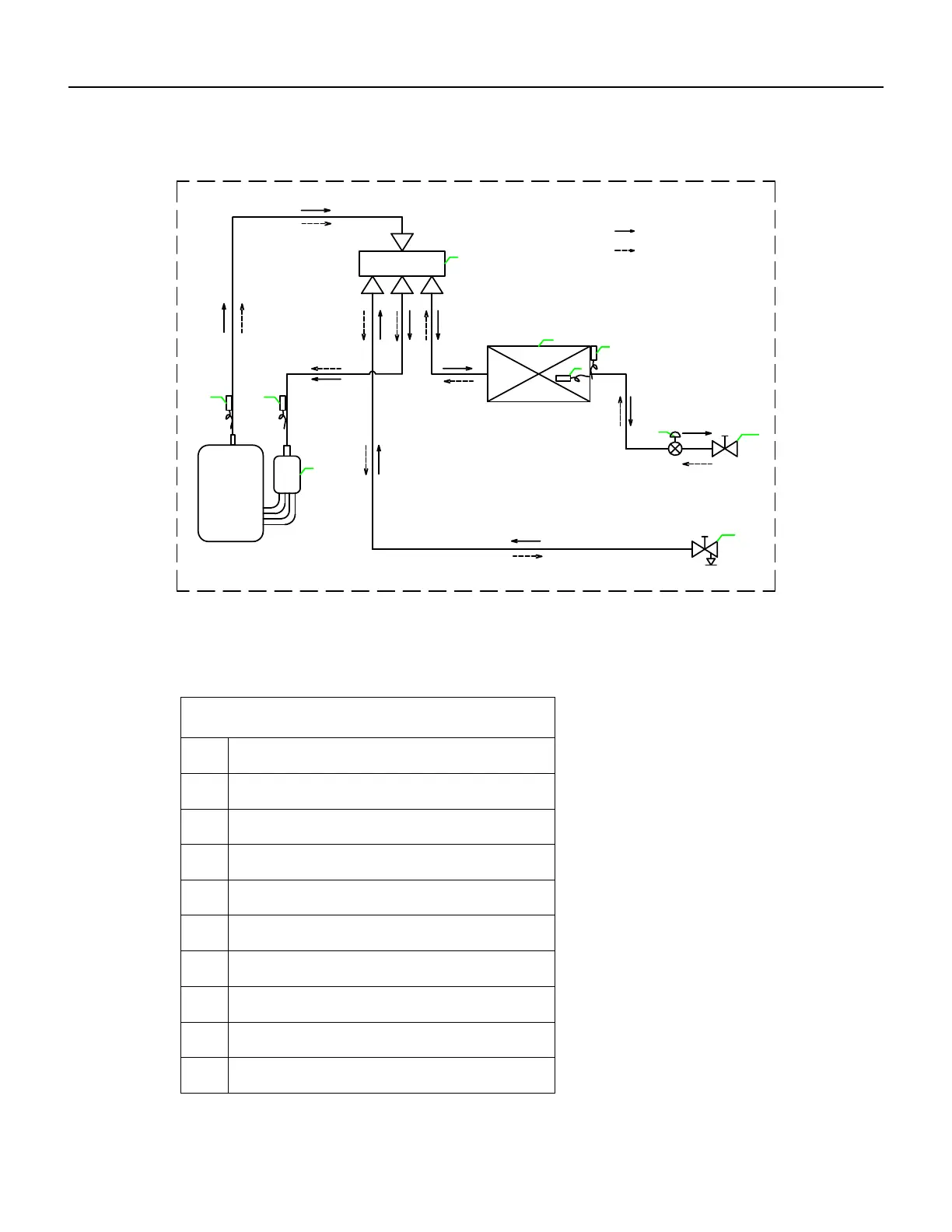

Cooling cycle
Heating cycle
2
7
List of components
1
Compressor
2
3
Suction temperature sensor
4
Discharge temperature sensor
4-way valve
5
6
Outdoor heat exchanger
7
Ambient temperature sensor
8
Coil temperature sensor
9
Electronic expansion valve
10
Stop valve (Liquid)
Stop valve (Gas)
Figure 232
