Friedrich FPHFR9A3A User Manual

88 PB
R-410A SEALED SYSTEM REPAIR
Replace 9k, 12k, and18k Cassette Type unit Compressor and Motor
Step

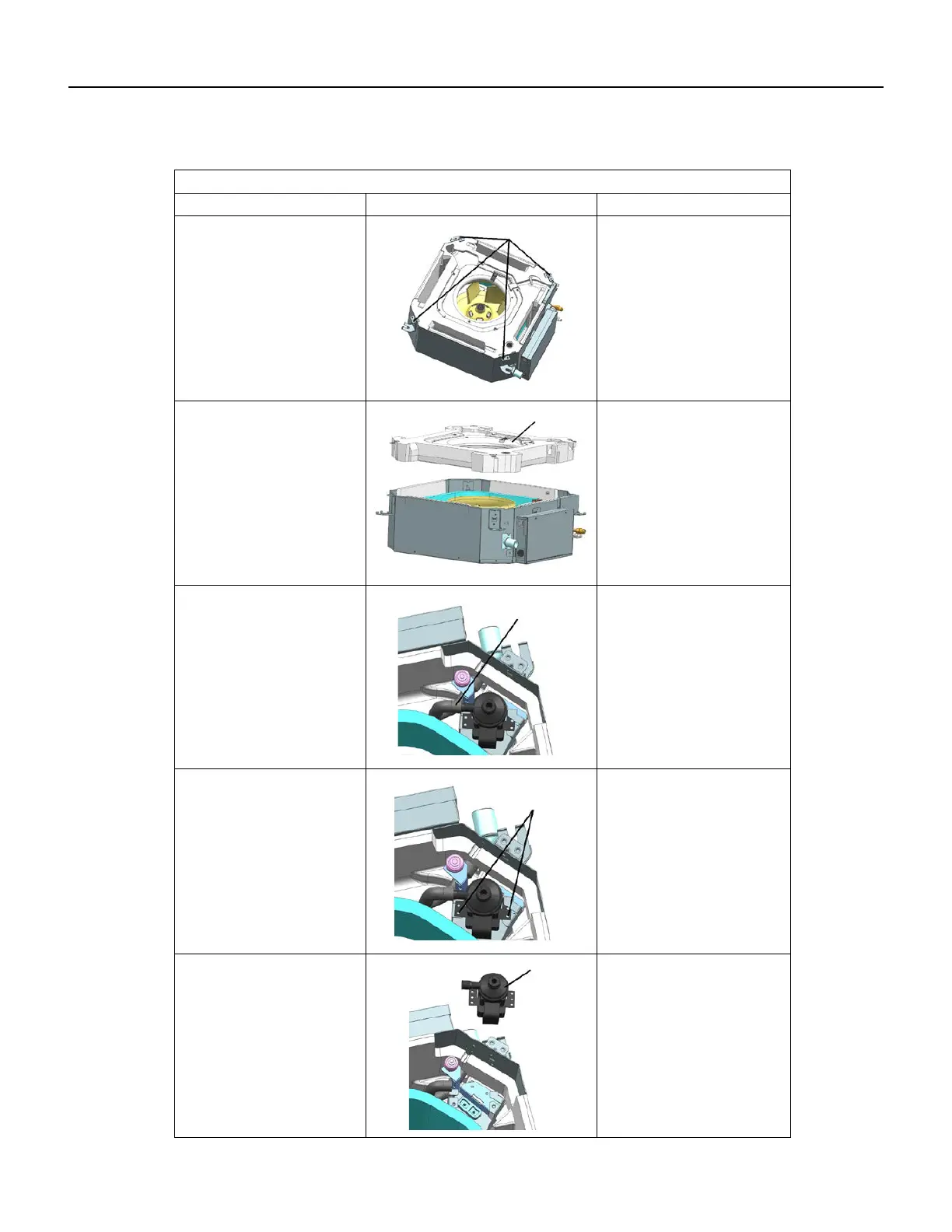

Removal and Installation of Condensate Pump
Illustration
Handli ng Instruction
1.
Loose
n the screws
holding condensat e pan .
Use screwdriver to loosen
the screws holding the
drain pan in place.
2.
Remove the
condensate pan .
Carefully remove the
condensate pan.
outlet pipe .
3.
Pull out the water
Pull out the water outlet
Pipe.
4.
Loosen the screws
holding the condensat e
pump .
Loosen the screws holding
the condensate pump .
5. Take out the pump
and replace it.
Take out the pump and
replace it.
