Friendly Robotics Robomow RL1000 - Three Separate Zones

Zone C
Zone B
Dock Zone
While the pictures show
two wires separate, they
should be adjacent
While the pictures show
two wires separate, they
should be adjacent
Charging
Station
Maximum length of wire
connected to the
Charging Station in one
loop is 2000ft (600m)

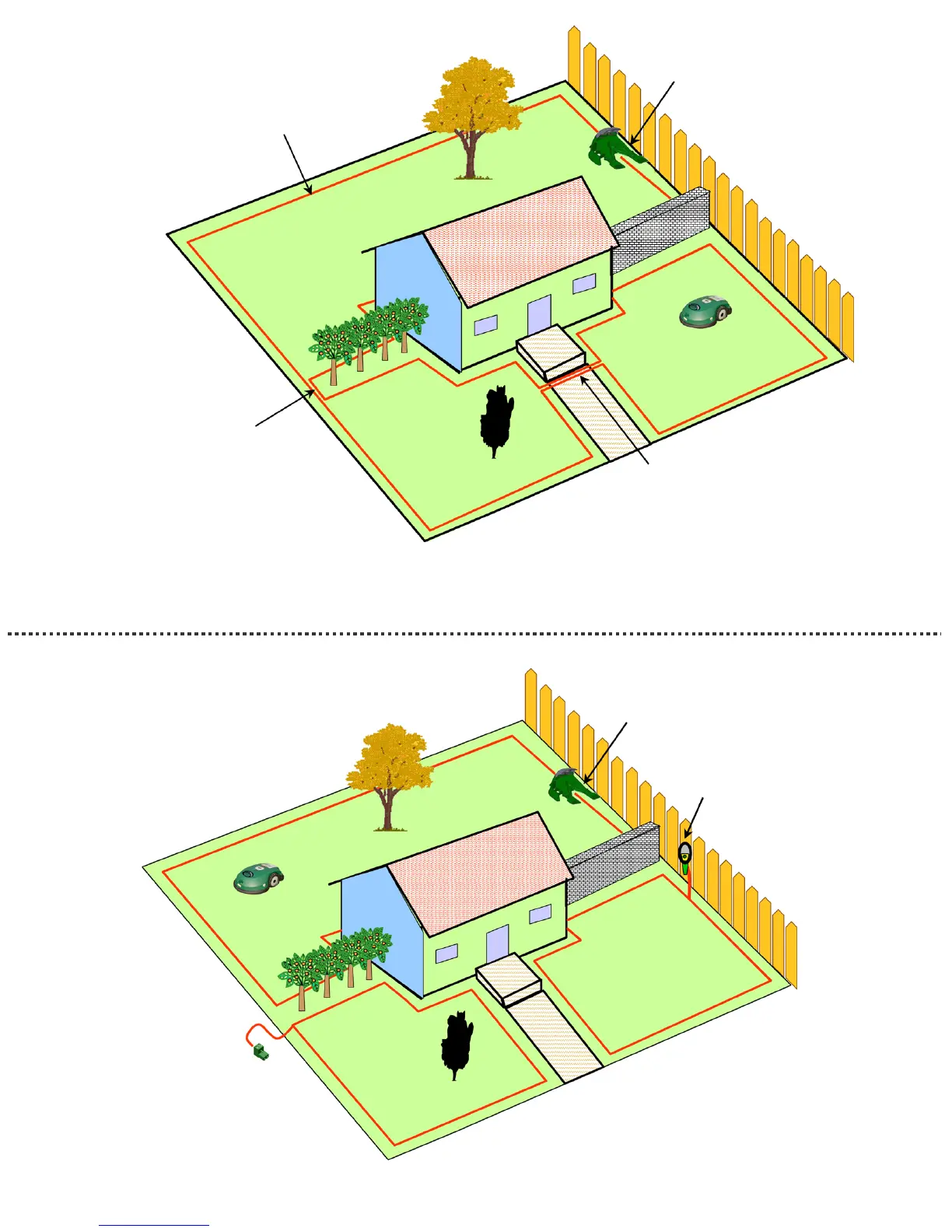

Figure 15b - Three separate zones, all in one loop connected to the Charging Station. Robomow will operate
automatically in the dock zone. In order to mow zones B and C, drive Robomow to the desired zone and press GO.
Zone B
Plot connector for
Perimeter Switch
connection
Charging
Station
Perimeter
Switch
Dock Zone
Back yard
Zone C
Front yard
Figure 15c – Three separate zones.
The back yard is operated by the
Charging Station and the two fron
t
yards are operated by a perimete
r
switch (each separately).
21
