Connecting to the DSL Line
21
9. Configure your WLAN adapter with the security set-
tings entered in the FRITZ!Box.
The WLAN connection between your WLAN adapter and
the FRITZ!Box will be established.
3.5 Connecting to the DSL Line

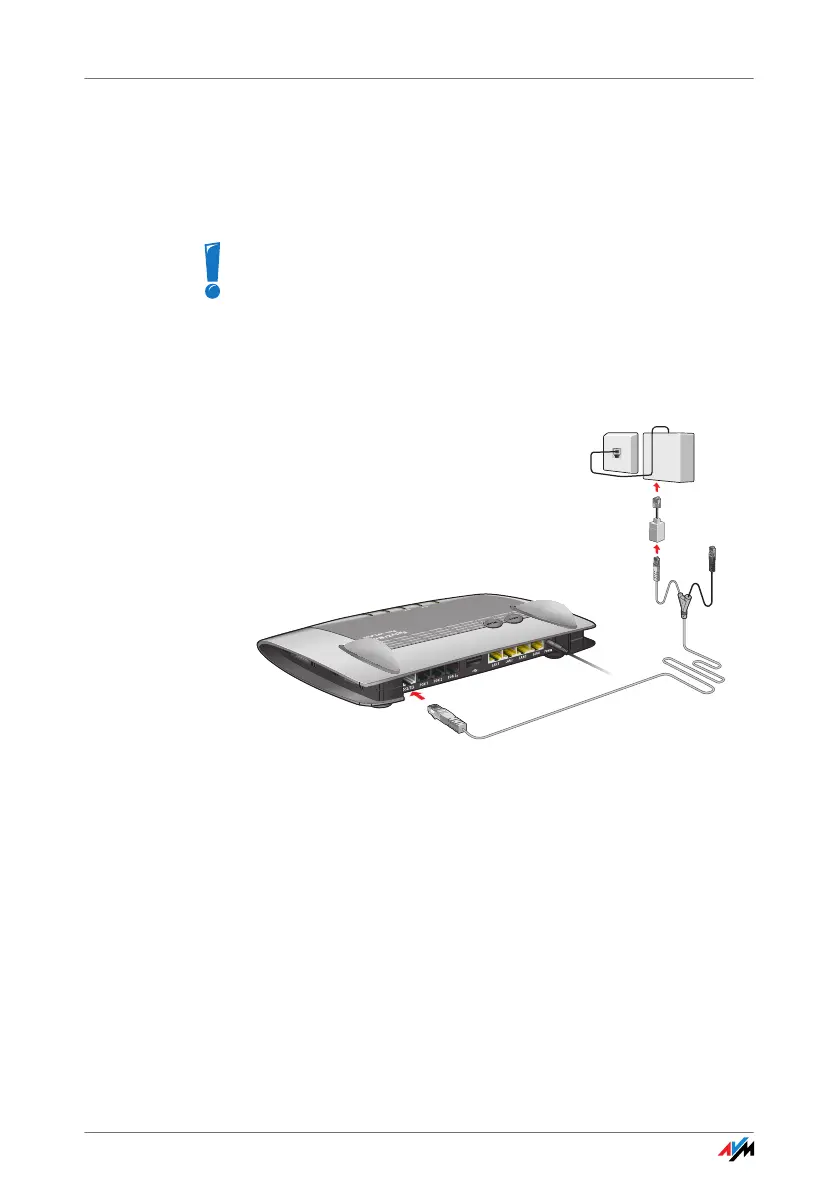

FRITZ!Box on the DSL line: connecting to the telephone socket
Connecting Connect the FRITZ!Box using the DSL/telephone cable
(gray/black) with the DSL line.
1. Connect the longer, gray end of the DSL/telephone
cable to the socket on the FRITZ!Box labeled
“DSL/TEL”.
2. Then take the short, gray end of the cable and insert
the plug (RJ45) into the socket of DSL line.
If the plug does not fit into the DSL socket, connect it
to the black RJ11/RJ45 adapter included in the pack-
age. Then insert the adapter into the DSL socket of
the DSL line.
We strongly recommend the use of a WLAN adapter that
supports WPA or WPA2 (for instance, an AVM
FRITZ!WLAN USB Stick, see also page 18). WEP is out of
date and data encrypted with WEP can be deciphered
within minutes.
INFOINFO
WLANWLAN
Fixed LineFixed Line
InternetInternet
PowerPower / DSLDSL
