22
Connecting to the Analog Telephone Line
As soon as the connection to the DSL line is ready for op-
eration, the “Power/DSL” LED stops flashing and stays lit.
3.6 Connecting to the Analog Telephone Line
Your telephone line is either an analog line or an ISDN line.
If you have an analog telephone line, then connect the
FRITZ!Box as follows:

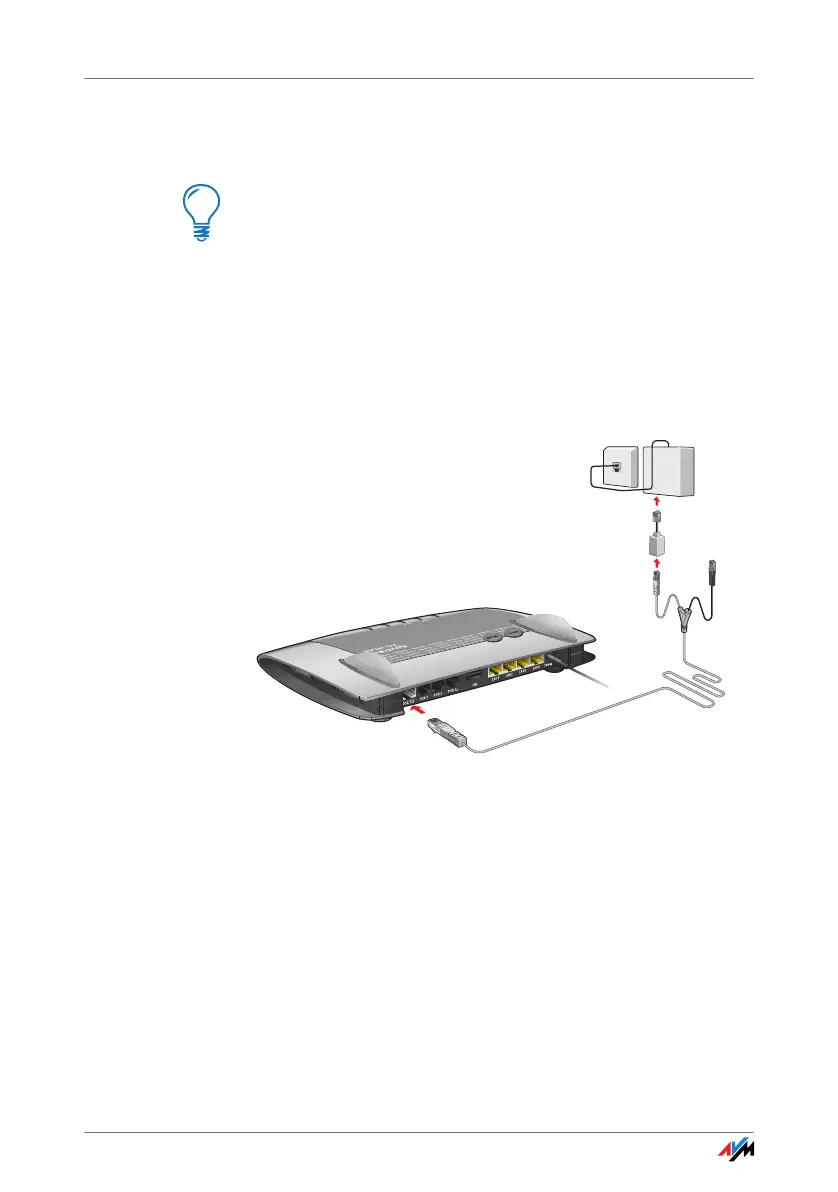

Connecting to the analog telephone line via the DSL splitter
Connecting Connect the FRITZ!Box using the DSL/telephone cable
(gray/black) with the analog line.
1. Connect the longer gray end of the cable to the sock-
et on the FRITZ!Box labeled “DSL/TEL”.
2. Now insert the plug of the shorter, gray end of the ca-
ble into the appropriate socket of your DSL splitter.
If the plug does not fit into the socket on the DSL
splitter, connect it to the gray RJ11/RJ45 adapter in-
cluded in the package. Then insert the adapter plug
into the DSL splitter socket.
You can connect the FRITZ!Box to the Internet via DSL, or
using alternative access technologies. For information
about how to proceed, see the section “Internet Connec-
tions” from page 41.
