Installers and service technicians
Electrical Connection
Fröling Heizkessel- und Behälterbau Ges.m.b.H, Industriestraße 12, A-4710 Grieskirchen, Austria Page 53
Tel +43 (0) 7248 606-0 Fax +43 (0) 7248 606-600 info@froeling.com www.froeling.com
B0190806
7
7.2.8 Heating circuit pump 0 / Oil - oil burner contact

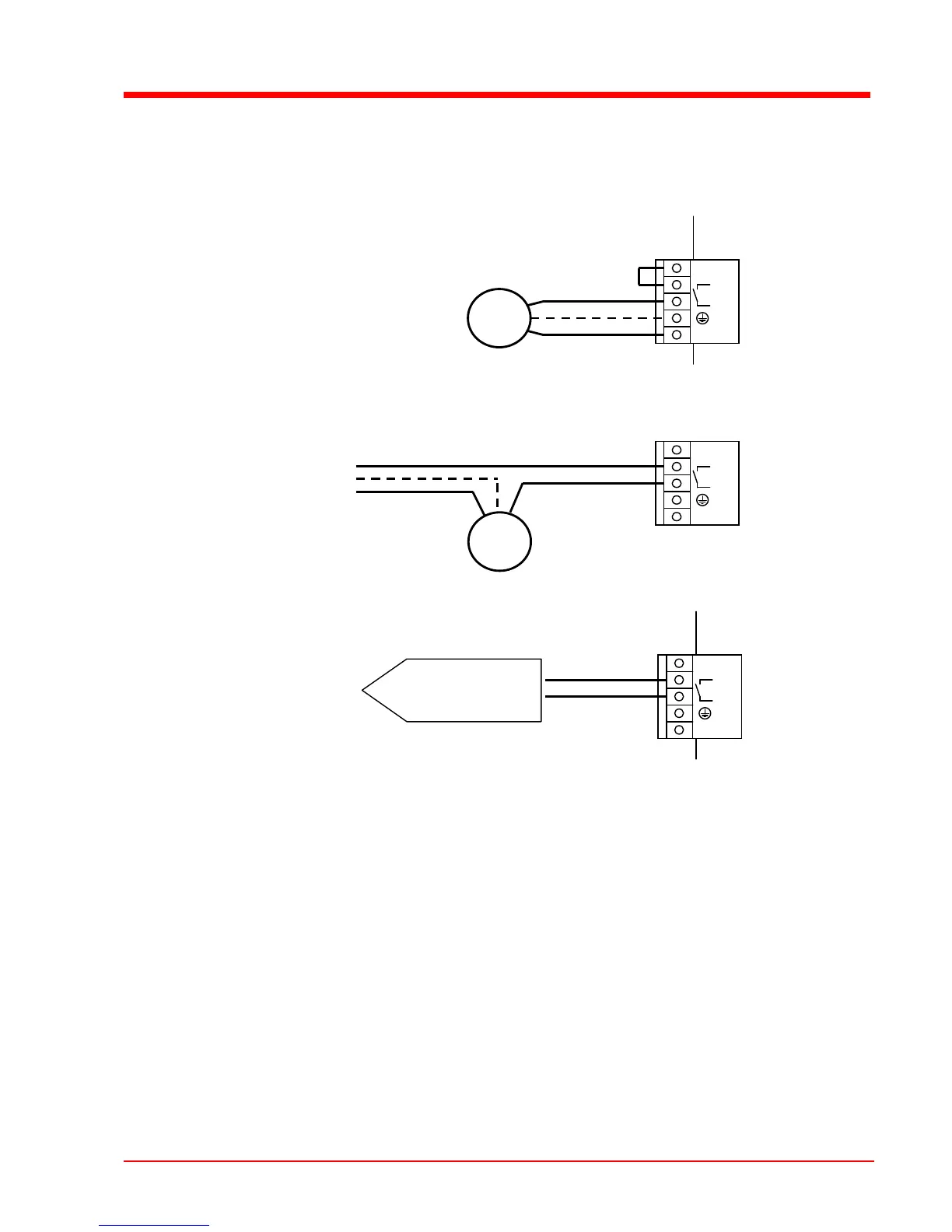

The HCP 0 / oil connection can be used either for heating circuit pump 0
or as an burner relay depending on the system settings.
Connecting a HCP 0 up to 2 Ampere:
Connecting a HCP 0 up to 5 Ampere:
External power supply
Connection as an burner relay:
NOTE
Always set the pumps to the highest power level.
always set the pump to the highest power level.
LV
N
Lambdatronic
P 3100
HCP 0
LV
N
to oil boiler controls:
floating contact for
burner release
Lambdatronic
P 3100
LV
N
Lambdatronic
P 3100
HCP 0
L
P
E
