Fromm P329 M - EXCHANGE OF WEARING PARTS; 9.1 Tensioning Wheel and Grippers

PAGE 15 OF 26 0118 I H -7184
15
P329 M_HA mane.fm
9 EXCHANGE OF WEARING PARTS
Remove always the battery from the tool before starting maintenance works.

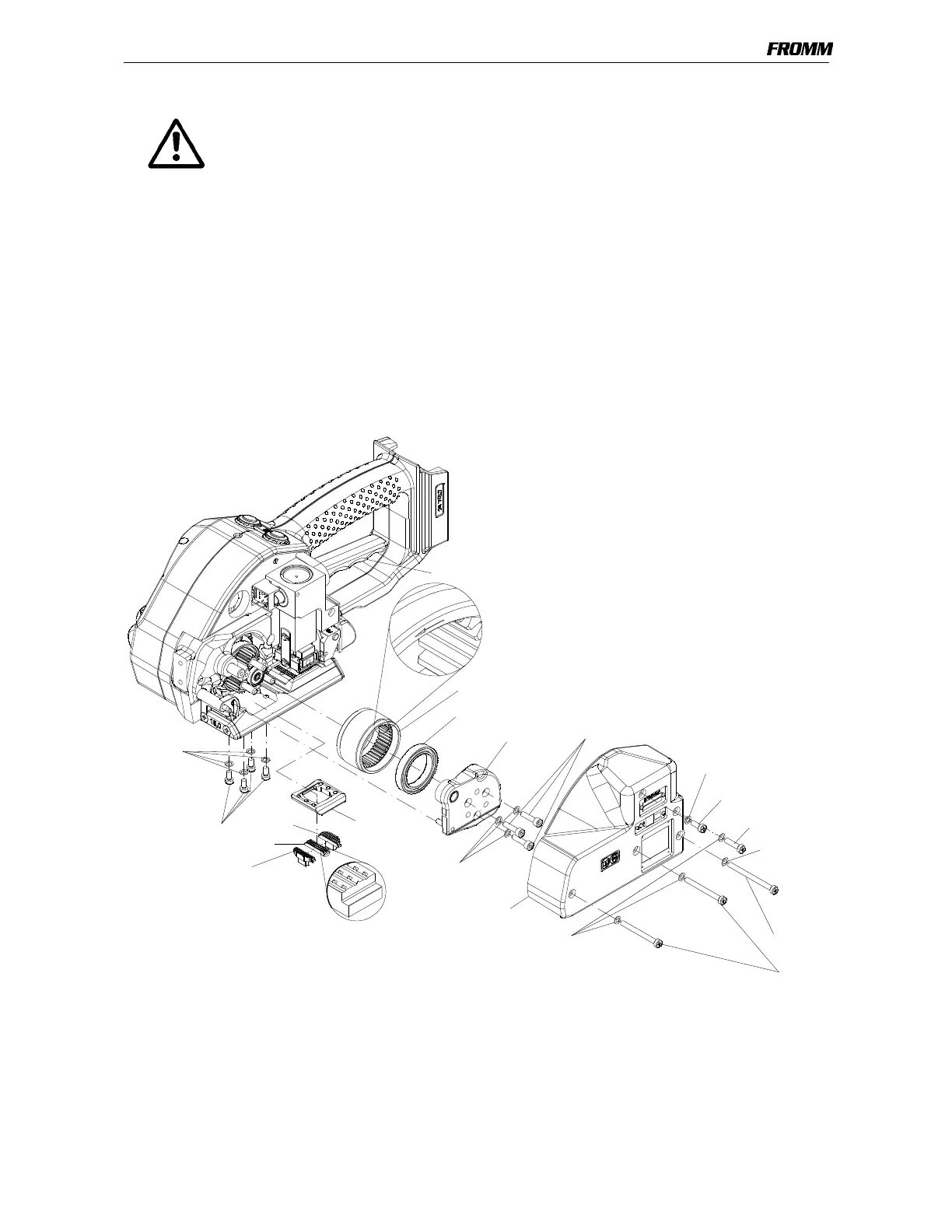

9.1 Exchange of tensioning wheel and grippers
Disassembling
• Unscrew cover P32.0221 and remove it;
• Unscrew end cover P32.0222 and remove it;
• Raise tension wheel P35.3203 by lifting the handle lever P32.8142;
• Remove the tensioning wheel together with the bearing N3.1172 from the tool;
• Unscrew the holder P32.8108 and remove it from the body;
• Remove the grippers (P32.8109, P32.8110, P32.8111) from the body.
Assembling in opposite order.
Assembly advise
• Lubricate the internal toothing of the tensioning wheel with Molykote BR2 plus.
• Observe the position of the tensioning wheel. The direction of rotation of the tensioning wheel is marked at
the front of the tensioning wheel (see drawing).
• Observe the position of the grippers (see drawing).
• Safe the screws N1.1305 with Loctite 222.
N3.1172
 N1.1305
N1.6504
P32.0222
N1.1928
N1.6504
N1.1973
N1.1168
P32.8108
 Molykote BR2 plus
 Loctite 222
P32.0221
P32.8142
N1.1943
N1.6504
N1.6504
N1.6504
P35.3203 
P32.8109
P32.8110
P32.8111
N1.1934
