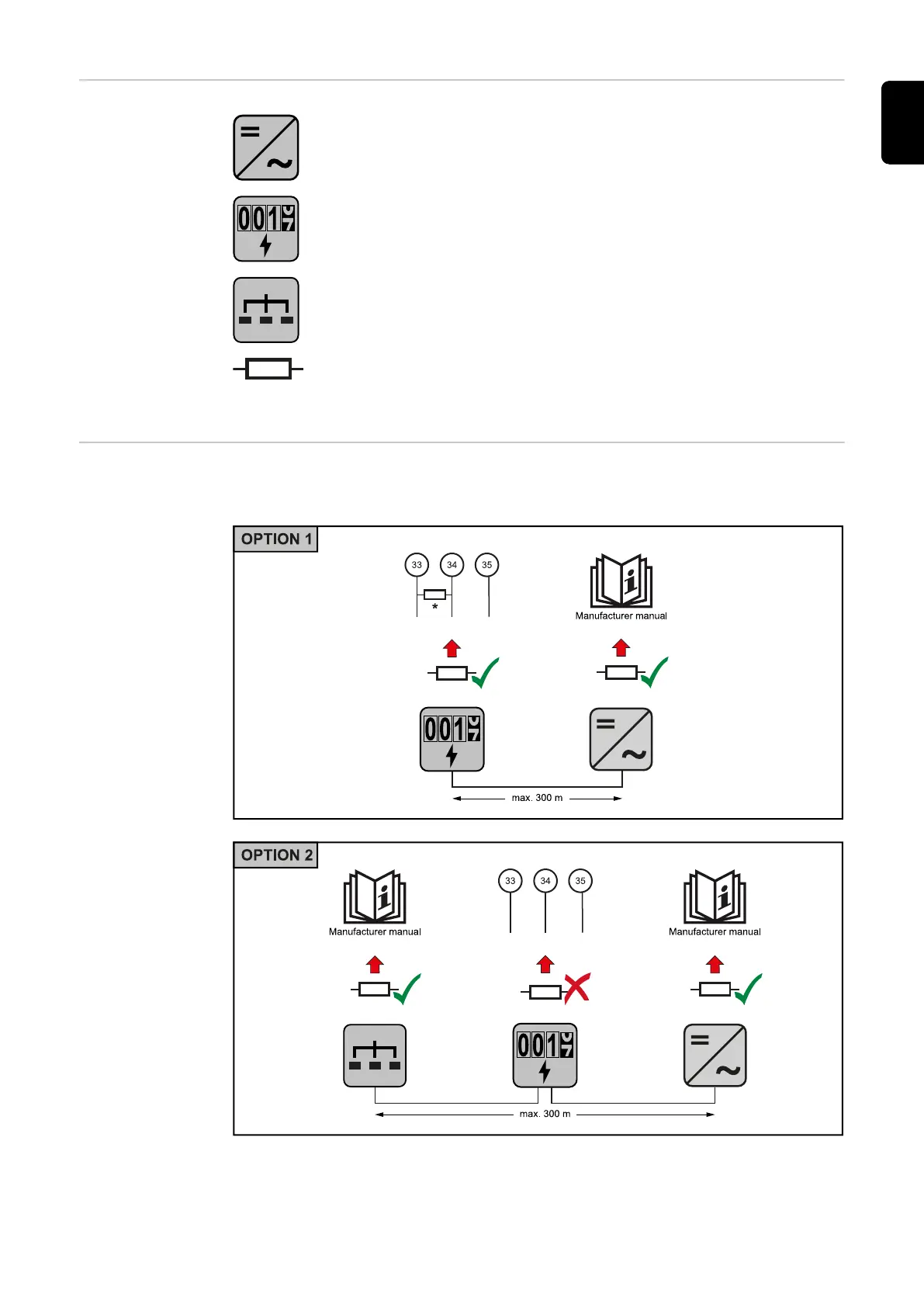

Terminating res-
istors - Explana-
tion of symbols
Inverter in the system
e. g. Fronius Symo
Meter - Fronius Smart Meter
Terminating resistor R 120 Ohm is included in the scope of supply.
Modbus RTU slave
e. g. Fronius Ohmpilot, Fronius Solar Battery, etc.
Terminating resistor
R 120 Ohm
Terminating res-
istors
Due to interference, it is recommended that terminating resistors are used as illustrated
below to ensure proper functioning.
