26
Charging mode
General informa-
tion
Charging mode is used for:
- Charging or conservation charging with the battery either fitted or removed
- Charging while vehicle consumers are switched on
Charging the bat-
tery
NOTE!
Danger due to a faulty battery.
This can result in damage to property.
► Before charging, ensure that the battery to be charged is fully functional.

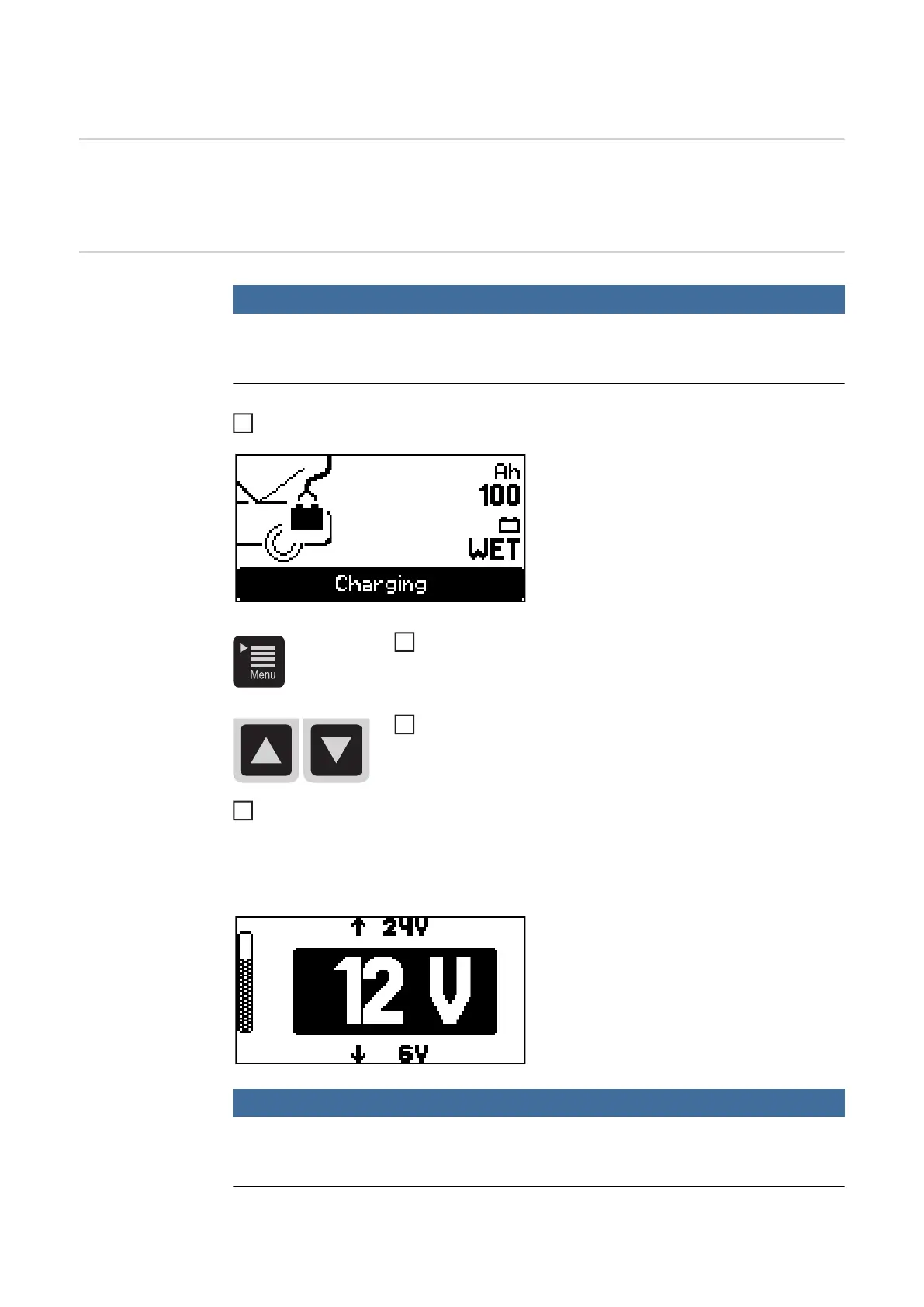

Plug in charger mains plug
Charging mode is automatically started af-
ter the charger is connected to the mains.
Connect the battery, observing the correct polarity. Because the charging terminals
are de-energised, there is no risk of sparks when connecting to the battery, even if the
charger is already connected to the mains supply.
- Connect the red charging lead to the positive pole (+) of the battery
- Connect the black charging lead to the negative pole (-) of the battery
The charger automatically identifies the
battery, e.g. 12 V, and starts the charging
process after 5 seconds.
If the battery voltage is not correctly identi-
fied (e.g. in the event of a deeply dischar-
ged battery), you have 5 seconds to enter
the correct battery voltage, as follows:
NOTE!
Danger if the wrong battery voltage is set.
This can result in damage to property.
► Always ensure that the correct battery voltage is set.
1
Use the Menu key to select the "Ah" or "Battery type" setting.
Use the Up/Down keys to enter the required value (e.g. 100
Ah or "Wet" battery type).
2
3
4
