Fronius 3-Phase Inverters - Field Adjustable Trip
Points in the public grid
12 0 °
12 0 °
12 0 °
208 V
20 8 V
20 8 V
L1
L2L3
=
~
UIL

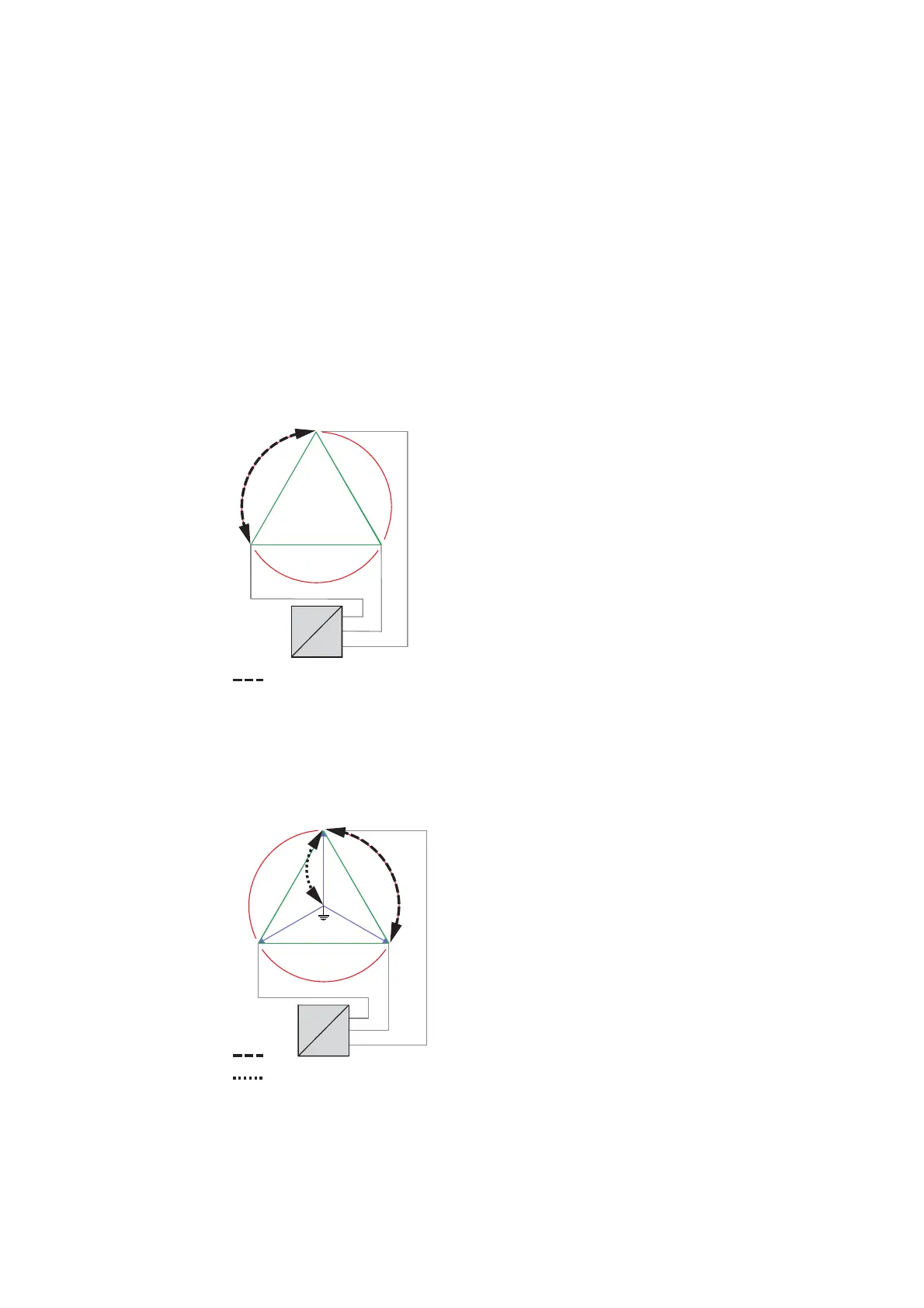

208 V Delta
General Different parameters can be set for the following Fronius 3-phase inver-
ters depending on the available power grid:
- Fronius IG Plus 11.4-3 / 12.0-3
- Fronius IG Plus V 10.0-3 / 11.4-3 / 12.0-3
- Fronius CL 33.3 DELTA / 44.4 DELTA / 55.5 DELTA
- Fronius CL 36.0 WYE 277 / 48.0 WYE 277 / 60.0 WYE 277
208 V Delta:
120 V WYE
Fronius IG Plus 11.4-3
Fronius IG Plus V 10.0-3
Fronius IG Plus V 11.4-3
Fronius CL 33.3 DELTA
Fronius CL 44.4 DELTA
Fronius CL 55.5 DELTA
Adjustable parameters:
-UIL
Max
-UIL
Max
/ UTRIP
Max
-UIL
Min
-UIL
Min
/ UTRIP
Min
- FREQIL
Min
- FREQIL
Min
/ FREQTRIP
Min
-STARTINIT / STARTTIME
120 V
120 V
120 V
12 0 °
12 0 °
120 °
208 V
208 V
208 V
L1
L2
N
L3
=
~
UIL
UNMON
Fronius IG Plus 11.4-3
Fronius IG Plus V 10.0-3
Fronius IG Plus V 11.4-3
Fronius CL 33.3 DELTA
Fronius CL 44.4 DELTA
Fronius CL 55.5 DELTA
Adjustable parameters:
-UIL
Max
-UIL
Max
/ UTRIP
Max
-UIL
Min
-UIL
Min
/ UTRIP
Min
- FREQIL
Min
- FREQIL
Min
/ FREQTRIP
Min
-STARTINIT / STARTTIME
-UNMON
Max
-UNMON
min
